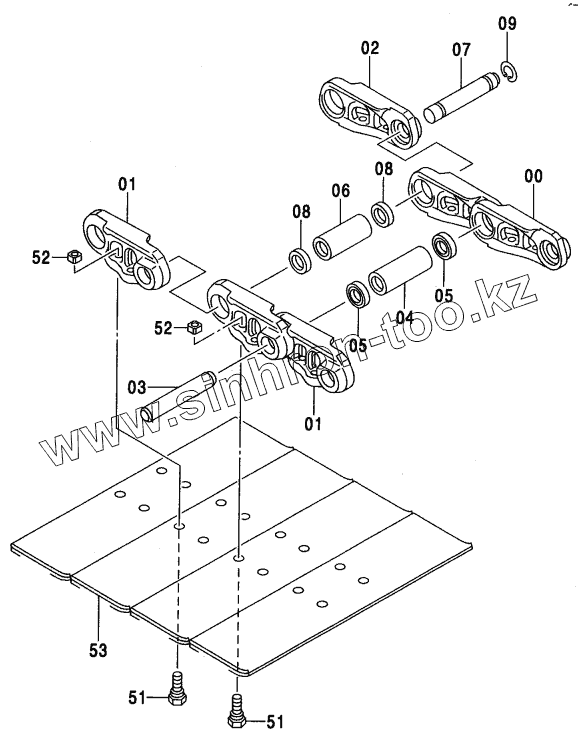

1028975
1
1
2
3
4
5
5
6
7
8
8
9
51
51
51
51
51
52
52
53
53
53
53
53
Позиция на иллюстрации
Заводской номер детали
Название детали
9151315
9151315
TRACK-LINK ASSY
9150823
9150823
TRACK-LINK ASSY
9151317
9151317
TRACK-LINK ASSY
9157148
9157148
TRACK-LINK ASSY
9200212
9200212
TRACK-LINK ASSY
1028975
1028975
TRACK-LINK, В
9147694
9147694
TRACK-LINK ASSY
1
1028976
TRACK-LINK, В
2
4452600
TRACK-LINK, M
3
4314671
PIN
4
4386609
BUSHING
5
4408124
SEAL
6
4345302
BUSHING, MASTER
7
4267743
PIN, MASTER
8
4379310
COLLAR
9
4192666
RING
51
4297905
BOLT, SHOE
51
4350566
BOLT, SHOE
51
4350567
BOLT, SHOE
51
4378549
BOLT, SHOE
52
4247133
NUT
53
2038824
SHOE, GROUSER
53
2037790
SHOE, GROUSER
53
2039110
SHOE, GROUSER
53
1020522
SHOE, TRI ANGLE
53
1023569
SHOE, TRI ANGLE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
