Каталог запасных частей к технике: Hitachi ZX-110. SWING BEARING

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME BOOM FOOT PIN CENTER JOINT SUPPORT (UPPERSTRUCTURE) COUNTERWEIGHT COUNTERWEIGHT (WITH HANGING SEAT) ENGINE ENGINE SUPPORT OIL FILTER PIPING RADIATOR RADIATOR SUPPORT RADIATOR COVER RESERVE TANK AIR CLEANER AIR CLEANER AIR CLEANER SUPPORT AIR CLEANER SUPPORT PRE CLEANER PRE CLEANER MUFFLER FUEL TANK FUEL TANK SUPPORT FUEL PIPING FUEL FEED PUMP FUEL DOUBLE FILTER PUMP DEVICE PUMP DEVICE SUPPORT SWING DEVICE SWING DEVICE SUPPORT OIL TANK HIGH PERFORMANCE FILTER KIT SUCTION PIPING DELIVERY PIPING RETURN PIPING (1) RETURN PIPING (2) DRAIN PIPING MAIN PIPING (1) MAIN PIPING (2) MAIN PIPING (3) MAIN PIPING (4) MAIN PIPING (5) BOOM BOTTOM PIPING SIDE BRANCH PIPING (110,M) SIDE BRANCH PIPING (110,M) SIDE BRANCH PIPING (E) AUTO. ENGINE CONTROL ENGINE CONTROL MOTOR (AUTO. ENGINE CONTROL) ENGINE STOP CABLE (AUTO. ENGINE CONTROL) MANUAL ENGINE CONTROL MANUAL ENGINE CONTROL PARTS CONTROL LEVER (FRONT, SWING) CONTROL LEVER (TRAVEL) LOCK LEVER CONTROL VALVE CONTROL VALVE SUPPORT SOLENOID VALVE PILOT PIPING (A) (110,M) PILOT PIPING (A) (110,M) PILOT PIPING (A) (E) PILOT PIPING (B) PILOT PIPING (C-1) PILOT PIPING (C-2) PILOT PIPING (D-1) PILOT PIPING (D-2) PILOT PIPING (E) PILOT PIPING (F) PILOT PIPING (G) PILOT PIPING (H) PILOT PIPING (I-1) PILOT PIPING (I-2) PILOT PIPING (J) CONSOLE CONSOLE COVER (AUTO. ENGINE CONTROL) CONSOLE COVER (MANUAL ENGINE CONTROL, BLADE) RIGHT COVER RADIO (AM/FM) RADIO LESS PARTS CONTROL UNIT ELECTRIC PARTS (A) ELECTRIC PARTS (B) ELECTRIC PARTS (C) ELECTRIC PARTS (D) (AUTO. ENGINE CONTROL, 110,M) ELECTRIC PARTS (D) (AUTO. ENGINE CONTROL, E) ELECTRIC PARTS (D) (MANUAL ENGINE CONTROL) ELECTRIC PARTS (E) (AUTO. ENGINE CONTROL, 110,M) ELECTRIC PARTS (E) (AUTO. ENGINE CONTROL, E) ELECTRIC PARTS (E) (MANUAL ENGINE CONTROL) SWITCH BOX (AUTO. ENGINE CONTROL, 110,M) SWITCH BOX (AUTO. ENGINE CONTROL, E) SWITCH BOX (MANUAL ENGINE CONTROL) BATTERY SATELLITE DATA COMMUNICATOR PARTS FRONT HEAD LAMP (110,M) FRONT HEAD LAMP (E) FRONT HEAD LAMP (4 LAMP) FRONT HEAD LAMP (2 LAMP WITH SUNSHADE) FRONT HEAD LAMP (4 LAMP WITH SUNSHADE) REAR HEAD LAMP (STD) REAR HEAD LAMP (1 LAMP) REAR HEAD LAMP (2 LAMP) ROTATING BEACON FUSE BOOM LIGHT HARNESS BOOM LIGHT (R) BOOM LIGHT (R) HORN SWING MOTION ALARM TRAVEL MOTION ALARM AIR CONDITIONER (1) AIR-CON. UNIT AIR CONDITIONER (2) AIR CONDITIONER (3) AIR CONDITIONER (4) COMPRESSOR CONDENSER NET HEATER PIPING CAR HEATER HEATER UNIT DUCT (110,M) DUCT (E) REAR BOX (AIR-CON.) REAR BOX (HEATER) REAR BOX (HEATER LESS) REAR BOX (12V POWER SUPPLY) POWER UNIT (12V) CAB GROUP CAB (STD) CAB CAB (WITH GUARD SEAT) CAB (WITH VANDAL HOOK) CAB (OPG) CAB (1) CAB (2) (STD) CAB (2) CAB (3) CAB (3) CAB (4) CAB (5) (STD) CAB (5) CAB (6) (STD) CAB (6) CAB (7) CAB (8) CAB (8) CAB MIRROR POWER WINDOW POWER WINDOW PARTS CAB GUARD (OPG) WINDOW GUARD [EU1, EU2, MEU1, MEU2] WINDOW WASHER SUNSHADE (110,M) SUNSHADE (E) SUNVISOR FLOOR PARTS FLOOR PARTS (HEATER LESS) FLOOR PLATE SEAT (CLOTH) SEAT (VINYL) SUSPENSION SEAT (CLOTH) SUSPENSION SEAT (VINYL) SUSPENSION SEAT (WITH HEATER) AIR-SUSPENSI ON SEAT (WITH HEATER) HEATER SEAT PARTS SEAT BELT (SUSPENSION SEAT) SEAT STAND (110,M) SEAT STAND (E) SEAT STAND (SUSPENSION) SEAT STAND (SUSPENSION) COVER (1) COVER (2) COVER (3) COVER (4) COVER (4) TROPICAL COVER DOOR LOCK (1) DOOR LOCK (2) ENGINE COVER TOOL COVER UNDER COVER TRACK FRAME (110,E) TRACK FRAME (M) TRACK UNDER COVER (M) STEP (M) ADDITIONAL STEP (FOR 500mm WIDE TRACK-LINK) (110, M) ADDITIONAL STEP (FOR 960mm WIDE TRACK-LINK) (M) TRACK GUARD (M) SWING BEARING SWING BEARING PARTS TRAVEL DEVICE (110, E) TRAVEL DEVICE SUPPORT (110,E) TRAVEL DEVICE (M) FRONT IDLER (110, E) FRONT IDLER FRONT IDLER (M) ADJUSTER (110,E) ADJUSTER ADJUSTER (M) UPPER ROLLER (110, E) UPPER ROLLER UPPER ROLLER (M) LOWER ROLLER (110,E) LOWER ROLLER LOWER ROLLER (M) TRACK-LINK VARIOUS (110,E) TRACK-LINK VARIOUS TRACK-LINK VARIOUS TRACK-LINK VARIOUS (M) PAD CRAWLER B500 (SEPARATE-TYPE) (110, E) RUBBER PAD (CITY PAD) CENTER JOINT CENTER JOINT SUPPORT (TRACK) TRAVEL PIPING (110,E) TRAVEL PIPING (M) TRAVEL MOTOR COVER (110,E) TRAVEL MOTOR COVER (M) STD. BOOM STD. ARM 2.26M SHORT ARM 1.95M LONG ARM 2.81M LONG ARM PARTS LINK A LINK В FRONT PIPING BOOM CYLINDER (R) BOOM CYLINDER (L) ARM CYLINDER BUCKET CYLINDER LUBRICATE PIPING AUTO. LUBRICATE DEVICE AUTO. LUBRICATE PIPING (BOOM) AUTO. LUBRICATE PIPING (2.26M ARM) AUTO. LUBRICATE PIPING (2.81M ARM) BUCKET 0.19 (JIS 94) BUCKET 0.3 (JIS 94) BUCKET 0.4 (JIS 94) BUCKET 0.45 (JIS 94) BUCKET 0.5 (JIS 94) К BUCKET 0.5 (JIS 94) H BUCKET 0.5 (JIS 94) BUCKET 0.59 (JIS 94) SIDE-PIN TYPE BUCKET 0.5 (JIS 94) ONE-POINT RIPPER SLOPE-FINISHING BLADE V-Type BUCKET 0.35 (JIS 94) HOSE RUPTURE VALVE PIPING (B00M) HOSE RUPTURE VALVE PIPING (BOOM) HOSE RUPTURE VALVE PIPING (BOOM) HOSE RUPTURE VALVE PIPING (ARM) HOSE RUPTURE VALVE PIPING (ARM) OVER LOAD ALARM DEVICE OVER LOAD ALARM DEVICES OFFSET BOOM (1) OFFSET BOOM (2) OFFSET ARM 1.95M MAIN PIPING (OFFSET BOOM) BOOM BOTTOM PIPING (OFFSET BOOM) FRONT PIPING (OFFSET BOOM) FRONT PIPING (OFFSET BOOM) ARM CYL. (OFFSET BOOM) OFFSET CYL. LUBRICATE PIPING (OFFSET BOOM) RETURN PIPING (BLADE) MAIN PIPING (BLADE) MAIN PIPING (BLADE) TRACK FRAME (BLADE) CENTER JOINT (BLADE) CENTER JOINT SUPPORT (BLADE) (TRACK) BLADE (BOLT ON CUTTING-EDGE) BLADE PIPING BLADE CONTROL PILOT PIPING (BLADE) PILOT PIPING (BLADE) PILOT PIPING (BLADE) CONTROL PEDAL (BREAKER & CRUSHER) PILOT PIPING (BREAKER & CRUSHER) MAIN PIPING (BREAKER & CRUSHER) BOOM PIPING (BREAKER & CRUSHER) ARM PIPING (BREAKER & CRUSHER) (1.96M ARM) ARM PIPING (BREAKER & CRUSHER) (2.26M ARM) ARM PIPING (BREAKER & CRUSHER) (2.81M ARM) HSB BREAKER PIPING HSB COMMON PIPING (BREAKER & CRUSHER) PILOT PIPING (FLOW RATE SELECTOR) PILOT PIPING (FLOW RATE SELECTOR) ELECTRIC PARTS (FLOW RATE SELECTOR) ELECTRIC TYPE CONTROL PARTS ADD. GEAR PUMP PIPING (30 LITER) QUICK HITCH PIPING (MONO BOOM) QUICK HITCH PIPING (1.96M ARM) QUICK HITCH PIPING (2.26M ARM) QUICK HITCH PIPING (2.81M ARM) ASSIST PIPING (MONO BOOM) ASSIST PIPING (1.96M ARM) ASSIST PIPING (2.26M ARM) ASSIST PIPING (2.81M ARM) QUICKHITCH / ASSIST COMMON PARTS (MONO BOOM) CLAMSHELL PIPING (1.96MARM) CLAMSHELL PIPING (2.26M ARM) CLAMSHELL PIPING (2.81M ARM) 2 WAY MULTI LEVER (STD) 2 WAY MULTI LEVER PIPING (STD) 4 WAY MULTI LEVER (STD) 4 WAY MULTI LEVER PIPING (STD) TOOLS

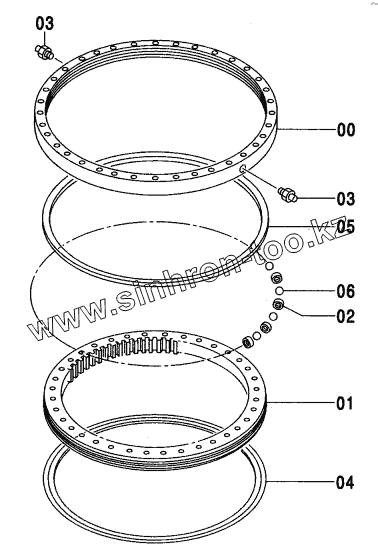

RACE

1

2

3

3

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
9184497	9184497		SWING, CIRCLE
RACE	RACE		RACE
1	RACE		RACE
2	4127708		SUPPORT
3	J75481		FITTING, GREASE
4	4289757		SEAL
5	4315493		SEAL
6	4428919		BALL

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
