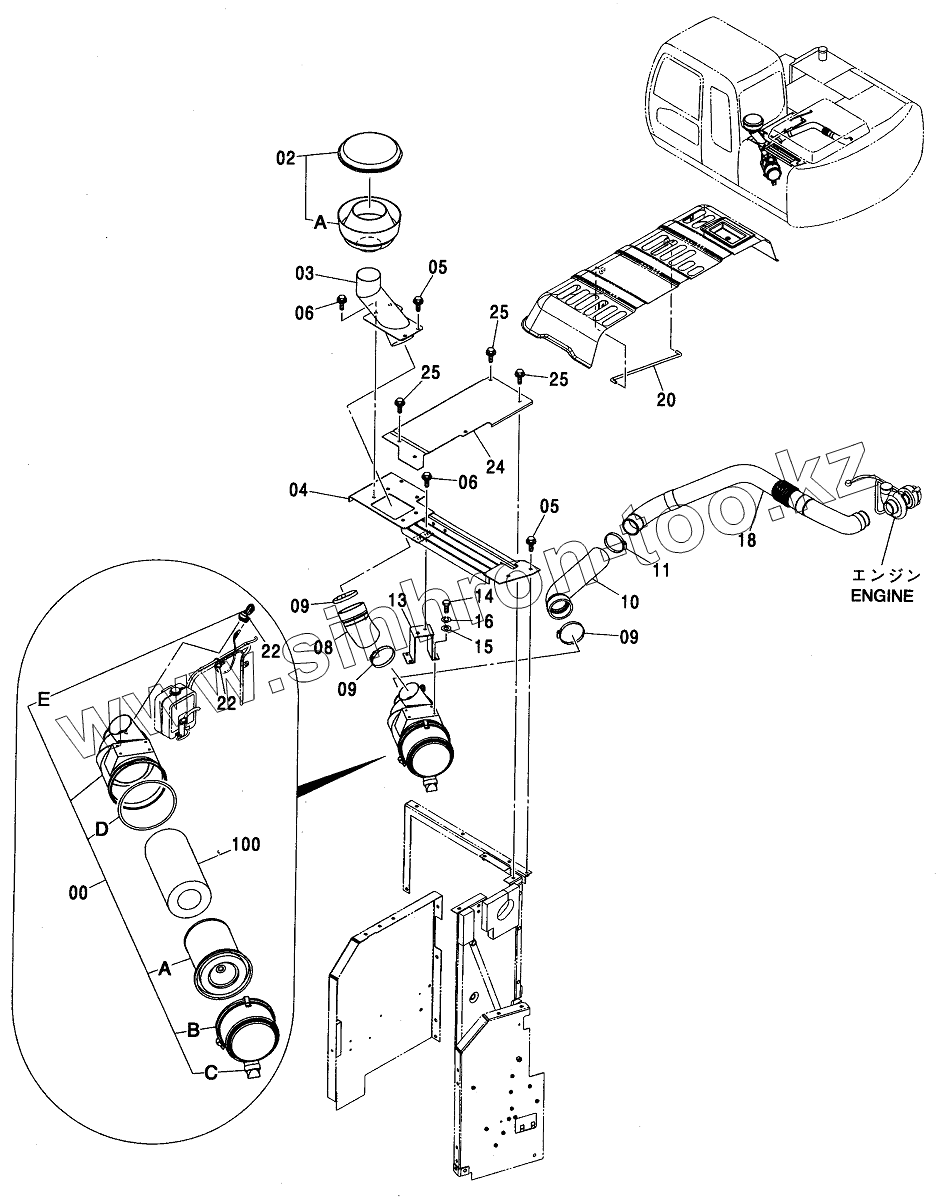

Каталог запасных частей к технике: Hitachi ZX-110. PRE CLEANER
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
EX-100-2 (2000)
EX-100-3 (2008)
EX-100WD (2008)
EX-120 (2008)
EX-120-2 (2008)
EX-160WD (2008)
EX-200 (2008)
EX-200-2 (2008)
EX-200-3
EX-220 (2008)
EX-220-2 (2008)
EX-270 (2008)
EX-300 (2008)
EX-300-2 (2000)
EX-400 Type A (2006)
EX-400 Type B (2006)
EX-60 (2003)
EX-60-2 (2000)
EX-60-3 (2008)
EX-70 (2017)
LX-110-7 (2008)
LX-130-7 (2008)
LX-150-2 (2008)
LX-160-7 (2008)
LX190-7/LX230-7 (2008)
Zaxis 190-3
ZAXIS 200-5A (2018)
ZAXIS 200LC-5A (2018)
ZAXIS 210H-5A (2018)
ZAXIS 210K-5A (2018)
ZAXIS 210LCH-5A (2018)
ZAXIS 210LCK-5A (2018)
ZAXIS 330-5G (2017)
ZAXIS 350H-5G (2017)
ZAXIS 48U-5A (2020)
ZAXIS 850-3
ZAXIS 870H-3
ZX-110 (2008)
ZX-160W (2008)
ZX-200 (2008)
ZX-230 (2008)
ZX-25 (2008)
ZX-270 (2008)
ZX-330 (2010)
ZX-330-3 (Part № PIHH-I-3) (2008)
ZX-330-3 (Part № PIHH-I-5) (2013)
ZX-330-3G (2008)
ZX-400R-3 (2010)
ZX-450 (2006)
ZX-600 (2007)
Компоненты EX-100-2 (2000)
Компоненты EX-100WD (2008)
Компоненты EX-120 (2008)
Компоненты EX-120-2 (2008)
Компоненты EX-160WD (2008)
Компоненты EX-200 (2008)
Компоненты EX-200-2 (2008)
Компоненты EX-200-3(LC, H)
Компоненты EX-220 (2008)
Компоненты EX-220-2 (2008)
Компоненты EX-270 (2008)
Компоненты EX-300 (2008)
Компоненты EX-300-2 (2000)
Компоненты EX-400 Type A (2006)
Компоненты EX-400 Type B (2006)
Компоненты EX-60 (2003)
Компоненты EX-60-2 (2000)
Компоненты EX-60-3 (2008)
Компоненты ZAXIS 450, 470, 500, 520 (2010)
Компоненты ZX-110 (2008)
Компоненты ZX-120 (130) (2008)
Компоненты ZX-160W (2008)
Компоненты ZX-200 (2008)
Компоненты ZX-230 (2008)
Компоненты ZX-270 (2008)
Компоненты ZX-330 (2008)
Компоненты ZX-450 (2006)
Схема
>
Не выбрано
FRAME
BOOM FOOT PIN
CENTER JOINT SUPPORT (UPPERSTRUCTURE)
COUNTERWEIGHT
COUNTERWEIGHT (WITH HANGING SEAT)
ENGINE
ENGINE SUPPORT
OIL FILTER PIPING
RADIATOR
RADIATOR SUPPORT
RADIATOR COVER
RESERVE TANK
AIR CLEANER
AIR CLEANER
AIR CLEANER SUPPORT
AIR CLEANER SUPPORT
PRE CLEANER
PRE CLEANER
MUFFLER
FUEL TANK
FUEL TANK SUPPORT
FUEL PIPING
FUEL FEED PUMP
FUEL DOUBLE FILTER
PUMP DEVICE
PUMP DEVICE SUPPORT
SWING DEVICE
SWING DEVICE SUPPORT
OIL TANK
HIGH PERFORMANCE FILTER KIT
SUCTION PIPING
DELIVERY PIPING
RETURN PIPING (1)
RETURN PIPING (2)
DRAIN PIPING
MAIN PIPING (1)
MAIN PIPING (2)
MAIN PIPING (3)
MAIN PIPING (4)
MAIN PIPING (5)
BOOM BOTTOM PIPING
SIDE BRANCH PIPING (110,M)
SIDE BRANCH PIPING (110,M)
SIDE BRANCH PIPING (E)
AUTO. ENGINE CONTROL
ENGINE CONTROL MOTOR (AUTO. ENGINE CONTROL)
ENGINE STOP CABLE (AUTO. ENGINE CONTROL)
MANUAL ENGINE CONTROL
MANUAL ENGINE CONTROL PARTS
CONTROL LEVER (FRONT, SWING)
CONTROL LEVER (TRAVEL)
LOCK LEVER
CONTROL VALVE
CONTROL VALVE SUPPORT
SOLENOID VALVE
PILOT PIPING (A) (110,M)
PILOT PIPING (A) (110,M)
PILOT PIPING (A) (E)
PILOT PIPING (B)
PILOT PIPING (C-1)
PILOT PIPING (C-2)
PILOT PIPING (D-1)
PILOT PIPING (D-2)
PILOT PIPING (E)
PILOT PIPING (F)
PILOT PIPING (G)
PILOT PIPING (H)
PILOT PIPING (I-1)
PILOT PIPING (I-2)
PILOT PIPING (J)
CONSOLE
CONSOLE COVER (AUTO. ENGINE CONTROL)
CONSOLE COVER (MANUAL ENGINE CONTROL, BLADE)
RIGHT COVER
RADIO (AM/FM)
RADIO LESS PARTS
CONTROL UNIT
ELECTRIC PARTS (A)
ELECTRIC PARTS (B)
ELECTRIC PARTS (C)
ELECTRIC PARTS (D) (AUTO. ENGINE CONTROL, 110,M)
ELECTRIC PARTS (D) (AUTO. ENGINE CONTROL, E)
ELECTRIC PARTS (D) (MANUAL ENGINE CONTROL)
ELECTRIC PARTS (E) (AUTO. ENGINE CONTROL, 110,M)
ELECTRIC PARTS (E) (AUTO. ENGINE CONTROL, E)
ELECTRIC PARTS (E) (MANUAL ENGINE CONTROL)
SWITCH BOX (AUTO. ENGINE CONTROL, 110,M)
SWITCH BOX (AUTO. ENGINE CONTROL, E)
SWITCH BOX (MANUAL ENGINE CONTROL)
BATTERY
SATELLITE DATA COMMUNICATOR PARTS
FRONT HEAD LAMP (110,M)
FRONT HEAD LAMP (E)
FRONT HEAD LAMP (4 LAMP)
FRONT HEAD LAMP (2 LAMP WITH SUNSHADE)
FRONT HEAD LAMP (4 LAMP WITH SUNSHADE)
REAR HEAD LAMP (STD)
REAR HEAD LAMP (1 LAMP)
REAR HEAD LAMP (2 LAMP)
ROTATING BEACON
FUSE
BOOM LIGHT HARNESS
BOOM LIGHT (R)
BOOM LIGHT (R)
HORN
SWING MOTION ALARM
TRAVEL MOTION ALARM
AIR CONDITIONER (1)
AIR-CON. UNIT
AIR CONDITIONER (2)
AIR CONDITIONER (3)
AIR CONDITIONER (4)
COMPRESSOR
CONDENSER NET
HEATER PIPING
CAR HEATER
HEATER UNIT
DUCT (110,M)
DUCT (E)
REAR BOX (AIR-CON.)
REAR BOX (HEATER)
REAR BOX (HEATER LESS)
REAR BOX (12V POWER SUPPLY)
POWER UNIT (12V)
CAB GROUP
CAB (STD)
CAB
CAB (WITH GUARD SEAT)
CAB (WITH VANDAL HOOK)
CAB (OPG)
CAB (1)
CAB (2) (STD)
CAB (2)
CAB (3)
CAB (3)
CAB (4)
CAB (5) (STD)
CAB (5)
CAB (6) (STD)
CAB (6)
CAB (7)
CAB (8)
CAB (8)
CAB MIRROR
POWER WINDOW
POWER WINDOW PARTS
CAB GUARD (OPG)
WINDOW GUARD [EU1, EU2, MEU1, MEU2]
WINDOW WASHER
SUNSHADE (110,M)
SUNSHADE (E)
SUNVISOR
FLOOR PARTS
FLOOR PARTS (HEATER LESS)
FLOOR PLATE
SEAT (CLOTH)
SEAT (VINYL)
SUSPENSION SEAT (CLOTH)
SUSPENSION SEAT (VINYL)
SUSPENSION SEAT (WITH HEATER)
AIR-SUSPENSI ON SEAT (WITH HEATER)
HEATER SEAT PARTS
SEAT BELT (SUSPENSION SEAT)
SEAT STAND (110,M)
SEAT STAND (E)
SEAT STAND (SUSPENSION)
SEAT STAND (SUSPENSION)
COVER (1)
COVER (2)
COVER (3)
COVER (4)
COVER (4)
TROPICAL COVER
DOOR LOCK (1)
DOOR LOCK (2)
ENGINE COVER
TOOL COVER
UNDER COVER
TRACK FRAME (110,E)
TRACK FRAME (M)
TRACK UNDER COVER (M)
STEP (M)
ADDITIONAL STEP (FOR 500mm WIDE TRACK-LINK) (110, M)
ADDITIONAL STEP (FOR 960mm WIDE TRACK-LINK) (M)
TRACK GUARD (M)
SWING BEARING
SWING BEARING PARTS
TRAVEL DEVICE (110, E)
TRAVEL DEVICE SUPPORT (110,E)
TRAVEL DEVICE (M)
FRONT IDLER (110, E)
FRONT IDLER
FRONT IDLER (M)
ADJUSTER (110,E)
ADJUSTER
ADJUSTER (M)
UPPER ROLLER (110, E)
UPPER ROLLER
UPPER ROLLER (M)
LOWER ROLLER (110,E)
LOWER ROLLER
LOWER ROLLER (M)
TRACK-LINK VARIOUS (110,E)
TRACK-LINK VARIOUS
TRACK-LINK VARIOUS
TRACK-LINK VARIOUS (M)
PAD CRAWLER B500 (SEPARATE-TYPE) (110, E)
RUBBER PAD (CITY PAD)
CENTER JOINT
CENTER JOINT SUPPORT (TRACK)
TRAVEL PIPING (110,E)
TRAVEL PIPING (M)
TRAVEL MOTOR COVER (110,E)
TRAVEL MOTOR COVER (M)
STD. BOOM
STD. ARM 2.26M
SHORT ARM 1.95M
LONG ARM 2.81M
LONG ARM PARTS
LINK A
LINK В
FRONT PIPING
BOOM CYLINDER (R)
BOOM CYLINDER (L)
ARM CYLINDER
BUCKET CYLINDER
LUBRICATE PIPING
AUTO. LUBRICATE DEVICE
AUTO. LUBRICATE PIPING (BOOM)
AUTO. LUBRICATE PIPING (2.26M ARM)
AUTO. LUBRICATE PIPING (2.81M ARM)
BUCKET 0.19 (JIS 94)
BUCKET 0.3 (JIS 94)
BUCKET 0.4 (JIS 94)
BUCKET 0.45 (JIS 94)
BUCKET 0.5 (JIS 94)
К BUCKET 0.5 (JIS 94)
H BUCKET 0.5 (JIS 94)
BUCKET 0.59 (JIS 94)
SIDE-PIN TYPE BUCKET 0.5 (JIS 94)
ONE-POINT RIPPER
SLOPE-FINISHING BLADE
V-Type BUCKET 0.35 (JIS 94)
HOSE RUPTURE VALVE PIPING (B00M)
HOSE RUPTURE VALVE PIPING (BOOM)
HOSE RUPTURE VALVE PIPING (BOOM)
HOSE RUPTURE VALVE PIPING (ARM)
HOSE RUPTURE VALVE PIPING (ARM)
OVER LOAD ALARM DEVICE
OVER LOAD ALARM DEVICES
OFFSET BOOM (1)
OFFSET BOOM (2)
OFFSET ARM 1.95M
MAIN PIPING (OFFSET BOOM)
BOOM BOTTOM PIPING (OFFSET BOOM)
FRONT PIPING (OFFSET BOOM)
FRONT PIPING (OFFSET BOOM)
ARM CYL. (OFFSET BOOM)
OFFSET CYL.
LUBRICATE PIPING (OFFSET BOOM)
RETURN PIPING (BLADE)
MAIN PIPING (BLADE)
MAIN PIPING (BLADE)
TRACK FRAME (BLADE)
CENTER JOINT (BLADE)
CENTER JOINT SUPPORT (BLADE) (TRACK)
BLADE (BOLT ON CUTTING-EDGE)
BLADE PIPING
BLADE CONTROL
PILOT PIPING (BLADE)
PILOT PIPING (BLADE)
PILOT PIPING (BLADE)
CONTROL PEDAL (BREAKER & CRUSHER)
PILOT PIPING (BREAKER & CRUSHER)
MAIN PIPING (BREAKER & CRUSHER)
BOOM PIPING (BREAKER & CRUSHER)
ARM PIPING (BREAKER & CRUSHER) (1.96M ARM)
ARM PIPING (BREAKER & CRUSHER) (2.26M ARM)
ARM PIPING (BREAKER & CRUSHER) (2.81M ARM)
HSB BREAKER PIPING
HSB COMMON PIPING (BREAKER & CRUSHER)
PILOT PIPING (FLOW RATE SELECTOR)
PILOT PIPING (FLOW RATE SELECTOR)
ELECTRIC PARTS (FLOW RATE SELECTOR)
ELECTRIC TYPE CONTROL PARTS
ADD. GEAR PUMP PIPING (30 LITER)
QUICK HITCH PIPING (MONO BOOM)
QUICK HITCH PIPING (1.96M ARM)
QUICK HITCH PIPING (2.26M ARM)
QUICK HITCH PIPING (2.81M ARM)
ASSIST PIPING (MONO BOOM)
ASSIST PIPING (1.96M ARM)
ASSIST PIPING (2.26M ARM)
ASSIST PIPING (2.81M ARM)
QUICKHITCH / ASSIST COMMON PARTS (MONO BOOM)
CLAMSHELL PIPING (1.96MARM)
CLAMSHELL PIPING (2.26M ARM)
CLAMSHELL PIPING (2.81M ARM)
2 WAY MULTI LEVER (STD)
2 WAY MULTI LEVER PIPING (STD)
4 WAY MULTI LEVER (STD)
4 WAY MULTI LEVER PIPING (STD)
TOOLS
00
00A
00B
00C
00D
00E
02
02A
03
04
05
05
05A
05B
06
06
06A
06B
08
09
09
09
10
11
13
14
15
16
18
20
22
22
24
25
25
25
25A
25A
25A
25B
25B
25B
100
Позиция на иллюстрации
Заводской номер детали
Название детали
00
4485408
CLEANER, AIR ASSY
00A
4486002
ELEMENT
00B
4486017
COVER
00C
4486015
VALVE
00D
4486019
GASKET
00E
4419601
INDICATOR
02
4505403
CLEANER, PRE
02A
4045174
DUST-COLLECTOR
03
8089810
PIPE
04
7043267
COVER
05
J271025
BOLT, SEMS
05A
J901025
BOLT
05B
J222010
WASHER
06
J271030
BOLT, SEMS
06A
J901030
BOLT
06B
J222010
WASHER
08
4482253
HOSE, AIR
09
4507397
CLAMP, HOSE
10
2048626
HOSE, AIR
11
4503469
CLAMP, HOSE
13
8089811
BRACKET
14
J900820
BOLT
15
А590108
WASHER, PLANE
16
А590908
WASHER, SPRING
18
4485409
DUCT, AIR
20
3089856
STAY
22
4055311
CLIP, BAND
24
3097024
COVER
25
J271030
BOLT, SEMS
25A
J901030
BOLT
25B
J222010
WASHER
100
4486014
ELEMENT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
