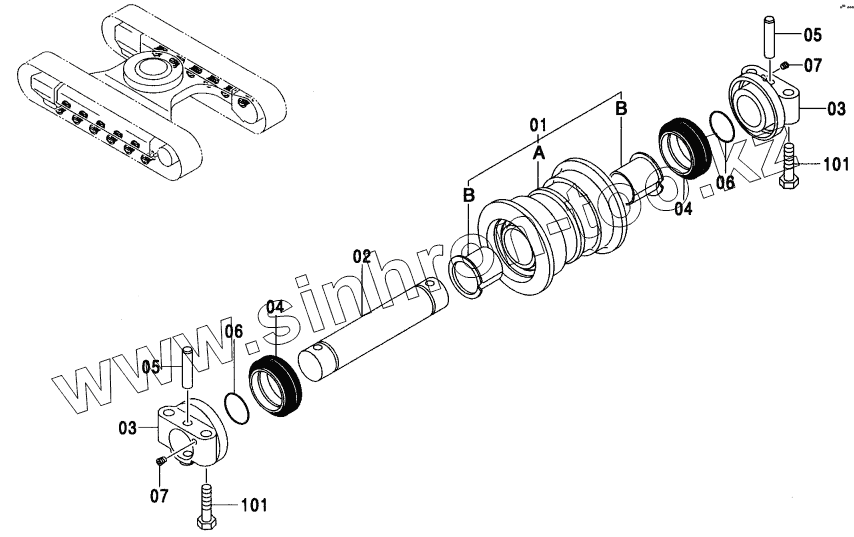

9184516
7039373
3083450
3083450
1
2
3
3
4
4
5
5
6
6
7
7
101
101
Позиция на иллюстрации
Заводской номер детали
Название детали
9184516
9184516
ROLLER, LOWER ASSY
7039373
7039373
ROLLER
3083450
3083450
BUSHING
1
9195202
ROLLER ASSY
2
3046945
AXLE
3
2036934
COLLAR
4
4317586
SEAL, GROUP
5
4123162
PIN
6
А810060
O-RING
7
4315607
PLUG
101
4331851
BOLT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
