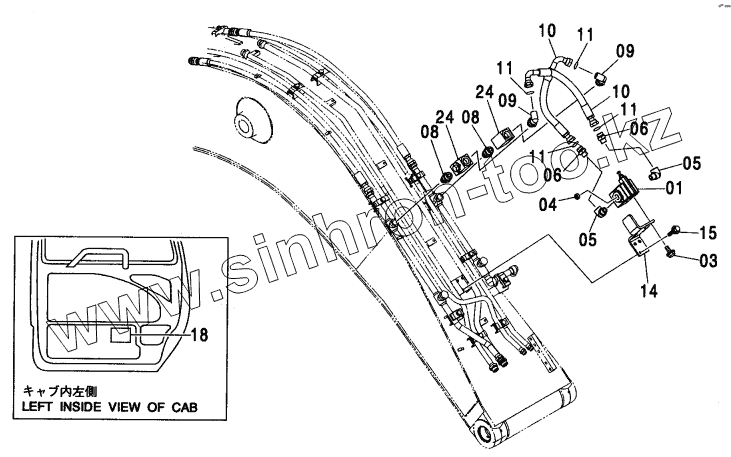

HSB COMMON PIPING (BREAKER & CRUSHER)
PILOT PIPING (FLOW RATE SELECTOR)
PILOT PIPING (FLOW RATE SELECTOR)
ELECTRIC PARTS (FLOW RATE SELECTOR)
ELECTRIC TYPE CONTROL PARTS
ADD. GEAR PUMP PIPING (30 LITER)
QUICK HITCH PIPING (MONO BOOM)
QUICK HITCH PIPING (1.96M ARM)
QUICK HITCH PIPING (2.26M ARM)
QUICK HITCH PIPING (2.81M ARM)
ASSIST PIPING (MONO BOOM)
ASSIST PIPING (1.96M ARM)
ASSIST PIPING (2.26M ARM)
ASSIST PIPING (2.81M ARM)
QUICKHITCH / ASSIST COMMON PARTS (MONO BOOM)
CLAMSHELL PIPING (1.96MARM)
CLAMSHELL PIPING (2.26M ARM)
CLAMSHELL PIPING (2.81M ARM)
2 WAY MULTI LEVER (STD)
2 WAY MULTI LEVER PIPING (STD)
4 WAY MULTI LEVER (STD)
4 WAY MULTI LEVER PIPING (STD)
TOOLS
01
03
03
04
05
05
06
06
08
08
09
09
10
10
11
11
11
11
14
15
15
18
18
18
18
18
18
18
18
18
18
18
18
24
24
Позиция на иллюстрации
Заводской номер детали
Название детали
01
4209158
VALVE, RELIEF
03
J010820
BOLT, SEMS
03
J260820
BOLT, SEMS
04
94-2014
PLUG
05
94-0633
ELBOW, S
06
4208967
ADAPTER, S
08
4291797
ADAPTER, S
08A
4506424
O-RING
08B
4506429
O-RING
09
4202113
ELBOW, S
09A
4506429
O-RING
10
4208454
HOSE
11
4187308
O-RING
14
3091291
BRACKET
15
J021230
BOLT, SEMS
15
J271230
BOLT, SEMS
18
4301977
NAME-PLATE
18
4301979
NAME-PLATE
18
3094251
NAME-PLATE
18
3094254
NAME-PLATE
18
3094252
NAME-PLATE
18
3094253
NAME-PLATE
18
3095518
NAME-PLATE
18
3095516
NAME-PLATE
18
3094255
NAME-PLATE
18
4330058
NAME-PLATE
18
3094256
NAME-PLATE
18
3095520
NAME-PLATE
24
4432055
VALVE, STOP
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
