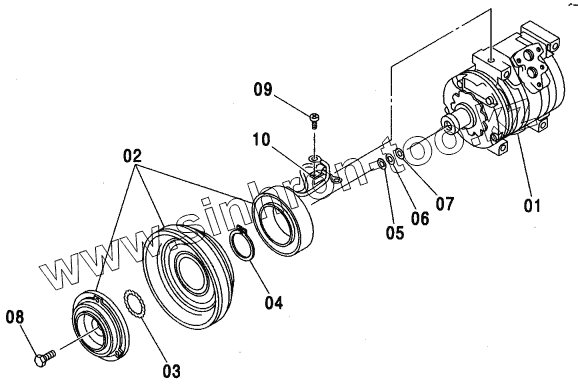

4431081
1
2
3
4
5
6
7
8
9
10
Позиция на иллюстрации
Заводской номер детали
Название детали
4431081
4431081
COMPRESSOR
1
4469049
COMPRESSOR
2
4469051
CLUTCH
3
4475230
RING
4
4475236
RING
5
4475237
WASHER
6
4475242
WASHER
7
4475243
WASHER
8
4475244
BOLT
9
4475245
SCREW
10
4475246
CLIP
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
