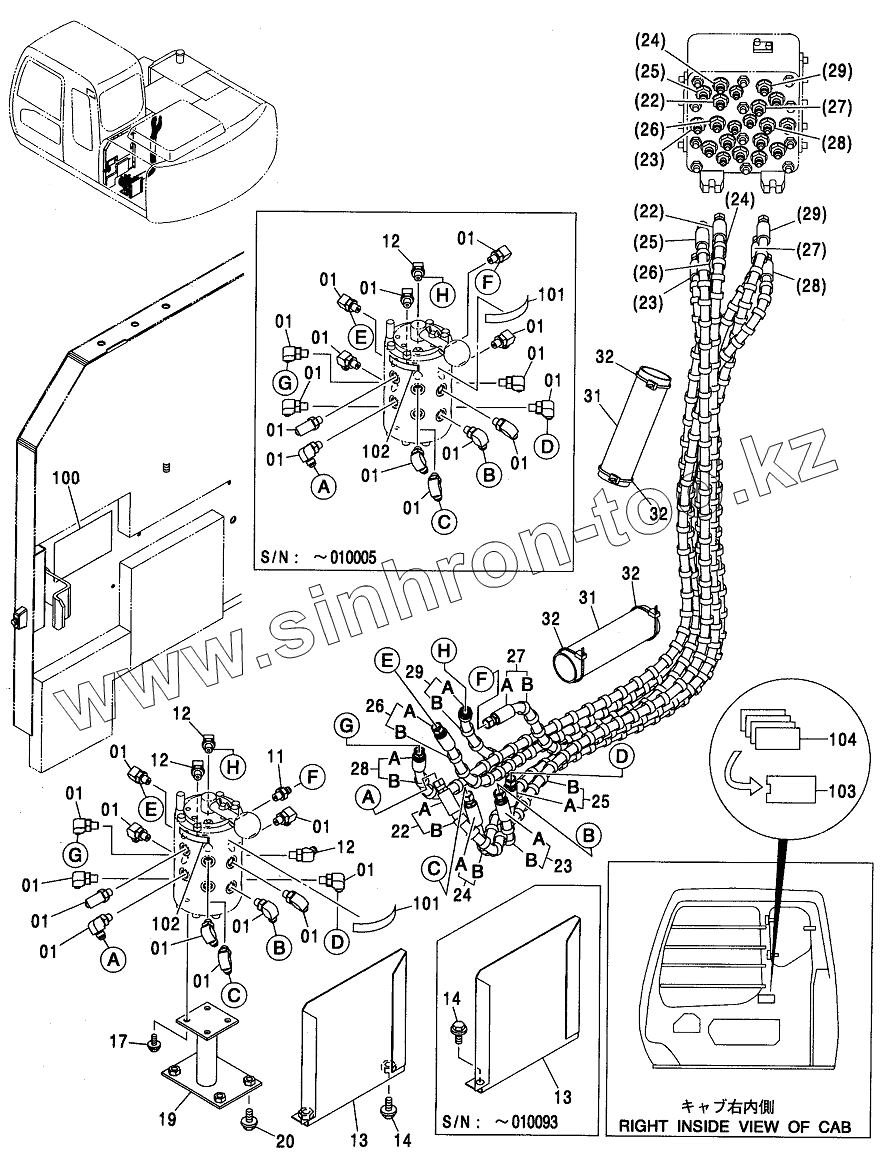

Каталог запасных частей к технике: Hitachi ZX-110. 4 WAY MULTI LEVER PIPING (STD)
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
01A
11
11A
12
12
12
12
12
12A
12A
12A
13
13
13
14
14
14
17
17
19
20
20
22
22
22
22A
22A
22B
23
23
23
23A
23B
24
24
24
24A
24B
25
25
25
25A
25B
26
26
26
26A
26B
27
27
27
27A
27B
28
28
28
28A
28B
29
29
29
29A
29B
31
31
32
32
32
32
100
101
101
102
102
103
104
104
104
104
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | А852323 | ELBOW, S | |
| 01 | А852323 | ELBOW, S | |
| 01A | 957366 | O-RING | |
| 11 | А852123 | ADAPTER, S | |
| 11A | 957366 | O-RING | |
| 12 | А852223 | ELBOW, S | |
| 12 | А852223 | ELBOW, S | |
| 12A | 957366 | O-RING | |
| 13 | 3089991 | COVER | |
| 13 | 8084773 | COVER | |
| 14 | J021025 | BOLT, SEMS | |
| 14 | J271025 | BOLT, SEMS | |
| 17 | J020820 | BOLT, SEMS | |
| 17 | J260820 | BOLT, SEMS | |
| 19 | 8082598 | BRACKET | |
| 20 | J021025 | BOLT, SEMS | |
| 20 | J271025 | BOLT, SEMS | |
| 22 | 9196551 | HOSE ASSY | |
| 22A | 4447633 | HOSE | |
| 22B | 4327293 | PROTECTOR | |
| 23 | 9196552 | HOSE ASSY | |
| 23A | 4447634 | HOSE | |
| 23B | 4327293 | PROTECTOR | |
| 24 | 9196553 | HOSE ASSY | |
| 24A | 4447635 | HOSE | |
| 24B | 4327293 | PROTECTOR | |
| 25 | 9196554 | HOSE ASSY | |
| 25A | 4447636 | HOSE | |
| 25B | 4327293 | PROTECTOR | |
| 26 | 9196555 | HOSE ASSY | |
| 26A | 4447637 | HOSE | |
| 26B | 4327293 | PROTECTOR | |
| 27 | 9196556 | HOSE ASSY | |
| 27A | 4447638 | HOSE | |
| 27B | 4327293 | PROTECTOR | |
| 28 | 9196557 | HOSE ASSY | |
| 28A | 4447641 | HOSE | |
| 28B | 4327293 | PROTECTOR | |
| 29 | 9196558 | HOSE ASSY | |
| 29A | 4447642 | HOSE | |
| 29B | 4327293 | PROTECTOR | |
| 31 | 4219918 | BUSHING, RUBBER | |
| 32 | 4055312 | CLIP, BAND | |
| 100 | 3059267 | NAME-PLATE | |
| 101 | 4372968 | NAME-PLATE | |
| 102 | 4372969 | NAME-PLATE | |
| 103 | 4260602 | CASE | |
| 104 | 4288249 | PLATE | |
| 104 | 4288250 | PLATE | |
| 104 | 4288251 | PLATE | |
| 104 | 4288252 | PLATE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
