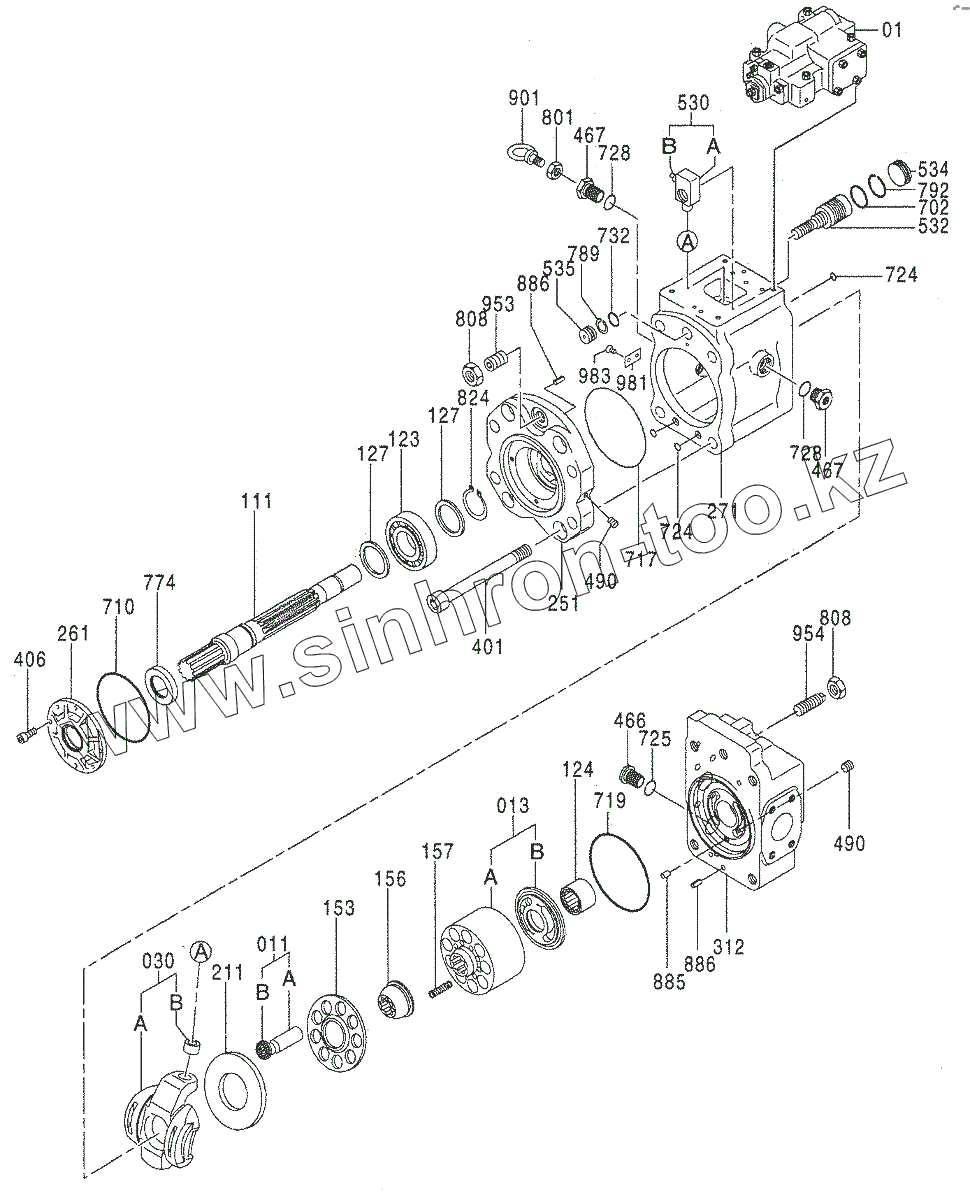

Каталог запасных частей к технике: Hitachi ZAXIS 870H-3. PUMP, PISTON
01
011
011A
011B
013
013A
013B
030
030A
030B
111
123
124
127
127
153
156
157
211
251
261
271
312
401
406
466
467
467
490
490
530
530A
530B
532
534
535
702
710
717
719
724
724
725
728
728
732
774
789
792
801
808
808
824
885
886
886
901
953
954
981
983
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4635787 | 4635787 | PUMP,PISTON | |
| 01 | 4661756 | PUMP,REGULATOR | |
| 011 | 0928006 | PISTON ASS’Y | |
| 011A | PISTON | PISTON | |
| 011B | SHOE | SHOE | |
| 013 | 0928006 | PISTON ASS’Y | |
| 013A | BLOCK,CYL. | BLOCK, CYL. | |
| 013B | PLATE,VALVE | PLATE,VALVE | |
| 030 | 0818503 | PLATE ASS’Y | |
| 030A | PLATE | PLATE | |
| 030B | BUSHING | BUSHING | |
| 111 | 0983101 | SHAFT | |
| 123 | 0878107 | BRG.,ROL. | |
| 124 | 0878108 | BRG.,NEEDLE | |
| 127 | 0818508 | SPACER | |
| 153 | 0878109 | PLATE | |
| 156 | 0818510 | BUSHING,SPH. | |
| 157 | 0818511 | SPRING | |
| 211 | 0818512 | PLATE | |
| 251 | 0818513 | SUPPORT | |
| 261 | 0878111 | COVER,SEAL | |
| 271 | 0978702 | CASING,PUMP | |
| 312 | 0928002 | COVER | |
| 401 | 0818519 | BOLT,SOCKET | |
| 406 | 0237902 | BOLT, SOCKET | |
| 466 | 0629404 | PLUG | |
| 467 | 0818520 | PLUG | |
| 490 | 0263019 | PLUG | |
| 530 | 0878115 | PIN ASS'Y | |
| 530A | PIN | PIN | |
| 530B | PIN | PIN | |
| 532 | 0878116 | PISTON | |
| 534 | 0818523 | STOPPER | |
| 535 | 0818524 | STOPPER | |
| 702 | 0443404 | O-RING | |
| 710 | A811085 | O-RING | |
| 717 | A811120 | O-RING | |
| 719 | A811115 | O-RING | |
| 724 | 4506408 | O-RING | |
| 725 | 957366 | O-RING | |
| 728 | 4506418 | O-RING | |
| 732 | 0443407 | O-RING | |
| 774 | 0983102 | SEAL,OIL | |
| 789 | 4085607 | RING, BACK-UP | |
| 792 | 0249148 | RING, BACKUP | |
| 801 | 0124811 | NUT | |
| 808 | 0131108 | NUT, LOCK | |
| 824 | 991342 | RING, RETAINING | |
| 885 | 0175241 | PIN | |
| 886 | 0244604 | PIN, SPRING | |
| 901 | 4163072 | BOLT, EYE | |
| 953 | 0978703 | SCREW,SET | |
| 954 | 0818525 | SCREW, SET | |
| 981 | PLATE | PLATE | |
| 983 | 0625509 | PIN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
