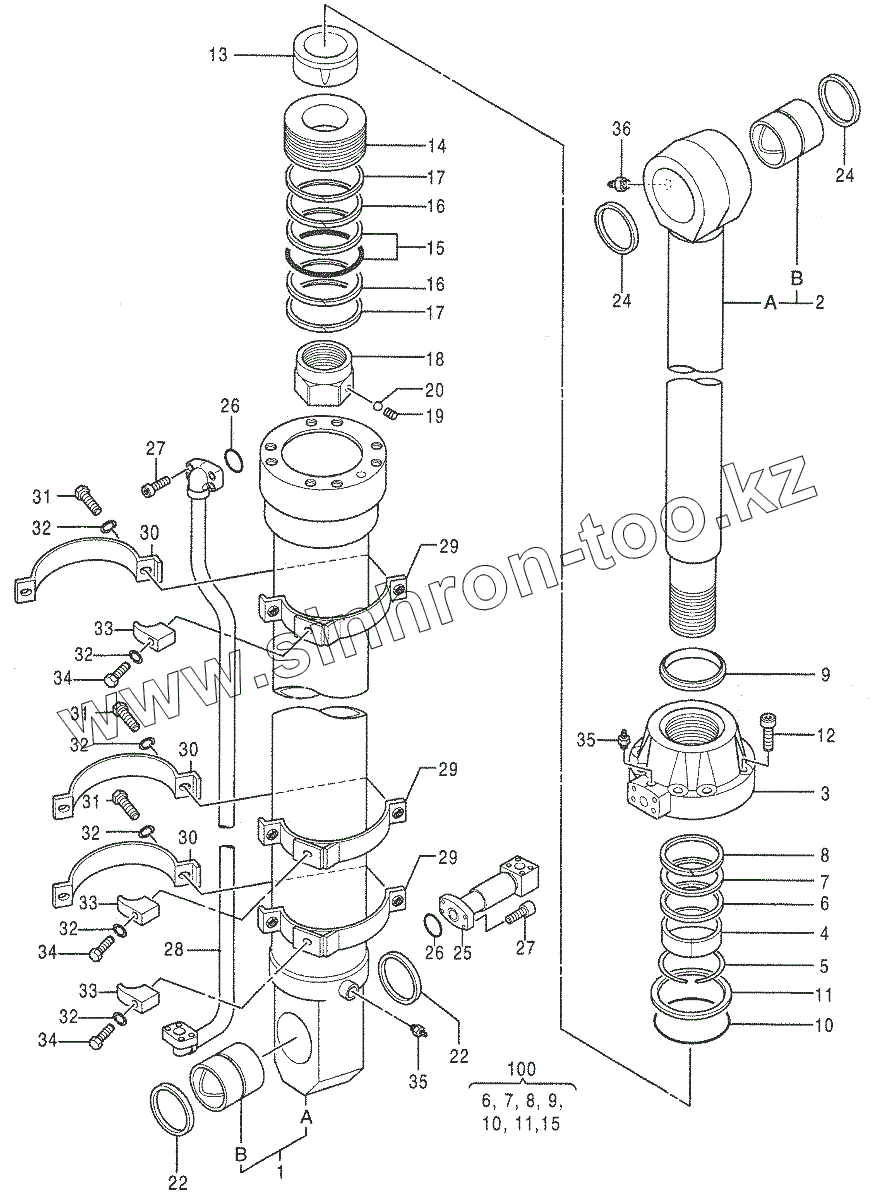

Каталог запасных частей к технике: Hitachi ZAXIS 850-3. CYL., BUCKET(BE ARM)
4659271
1
1A
1B
2
2A
2B
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
15
15
16
16
17
17
18
19
20
22
22
24
24
25
26
26
27
27
28
29
29
29
30
30
30
31
31
31
32
32
32
32
32
32
33
33
33
34
34
34
35
35
36
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4659271 | 4659271 | CYL.,BUCKET | |
| 1 | 0998501 | TUBE,CYL. ASS’Y | |
| 1A | TUBE,CYL. | TUBE,CYL. | |
| 1B | 0379902 | BUSHING | |
| 2 | 0998502 | ROD,PISTON ASS’Y | |
| 2A | ROD,PISTON | ROD,PISTON | |
| 2B | 0978403 | BUSHING,PIN | |
| 3 | 0978103 | HEAD,CYL. | |
| 4 | 0379905 | BUSHING | |
| 5 | 0160706 | RING,RETAINING | |
| 6 | 0964305 | RING | |
| 7 | 0978104 | PACKING,U-RING | |
| 8 | 0242706 | RING,BACK-UP | |
| 9 | 0978105 | RING,WIPER | |
| 10 | A811200 | O-RING | |
| 11 | 0717603 | RING,BACK-UP | |
| 12 | 0343305 | BOLT,SOCKET | |
| 13 | 0379909 | BRG.,CUSHION | |
| 14 | 0702902 | PISTON | |
| 15 | 0392305 | RING,SEAL | |
| 16 | 0978106 | RING.'SLIDE | |
| 17 | 0392306 | RING | |
| 18 | 0812107 | NUT | |
| 19 | 0379815 | SCREW,SET | |
| 20 | 0109124 | BALL,STEEL | |
| 22 | 4251767 | SEAL, DUST | |
| 24 | 0809303 | RING,WIPER | |
| 25 | 0380008 | JOINT | |
| 26 | 955612 | O-RING | |
| 27 | 0158883 | BOLT,SOCKET | |
| 28 | 0998503 | PIPE | |
| 29-34 | 0998504 | BAND KIT | |
| 29 | 0998505 | BAND | |
| 30 | 0379921 | BAND | |
| 31 | 0379919 | BOLT | |
| 32 | A590914 | WASHER, SPRING | |
| 33 | 0353016 | CLAMP, PIPE | |
| 34 | 0379918 | BOLT | |
| 35 | 0643016 | BLEEDER,AIR | |
| 36 | J75481 | FITTING, GREASE | |
| 100 | 4653861 | KIT,SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
