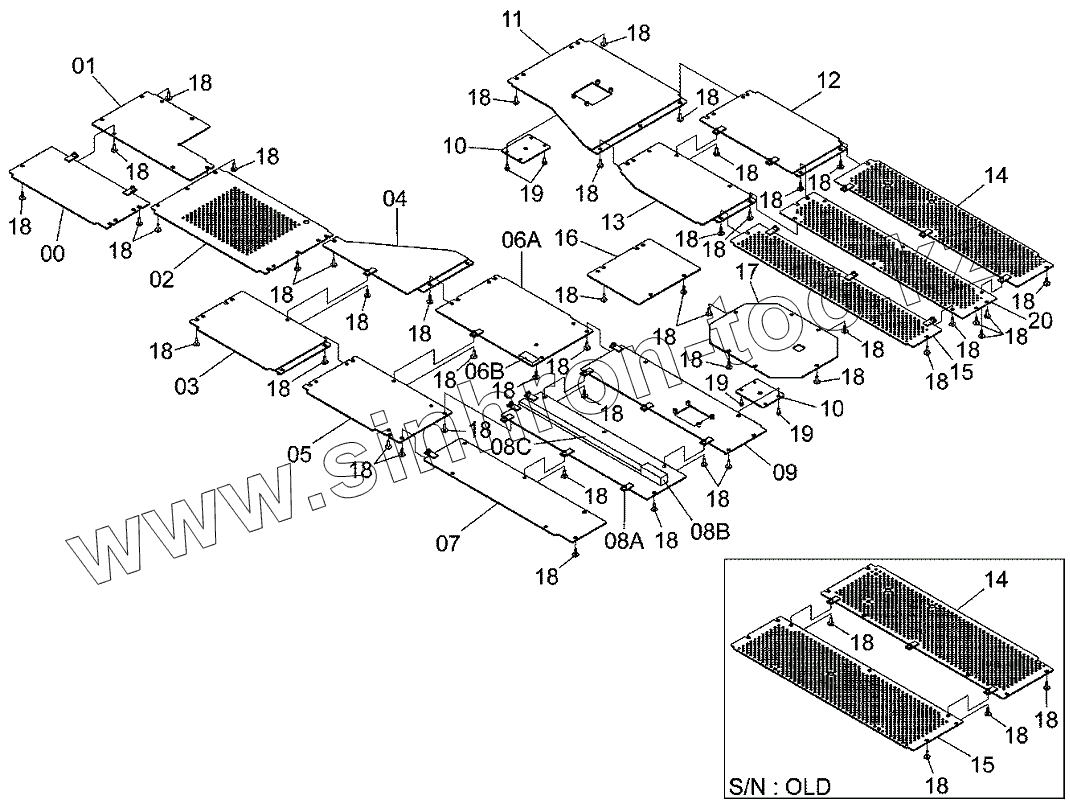

Каталог запасных частей к технике: Hitachi ZAXIS 350H-5G. UNDER COVER (t=6.0mm)
00
01
02
03
04
05
06A
06B
06A
06B
07
08A
08B
08C
08A
08B
08C
09
10
10
11
12
13
14
14
14
14
15
15
15
15
16
17
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
19
19
19
20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 8118765 | COVER | |
| 01 | 8118764 | COVER | |
| 02 | 8118766 | COVER | |
| 03 | YA40004631 | COVER | |
| 04 | YA40004632 | COVER | |
| 05 | YA40004633 | COVER | |
| 06 | YA60004970 | COVER | |
| 06A | YA40004634 | COVER | |
| 06B | 4689406 | RUBBER | |
| 06 | YA60004970 | COVER | |
| 06A | YA40004634 | COVER | |
| 06B | XV00000849 | SEAL,RUBBER | |
| 07 | YA40004635 | COVER | |
| 08 | YA60004971 | COVER | |
| 08A | YA40004636 | COVER | |
| 08B | YA00005237 | SEAL,RUBBER | |
| 08C | 4691819 | RUBBER | |
| 08 | YA60004971 | COVER | |
| 08A | YA40004636 | COVER | |
| 08B | XV00000925 | SEAL,RUBBER | |
| 08C | YA00021824 | SEAL,RUBBER | |
| 09 | YA40004637 | COVER | |
| 10 | 4360250 | COVER | |
| 11 | 8118756 | COVER | |
| 12 | 8118754 | COVER | |
| 13 | 8118755 | COVER | |
| 14 | 8118760 | COVER | |
| 14 | YA40022519 | COVER | |
| 15 | 8118761 | COVER | |
| 15 | YA40022517 | COVER | |
| 16 | 8098934 | COVER | |
| 17 | YA40004197 | COVER | |
| 18 | J281040 | BOLT | |
| 18A | J901040 | BOLT | |
| 18B | 4486055 | WASHER | |
| 18 | J281040 | BOLT | |
| 18A | J901040 | BOLT | |
| 18B | 4486055 | WASHER | |
| 19 | J271030 | BOLT, SEMS | |
| 19A | J901030 | BOLT | |
| 19B | J222010 | WASHER | |
| 20 | YA40022518 | COVER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
