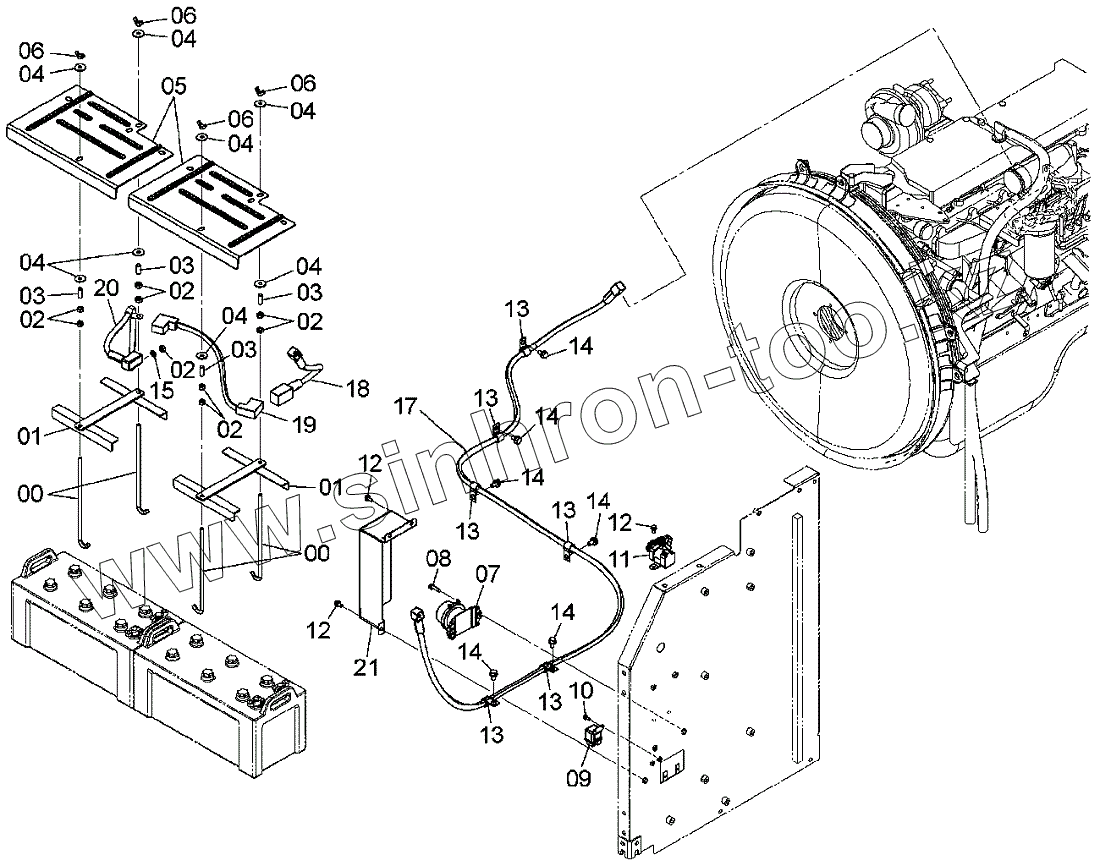

00
00
01
01
02
02
02
02
02
03
03
03
03
04
04
04
04
04
04
04
05
06
06
06
06
07
08
09
10
11
12
12
12
13
13
13
13
13
13
14
14
14
14
14
14
15
17
18
19
20
21
Позиция на иллюстрации
Заводской номер детали
Название детали
00
4430289
BOLT
01
8102545
BRACKET
02
J950010
NUT
03
4627469
SPACER
04
J217083
WASHER
05
3106378
COVER
06
M570010
NUT, WING
07
4255762
RELAY, BATTERY
08
J260830
BOLT, SEMS
08A
J900830
BOLT
08B
A590108
WASHER, PLANE
09
4452159
RELAY
10
J260616
BOLT, SEMS
10A
J900616
BOLT
10B
A590106
WASHER
11
4452158
RELAY
12
J260816
BOLT, SEMS
12A
J900816
BOLT
12B
A590108
WASHER, PLANE
13
4190273
CLIP
14
J271020
BOLT, SEMS
14A
J901020
BOLT
14B
J222010
WASHER
15
A590110
WASHER, PLANE
17
YA00010363
CABLE,BATT.
18
4652504
CABLE, BATT
19
4652505
CABLE, BATT
20
4645954
CABLE, BATT
21
YA00010478
COVER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
