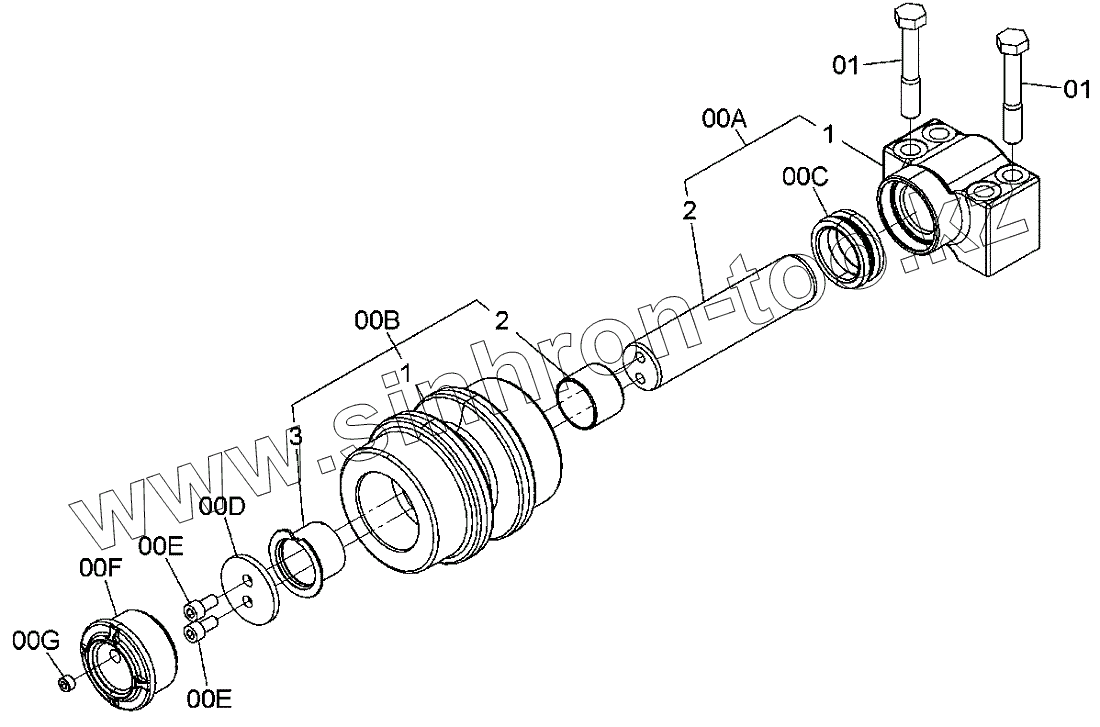

ROLLER,UPPER
ROLLER,UPPER
00A
00B
00C
00D
00E
00E
00F
00G
01
01
Позиция на иллюстрации
Заводской номер детали
Название детали
ROLLER,UPPER
ROLLER,UPPER
ROLLER,UPPER
00
YA60026928
ROLLER,UPPER
00A
YA60026927
ASS'Y
00A1
YA00031501
BRACKET
00A2
3103617
SHAFT
00B
YA60038408
ROLLER
00B1
YA40019974
ROLLER
00B2
3116949
BUSHING
00B3
3116948
BUSHING
00C
YA00008789
SEAL,GROUP
00D
YA00041390
RETAINER
00E
M351225
BOLT, SOCKET
00F
2058089
COVER
00G
4315607
PLUG
01
4647124
BOLT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
