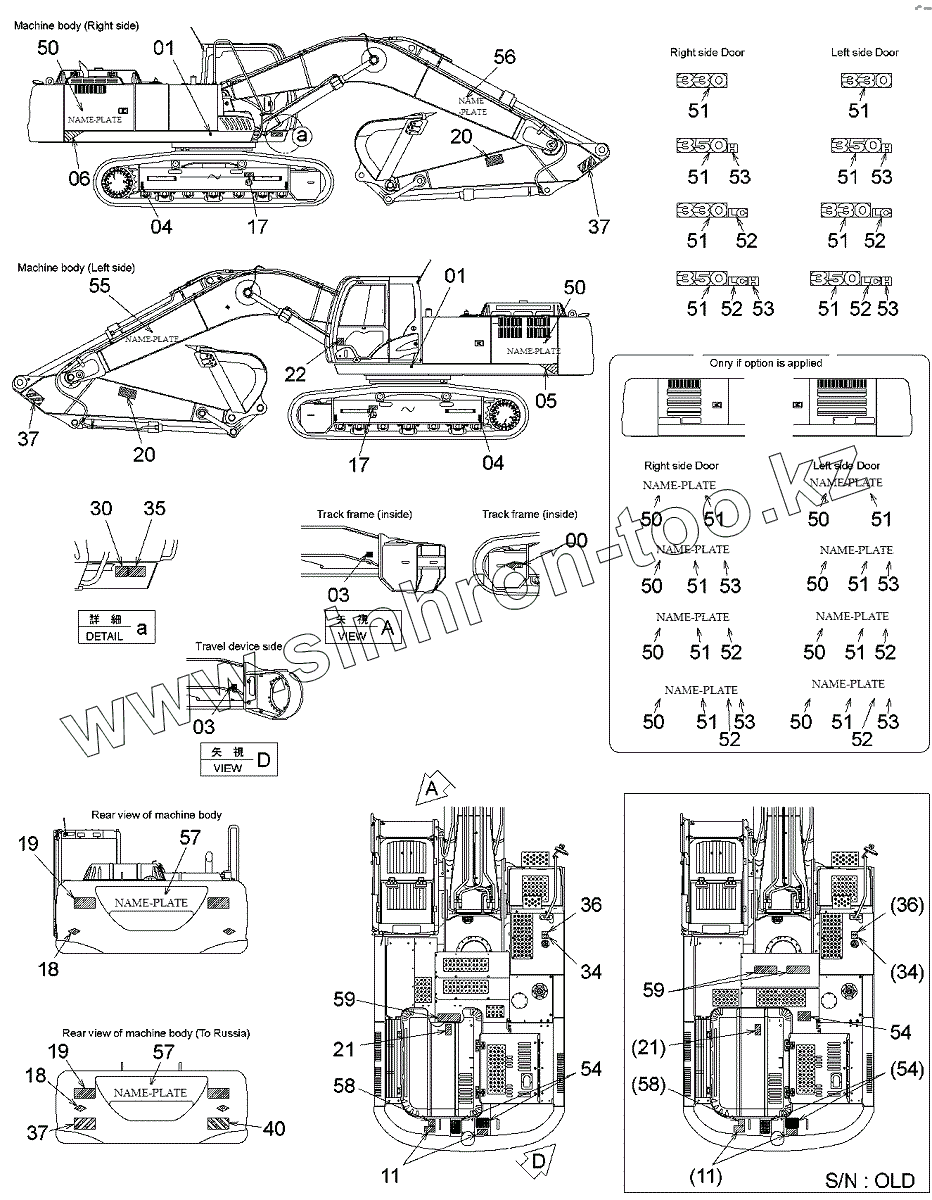

Каталог запасных частей к технике: Hitachi ZAXIS 330-5G. NAME PLATE (1)
4658927
1
1
3
3
4
4
4
4
4
4
5
6
11
11
17
17
18
18
19
19
20
20
21
21
22
30
30
30
30
30
30
30
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
35
36
36
37
37
37
40
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
51
52
52
52
52
52
52
52
52
52
52
52
52
52
52
52
52
52
52
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
54
54
54
54
54
54
54
54
55
56
57
57
58
58
59
59
59
59
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4658927 | 4658927 | NAME-PLATE (AN ARROW) | |
| 1 | 4201787 | MARK | |
| 3 | 4657778 | NAME-PLATE | |
| 4 | 3089138 | MARK | |
| 4 | YA00028559 | MARK | |
| 5 | YA00005136 | NAME-PLATE | |
| 6 | YA00005137 | NAME-PLATE | |
| 11 | 3092125 | SAFETY-SIGN | |
| 17 | 3086091 | NАМЕ-РLАТЕ | |
| 18 | 4040580 | RЕFLЕСТОR | |
| 19 | 3086090 | SAFETY-SIGN | |
| 20 | 3092124 | SАFЕТY-SIGN | |
| 21 | 3092126 | SAFETY-SIGN | |
| 22 | 3076246 | NAME-PLATE | |
| 30 | 4666044 | NAME-PLATE | |
| 30 | 4667206 | NAME-PLATE | |
| 30 | 4667871 | NAME-PLATE | |
| 30 | 4667872 | NAME-PLAT | |
| 30 | 4667873 | NAME-PLATE | |
| 30 | 4667870 | NAME-PLATE | |
| 30 | YA00046595 | NAME-PLATE | |
| 34 | YA00046599 | NAME-PLATE | |
| 34 | YA00010878 | NAME-PLATE | |
| 34 | YA00010867 | NAME-PLATE | |
| 34 | YA00010875 | NAME-PLATE | |
| 34 | YA00010874 | NAME-PLATE | |
| 34 | YA00010870 | NAME-PLATE | |
| 34 | YA00010876 | NAME-PLATE | |
| 35 | NAME-PLATE | NAME-PLATE | |
| 36 | YA00010859 | SAFETY-SIGN | |
| 37 | 3096274 | MARK | |
| 40 | YA00039349 | MARK | |
| 50 | 1033520 | NAME-PLATE (NAME OF MACHINE ZAXIS) | |
| 50 | 1033793 | NAME-PLATE | |
| 51 | YA00006633 | NAME-PLATE | |
| 51 | YA00006642 | NAME-PLATE | |
| 51 | YA00006634 | NAME-PLATE | |
| 51 | YA00006643 | NAME-PLATE | |
| 52 | YA00005092 | NAME-PLATE | |
| 52 | YA00005204 | NAME-PLATE | |
| 53 | YA00006636 | NAME-PLATE | |
| 53 | YA00006646 | NAME-PLATE | |
| 53 | YA00006635 | NAME-PLATE | |
| 53 | YA00006645 | NAME-PLATE | |
| 54 | 4121128 | TAPE 150X200 | |
| 54 | 4121128 | TAPE 150X200 | |
| 55 | 2053329 | NAME-PLATE (NAME OF COMPANY) | |
| 56 | 2053329 | NAME-PLATE (NAME OF COMPANY) | |
| 57 | 2053330 | NAME-PLATE (NAME OF COMPANY) | |
| 58 | 4665448 | NAME-PLATE (DO NOT LIFT-UP) | |
| 59 | 4459005 | TAPE 120X350 (ANTI-SKID TAPE) | |
| 59 | 4459005 | TAPE 120X350 (ANTI-SKID TAPE) |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
