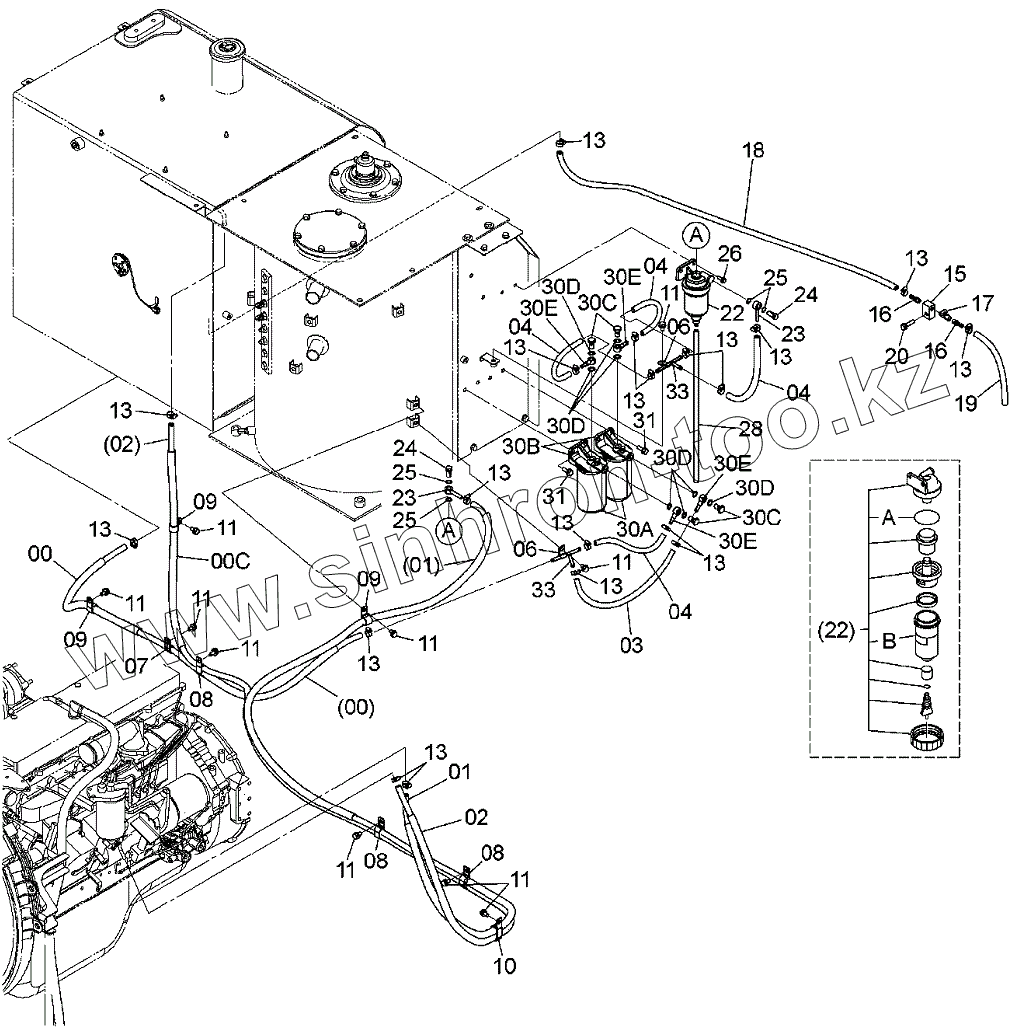

Каталог запасных частей к технике: Hitachi ZAXIS 330-5G. FUEL PIPING
00
00
00C
00
00
00C
01
01
01
01
02
02
02
02
03
03
04
04
04
04
04
04
04
04
06
06
07
08
08
08
09
09
09
10
11
11
11
11
11
11
11
11
11
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
15
16
16
17
18
18
19
20
22
22
23
23
24
24
25
25
25
26
28
30A
30B
30C
30C
30D
30D
30D
30D
30E
30E
30E
30E
31
31
33
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | YA60005186 | HOSE,FUEL | |
| 00A | 4388235 | HOSE, FUEL | |
| 00B | 4610630 | ТUВЕ | |
| 00C | 4670709 | TUBE | |
| 00 | ZD60000108 | HOSE,FUEL | |
| 00A | YA00018149 | TUBE,CORRUGATED | |
| 00B | ZD00000376 | TUBE,CORRUGATED | |
| 00C | ZD00000378 | TUBE | |
| 01 | 9323292 | HOSE,FUEL | |
| 01A | 4374348 | HOSE,FUEL | |
| 01B | 4457967 | TUBE | |
| 01C | 4602152 | TUBE | |
| 01 | ZD60000109 | HOSE,FUEL | |
| 01A | YA00016529 | HOSE,FUEL | |
| 01B | ZD00000373 | TUBE,CORRUGATED | |
| 01C | ZD00000377 | TUBE,CORRUGATED | |
| 02 | 9323293 | HOSE,FUEL | |
| 02A | 4629810 | HOSE, FUEL | |
| 02B | 4686486 | TUBE | |
| 02C | 4610630 | ТUВЕ | |
| 02 | ZD60000110 | HOSE,FUEL | |
| 02A | YA00027976 | HOSE,FUEL | |
| 02B | ZD00000380 | TUBE,CORRUGATED | |
| 02C | ZD00000376 | TUBE,CORRUGATED | |
| 03 | YA00010558 | HOSE,FUEL | |
| 03 | ZD60000116 | HOSE,FUEL | |
| 03A | ZD00000144 | HOSE,FUEL | |
| 04 | YA00010557 | HOSE,FUEL | |
| 04 | ZD60000115 | HOSE,FUEL | |
| 04A | YA00018738 | HOSE,FUEL | |
| 06 | 4190261 | CLIP | |
| 07 | 4190273 | CLIP | |
| 08 | 4190282 | CLIP | |
| 09 | 4190263 | CLIP | |
| 10 | 4192034 | CLIP | |
| 11 | J271020 | BOLT, SEMS | |
| 11A | J901020 | BOLT | |
| 11B | J222010 | WASHER | |
| 13 | 4514700 | CLIP, HOSE | |
| 15 | 4725406 | ADAPTER | |
| 16 | 4449362 | ADAPTER | |
| 17 | 4478378 | VALVE BALL | |
| 18 | 4404652 | HOSE,FUEL | |
| 18 | YA60011326 | HOSE,FUEL | |
| 18A | YA00015298 | HOSE,FUEL | |
| 19 | 4407161 | HOSE,FUEL | |
| 20 | J271045 | BOLT, SEMS | |
| 20A | J901045 | BOLT | |
| 20B | J222010 | WASHER | |
| 22 | 4461209 | SЕРАRАТОR | |
| 22A | 4621869 | О-RING | |
| 22B | 4621774 | САSЕ | |
| 23 | 4452162 | PIPE, FUEL | |
| 24 | 4452163 | BOLT, EYE | |
| 25 | 4452165 | PACKING | |
| 26 | J260825 | BOLT, SEMS | |
| 26A | J900825 | BOLT | |
| 26B | A590108 | WASHER, PLANE | |
| 28 | 4396469 | HOSE,VINYL | |
| 30 | 4335136 | FILTER, FUEL | |
| 30A | 4326739 | FILTER, FUEL | |
| 30B | 4326807 | HEAD | |
| 30C | 4326740 | BOLT | |
| 30D | 4326741 | GASKET | |
| 30E | 4326742 | PIPE, FUEL | |
| 31 | J271030 | BOLT, SEMS | |
| 31A | J901030 | BOLT | |
| 31B | J222010 | WASHER | |
| 33 | 9761400 | РIРЕ |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
