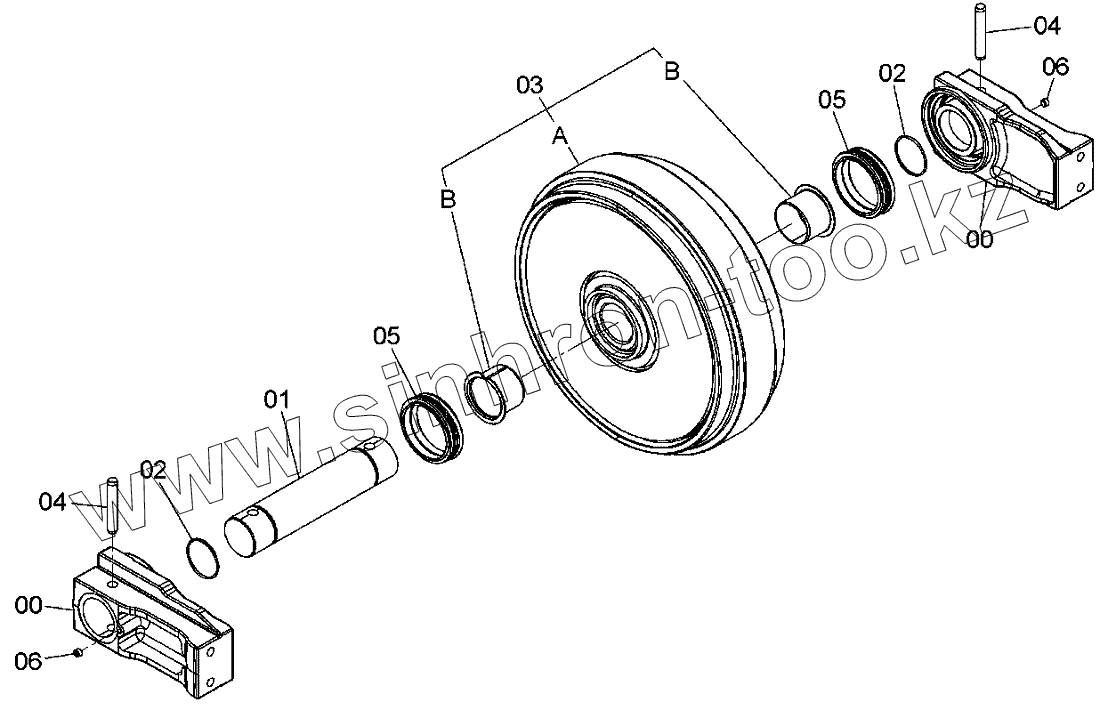

YA60018462
YA60018462
00
00
01
02
02
03
04
04
05
05
06
06
Позиция на иллюстрации
Заводской номер детали
Название детали
YA60018462
YA60018462
IDLER
00
YA00023761
BRG.
01
YA00023762
AXLE
02
A810080
O-RING
03
YA60018463
IDLER
03A
YA40015031
IDLER
03B
3103740
BUSHING
04
4138084
РIN
05
YA00000400
SEAL,GROUP
06
4372463
PLUG
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
