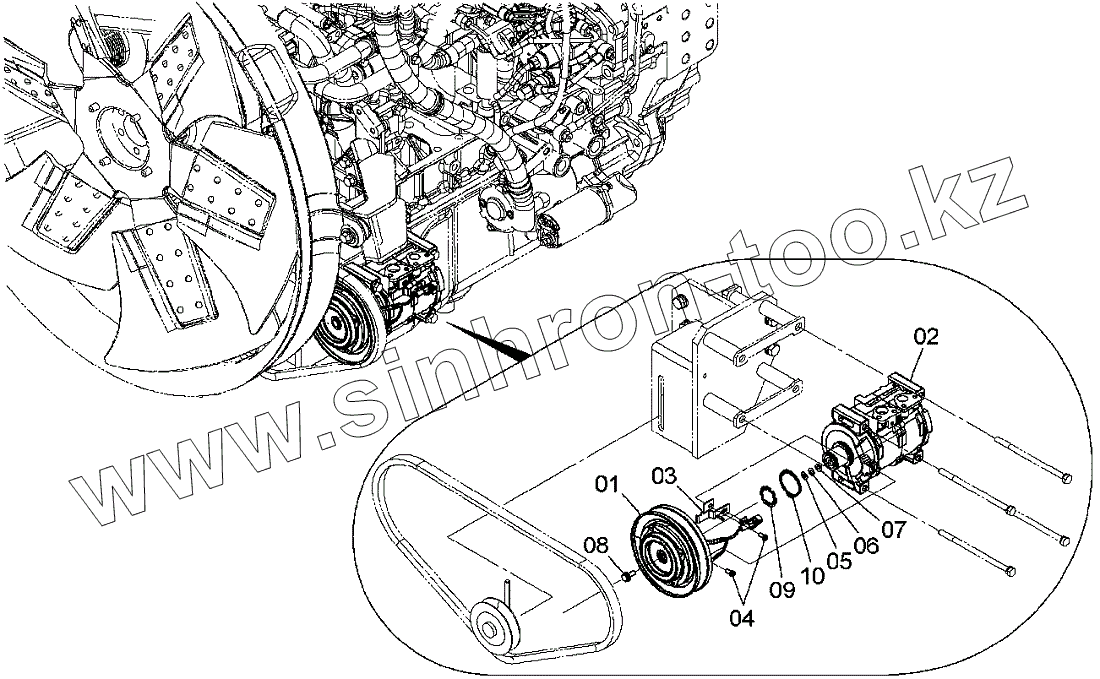

4721999
1
2
3
4
5
6
7
8
9
10
Позиция на иллюстрации
Заводской номер детали
Название детали
4721999
4721999
COMPRESSOR
1
XB00001039
CLUTCH,MAGNET
2
XB00001040
COMPRESSOR
3
XB00001041
BRACKET
4
4475245
SCREW
5
4475237
WASHER
6
4475242
WASHER
7
4475243
WASHER
8
4475244
BOLT
9
4475236
RING
10
4475230
RING
