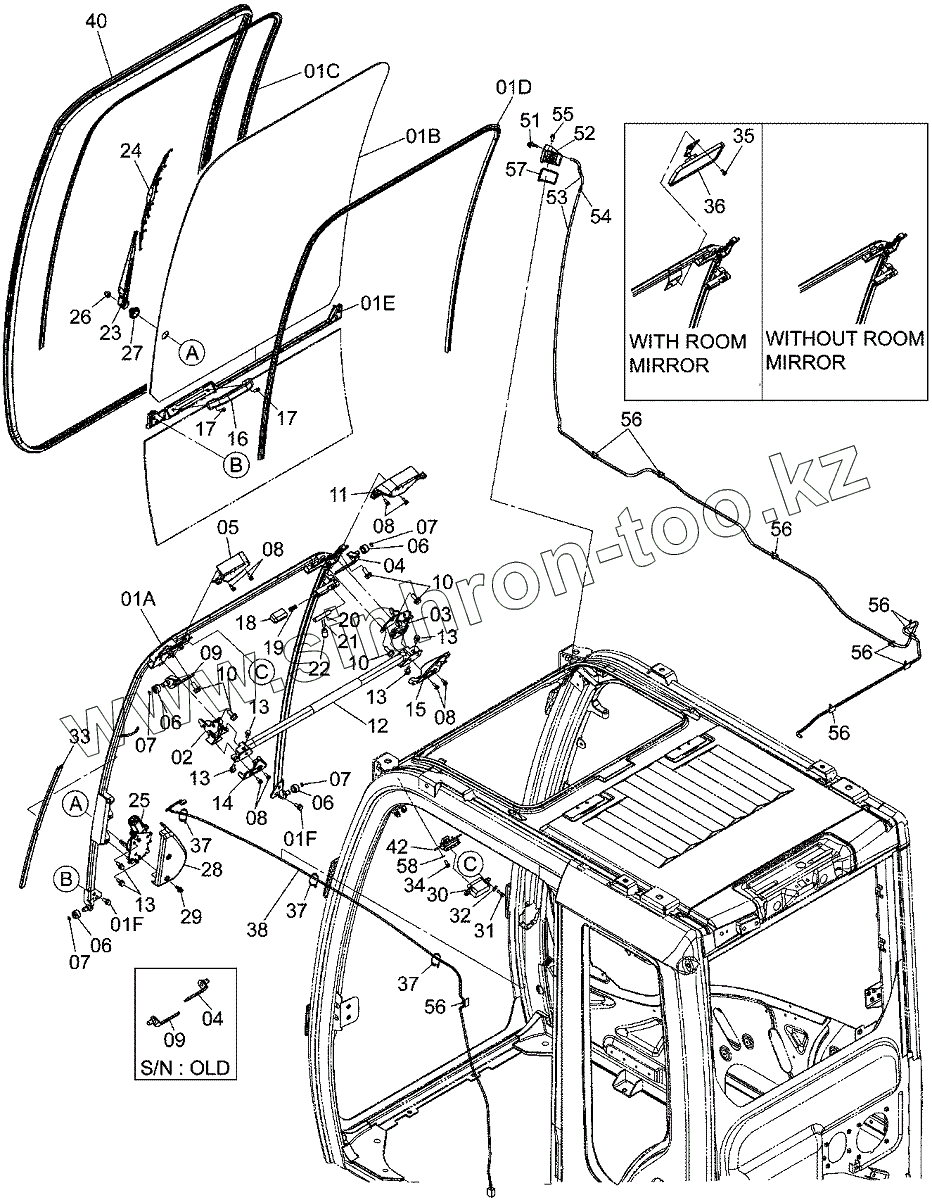

Каталог запасных частей к технике: Hitachi ZAXIS 330-5G. CAB (5)
01A
01B
01C
01D
01E
01F
01F
01A
01B
01C
01D
01E
01F
01F
02
03
04
04
04
04
05
06
06
06
06
07
07
07
07
08
08
08
08
09
09
09
09
10
10
10
11
12
13
13
13
13
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
37
38
40
42
51
52
53
54
55
56
56
56
56
56
56
57
58
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01-34 | YA00000236 | WINDOW | |
| 01-34 | YA00042777 | WINDOW | |
| 01 | XB00000925 | FRAME,WINDOW | |
| 01A | XB00000926 | FRAME | |
| 01B | YA00001495 | GLASS | |
| 01C | XB00000927 | RUBBER | |
| 01D | XB00000928 | RUBBER | |
| 01E | XB00000929 | RUBBER | |
| 01F | 4658110 | BOLT SEMS | |
| 01-36 | YA00042780 | WINDOW | |
| 01 | XB00005487 | WINDOW | |
| 01A | XB00005488 | FRAME,WINDOW | |
| 01B | YA00001495 | GLASS | |
| 01C | XB00000927 | RUBBER | |
| 01D | XB00000928 | RUBBER | |
| 01E | XB00000929 | RUBBER | |
| 01F | 4658110 | BOLT SEMS | |
| 02 | XB00000930 | LOCK | |
| 03 | XB00000931 | LOCK | |
| 04 | XB00000932 | BRACKET | |
| 04 | YA00044509 | BRACKET | |
| 05 | XB00000933 | COVER | |
| 06 | 4204558 | ROLLER | |
| 07 | XB00000934 | SPRING | |
| 08 | XB00000935 | BOLT,SEMS | |
| 09 | XB00000936 | BRACKET | |
| 09 | YA00044508 | BRACKET | |
| 10 | 4662250 | BOLT,SEMS | |
| 11 | XB00000938 | COVER | |
| 12 | XB00000939 | HANDLE | |
| 13 | 4658110 | BOLT SEMS | |
| 14 | XB00000940 | COVER | |
| 15 | XB00000941 | COVER | |
| 16 | 4204579 | HANDLE | |
| 17 | 4485892 | SCREW, SEMS | |
| 18 | 4456227 | COVER | |
| 19 | 4662251 | SPRING | |
| 20 | 4662243 | SHAFT | |
| 21 | 4662223 | LEVER | |
| 22 | 4607646 | COVER | |
| 23 | 4650571 | WIPER-ARM | |
| 24 | 4650572 | WIPER-BLADE | |
| 25 | YA00010377 | WIPER-MOTOR | |
| 26 | 4464401 | NUT | |
| 27 | 4656158 | CAP | |
| 28 | 4650573 | COVER | |
| 29 | 4658109 | SCREW SEMS | |
| 30 | 4658091 | SWITCH | |
| 31 | 4658095 | BOLT SEMS | |
| 32 | 4662226 | WASHER | |
| 33 | XB00000942 | COVER | |
| 34 | 4658094 | SCREW,TAPPING | |
| 35 | 4685091 | SCREW,SEMS | |
| 36 | 965452 | MIRROR | |
| 37 | 4377820 | CLAMP | |
| 38 | XB00000943 | HARNESS,WIRE | |
| 40 | 4659659 | RUBBER | |
| 42 | 4658090 | SWITCH | |
| 51 | 4464394 | NOZZLE | |
| 52 | 4662759 | ADAPTER | |
| 53 | 4666369 | HOSE | |
| 54 | 4367481 | VALVE | |
| 55 | 4658095 | BOLT SEMS | |
| 56 | 4662758 | CLIP | |
| 57 | XB00000896 | RUBBER | |
| 58 | 4662226 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
