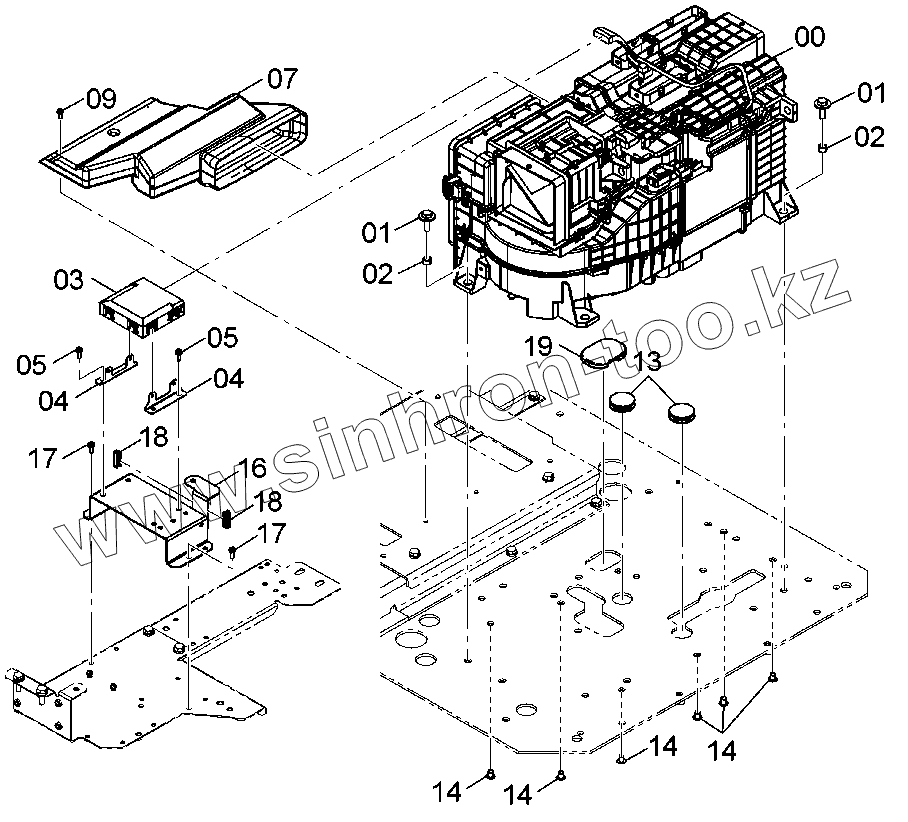

00
01
01
02
02
03
04
04
05
05
07
09
13
14
14
14
14
16
17
17
18
18
19
Позиция на иллюстрации
Заводской номер детали
Название детали
00
YA00042254
UNIT,AIRCON
01
J281035
BOLT, SEMS
01A
J901035
BOLT
01B
4486055
WASHER
02
YA00008897
SPACER
03
YA00007726
CONTROLLER
04
4704925
BRACKET
05
J460620
SCREW, SEMS
07
7058406
DUCT
09
J460616
SCREW, SEMS
13
4288445
BUSHING
14
4280359
CLIP
16
8119300
BRACKET
17
J460620
SCREW, SEMS
18
4692607
TRIM
19
3120378
BUSHING,RUBBER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
