Каталог запасных частей к технике: Hitachi ZAXIS 330-5G. AIR CLEANER SUPPORT

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME FRAME PARTS BOOM FOOT PIN CENTER JOINT PARTS (UPPERSTRUCTURE) COUNTERWEIGHT COVER (1) DOOR LOCK COVER (2) ANTI SLIP COVER (2) COVER (2)(WITH PRE-CLEANER) ANTI SLIP COVER (2)(WITH PRE-CREANER) COVER (3) ANTI SLIP COVER (3) ANTI-SLIP COVER (3) COVER (4) COVER (5) COVER (5) COVER (6) ANTI SLIP COVER (6) COVER (7) COVER (7)(TROPICAL) COVER (7)(TROPICAL) COVER (8) COVER (8)(LINE FILTER) TOOL BOX COVER ANTI SLIP COVER (TOOL BOX) ANTI SLIP COVER (FUEL TANK) ENGINE COVER RADIATOR COVER UNDER COVER UNDER COVER (t=6.0mm) ENGINE ENGINE SUPPORT OIL FILTER PIPING INTERCOOLER PIPING RADIATOR RADIATOR RADIATOR SUPPORT RESERVE TANK AIR CLEANER ELEMENT (INNER) AIR CLEANER SUPPORT AIR CLEANER PARTS PRE-CLEANER PRE-CLEANER PARTS MUFFLER FUEL TANK FUEL TANK (FLASHING CIRCUIT) FUEL TANK SUPPORT FUEL PIPING PUMP DEVICE PUMP DEVICE SUPPORT CONTROL VALVE CONTROL VALVE SUPPORT SWING DEVICE SWING DEVICE SUPPORT OIL TANK OIL TANK OIL TANK PARTS OIL TANK PARTS SUPPORT SUCTION PIPING DELIVERY PIPING RETURN PIPING (1) RETURN PIPING (2) DRAIN PIPING MAIN PIPING (1) MAIN PIPING (2) MAIN PIPING (3) MAIN PIPING (4) BOOM BOTTOM PIPING SOLENOID VALVE PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4-1) PILOT PIPING (4-2) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING (9) PILOT PIPING (10) ELECTRIC PARTS (1) ELECTRIC PARTS (2) ELECTRIC PARTS (3) ELECTRIC PARTS (4) ELECTRIC PARTS (5-1) ELECTRIC PARTS (5-1) ELECTRIC PARTS (5-2) BATTERY START SWITCH ENGINE STOP SWITCH MOBILE COMMUNICATIONS TERMINAL MOBILE COMMUNICATIONS TERMINAL COMMUNICATION TERMINAL SUPPORT SATELLITE COMMUNICATIONS TERMINAL ELECTRIC CONTROL PARTS CONTROLLER (SMCZ) MONITOR CONTROLLER ADD. FUSE PARTS FRONT HEAD LAMP (2 LAMP)(FLOOR) FRONT HEAD LAMP (2 LAMP WITH RAIN-VISOR UPPER) REAR HEAD LAMP (CAB) REAR HEAD LAMP PARTS (FLOOR) BRACKET (ADDITIONAL RELAY) BOOM LIGHT HARNESS BOOM LIGHT (R) AUTO ENGINE CONTROL ENGINE CONTROL MOTOR (AUTO ENGINE CONTROL) ENGINE STOP CABLE (AUTO ENGINE CONTROL) ENGINE CONTROL UNIT HORN REAR CAMERA WITHOUT REAR CAMERA PARTS SWING MOTION ALARM TRAVEL MOTION ALARM DEVICE WINDOW WASHER WINDOW WASHER CAB (STEEL ROOF)(WITH FRONT GUARD SEAT)(MOBILE COMMUNICATIONS) CAB (1) CAB (2) DOOR CAB (3) CAB (4) CAB (5) CAB (5)(LAMINATED GLASS) CAB (6) CAB (7) FRONT HEAD LAMP HARNESS CAB (STEEL ROOF)(WITH FRONT GUARD SEAT)(SATELLITE COMMUNICATIONS) ANTENNA (SATELLITE COMMUNICATIONS) CAB (STEEL ROOF)(WITHOUT FRONT GUARD SEAT)(MOBILE COMMUNICATIONS) CAB (STEEL ROOF)(WITHOUT FRONT GUARD SEAT)(SATELLITE COMMUNICATIONS) CAB GUARD (UNDER FRONT) CAB GUARD (ON FRONT) CAB GUARD (CEILING) CAB GROUP (1) CAB GROUP (2) ANCHOR BOLT WITHOUT ANCHOR BOLT PARTS CAB MIRROR SUNVISOR (RIGHT WINDOW) FRONT HEAD LAMP,RAIN GUARD SUPPORT CONTROL LEVER (FRONT, SWING) CONTROL LEVER (FRONT, SWING)(WITH SINGLE SWITCH) CONTROL LEVER (FRONT, SWING)(WITH TRIPLE SWITCH) PILOT PIPING (FRONT,SWING) CONTROL LEVER (TRAVEL) PILOT VALVE (TRAVEL) PEDAL (R) PEDAL (L) LOCK LEVER CONSOLE CONSOLE COVER RIGHT COVER RADIO (AM/FM) REAR BOX REAR BOX (12V POWER SUPPLY) POWER UNIT (12V) FLOOR PLATE FLOOR PARTS (1) FLOOR PARTS (2) SEAT PARTS (KAB) SEAT SUSPENSION SEAT PARTS (KAB) SUSPENSION SEAT (KAB) SUSPENSION SEAT PARTS (WITHOUT SEAT BELT) (KAB) AIR-SUSPENSION SEAT PARTS (WITH HEATER)(GRAMMER) AIR-SUSPENSION SEAT (1)(WITH HEATER)(GRAMMER) AIR-SUSPENSION SEAT (2)(WITH HEATER)(GRAMMER) AIR-SUSPENSION SEAT PARTS (WITH HEATER)(WITHOUT SEAT BELT)(GRAMMER) HEATER SEAT PARTS SEAT STAND SEAT STAND STAND PARTS FLOOR MAT FLOOR CARPET AIR CONDITIONER (1) AIR CONDITIONER UNIT AIR CONDITIONER (1) AIR CONDITIONER UNIT AIR CONDITIONER (2) AIR CONDITIONER (3) AIR CONDITIONER (4-1) AIR CONDITIONER (4-2) CONDENSER UNIT COMPRESSOR HEATER PIPING DUCT (WITH AIR CONDITIONER) DUCT (WITHOUT AIR CONDITIONER) WITHOUT AIR CONDITIONER PARTS TRACK FRAME TRACK FRAME TRACK GUARD FULL-LENGTH TRACK GUARD FULL-LENGTH TRACK GUARD STEP ADDITIONAL STEP TRACK UNDER COVER SWING BEARING SWING BEARING PARTS SWING BEARING PARTS TRAVEL DEVICE TRAVEL DEVICE SUPPORT TRACK SPRING FRONT IDLER FRONT IDLER ADJUSTER TRACK SPRING ADJUSTER UPPER ROLLER UPPER ROLLER LOWER ROLLER (STD) LOWER ROLLER (STD) LOWER ROLLER (LC) LOWER ROLLER (LC) LOWER ROLLER SUPPORT TRACK-LINK TRACK-LINK CENTER JOINT CENTER JOINT SUPPORT (TRACK) TRAVEL PIPING TRAVEL PIPING TRAVEL MOTOR COVER TRAVEL MOTOR COVER BOOM 6.4m BOOM 6.4m (WITH BREAKER, BOOM RIGHT SIDE LIGHT SEAT BOOM 6.4m BOOM PARTS BOOM PARTS BOOM PIPING LUBRICATE PIPING ARM 2.33m ARM 2.33m (WITH BREAKER PIPING SEAT) ARM 2.67m ARM 3.20m ARM 3.2m (WITH BREAKER PIPING SEAT) ARM 4.0m ARM PARTS ARM PIPING A LINK WELDED A LINK B LINK B LINK (K TYPE) B LINK (H TYPE) BUCKET 1.4m3 (JIS 94) BUCKET 1.4m3 (JIS 94)(SIDE-PIN TOOTH) BUCKET 1.4m3 (JIS 94)(SUPER V TOOTH) BUCKET 1.62m3 (JIS 94) BUCKET 1.86m3 (JIS 94) ROCK BUCKET 1.38m3 (JIS 94)(SUPER V TOOTH) ROCK BUCKET 1.38m3 (JIS 94)(SIDE-PIN TOOTH) ROCK BUCKET 1.5m3 (JIS 94)(SUPER V TOOTH) REINFORCEMENT BUCKET 1.4m3 (JIS 94) BUCKET 2.0m3 (JIS 94)(SUPER V TOOTH)(REINFORCEMENT TYPE) ROCK BUCKET 2.0m3 (JIS 94)(SUPER V TOOTH) BOOM CYLINDER (R) BOOM CYLINDER (R) BOOM CYLINDER (L) BOOM CYLINDER (L) BOOM CYLINDER (R)(WITH HOSE RUPTURE VALVE) BOOM CYLINDER (L)(WITH HOSE RUPTURE VALVE) ARM CYLINDER ARM CYLINDER ARM CYLINDER (WITH HOSE RUPTURE VALVE) HOSE RUPTURE VALVE PIPING (BOOM) HOSE RUPTURE VALVE PIPING (ARM)(1) HOSE RUPTURE VALVE PIPING (ARM)(2) BUCKET CYLINDER BUCKET CYLINDER BREAKER, CRUSHER PIPING (MAIN) BREAKER, CRUSHER PIPING (PILOT) LINE FILTER CONTROL PEDAL (BREAKER, CRUSHER) FLOOR MAT (BREAKER) FLOOR CARPET (BREAKER) BREAKER, CRUSHER PIPING (BOOM) BREAKER, CRUSHER PIPING (2.33m ARM) BREAKER, CRUSHER PIPING (2.67mARM) BREAKER, CRUSHER PIPING (3.2m ARM) BREAKER, CRUSHER PIPING (4.0m ARM) NPK BREAKER PIPING HSB BREAKER PIPING NPK COMMON PIPING (BREAKER, CRUSHER) HSB COMMON PIPING (BREAKER, CRUSHER) PILOT PIPING (FLOW RATE SELECTOR) RELIEF VALVE ELECTRIC GREASE GUN AUTO FUEL FILLING DEVICE AUTO FUEL FILLING DEVICE (FLASHING CIRCUIT) BALL VALVE HIGH PERFORMANCE FILTER KIT TOOLS NAME PLATE (1) NAME PLATE (2) NAME PLATE (3)

02

03

06

07

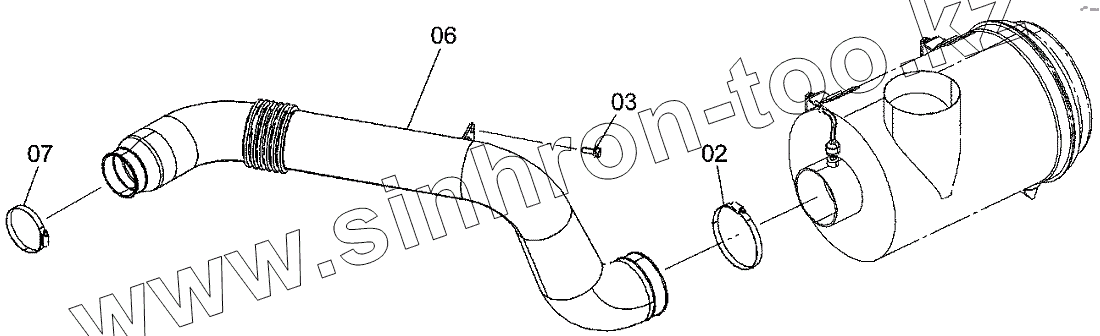

Позиция на иллюстрации	Заводской номер детали		Название детали
02	YA00017216		CLAMP,HOSE
03	J271030		BOLT, SEMS
03A	J901030		BOLT
03B	J222010		WASHER
06	4643567		DUCT, AIR
07	4285233		CLAMP, HOSE

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
