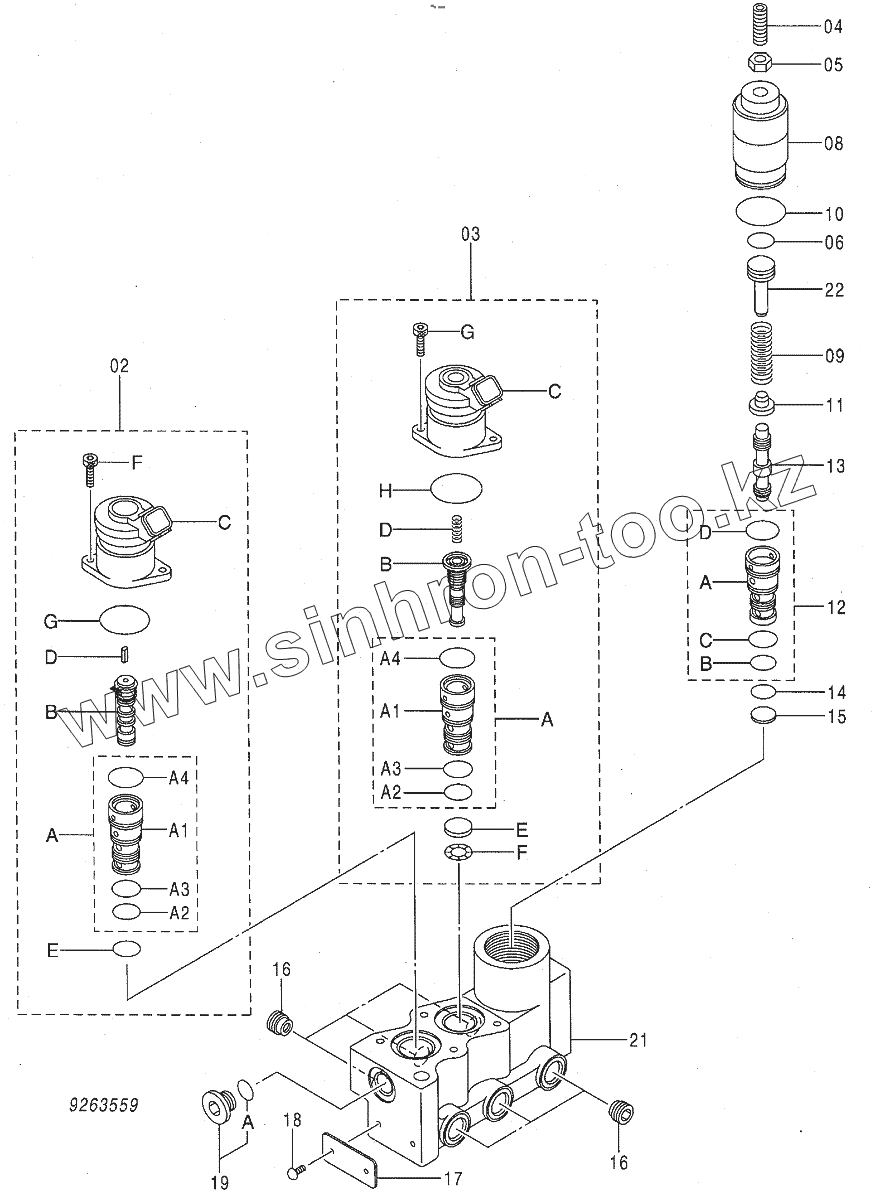

Каталог запасных частей к технике: Hitachi Zaxis 190-3. VALVE, SOLENOID
02
02A
02A1
02A2
02A3
02A4
02B
02C
02D
02E
02F
02G
03
03A
03A1
03A2
03A3
03A4
03B
03C
03D
03E
03F
03G
03H
04
05
06
08
09
10
11
12
12A
12B
12C
12D
13
14
15
16
16
17
18
19
19A
21
22
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9263559 | 9263559 | VALVE,SOLENOID | |
| 02 | 9223051 | VALVE, SOLENOID | |
| 02A | SLEEVE | SLEEVE | |
| 02A1 | SLEEVE | SLEEVE | |
| 02A2 | 4185600 | O-RING | |
| 02A3 | 4484118 | O-RING | |
| 02A4 | 4484116 | O-RING | |
| 02B | SPOOL | SPOOL | |
| 02C | SOLENOID ASS'Y | SOLENOID ASS'Y | |
| 02D | 4600895 | ROD | |
| 02E | 4489678 | WASHER | |
| 02F | M340513 | BOLT, SOCKET | |
| 02G | 4484114 | O-RING | |
| 03 | 9218234 | VALVE, SOLENOID | |
| 03A | SLEEVE | SLEEVE | |
| 03A1 | SLEEVE | SLEEVE | |
| 03A2 | 4185600 | O-RING | |
| 03A3 | 4484118 | O-RING | |
| 03A4 | 4484116 | O-RING | |
| 03B | SPOOL | SPOOL | |
| 03C | SOLENOID ASS'Y | SOLENOID ASS'Y | |
| 03D | SPRING,COMP. | SPRING,COMP. | |
| 03E | 4604450 | PLATE | |
| 03F | 4489678 | WASHER | |
| 03G | M340513 | BOLT, SOCKET | |
| 03H | 4484114 | O-RING | |
| 04 | 4618907 | SCREW,SET | |
| 05 | J950008 | NUT | |
| 06 | 985100 | O-RING | |
| 08 | 3107869 | PLUG | |
| 09 | 4653367 | SPRING,COMPRES. | |
| 10 | 4484114 | O-RING | |
| 11 | 4605274 | PLUG | |
| 12 | 9228863 | SLEEVE | |
| 12A | 2049878 | SLEEVE | |
| 12B | 4185600 | O-RING | |
| 12C | 4484118 | O-RING | |
| 12D | 4484116 | O-RING | |
| 13 | 3099104 | SPOOL | |
| 14 | 4506412 | O-RING | |
| 15 | 4605203 | PLATE | |
| 16 | 9761179 | PLUG | |
| 17 | 3096811 | NAME-PLATE | |
| 18 | M491832 | SCREW, DRIVE | |
| 19 | 9230458 | PLUG | |
| 19A | 957366 | O-RING | |
| 21 | 1033642 | HOUSING | |
| 22 | 4667327 | SEAT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
