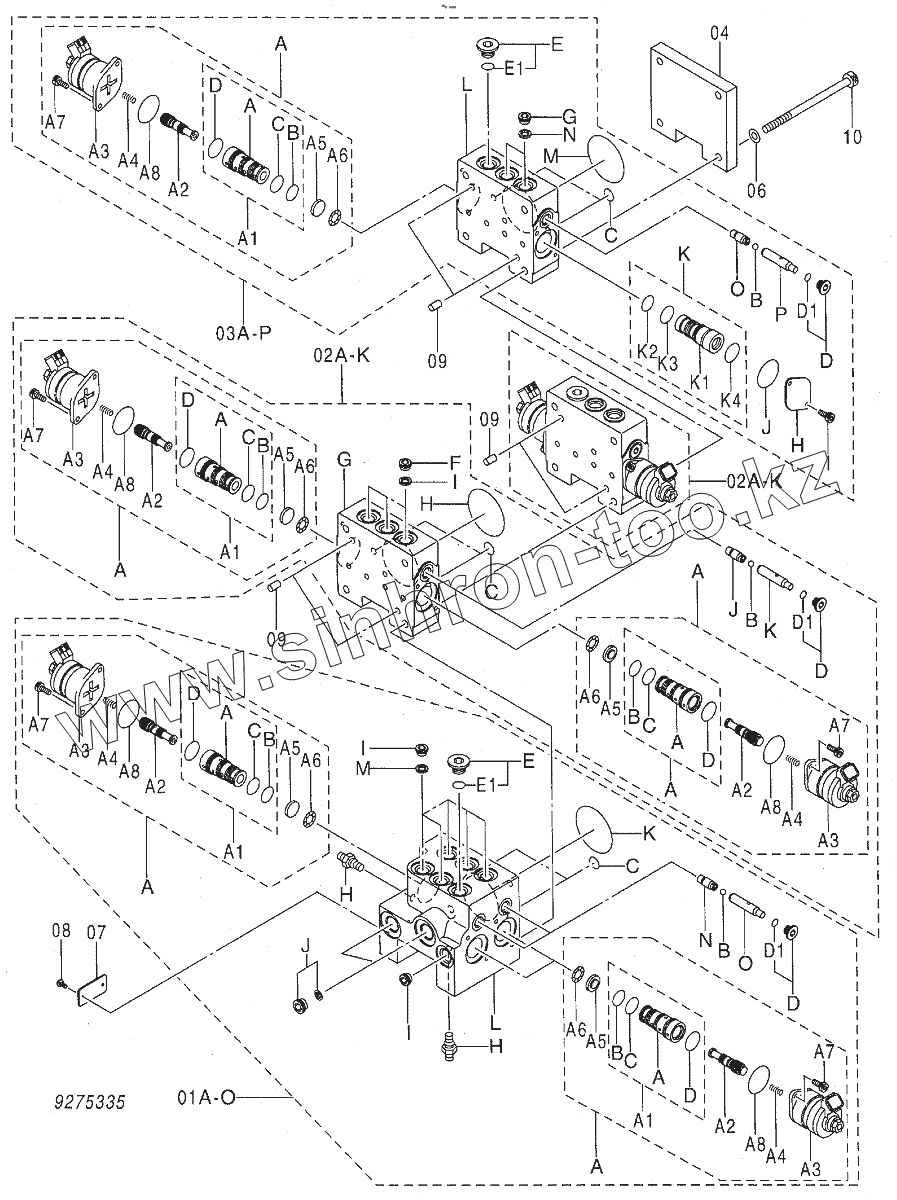

Каталог запасных частей к технике: Hitachi Zaxis 190-3. VALVE, SOLENOID
01A-0
01A
01A
01A1
01A1
01A1A
01A1A
01A1A
01A1B
01A1B
01A1C
01A1C
01A1D
01A1D
01A2
01A3
01A3
01A4
01A4
01A5
01A5
01A6
01A6
01A7
01A7
01A8
01A8
01B
01C
01D
01D1
01E
01E1
01H
01H
01I
01I
01J
0IK
01L
01M
01N
01O
02A-K
02A-K
02A
02A
02A1
02A1
02A1A
02A1A
02A1B
02A1B
02A1C
02A1C
02A1D
02A1D
02A2
02A2
02A3
02A3
02A4
02A4
02A5
02A5
02A6
02A6
02A7
02A7
02A8
02A8
02B
02C
02D
02D1
02F
02G
02H
02I
02J
02K
03A-P
03A
03A1
03A1A
03A1B
03A1C
03A1D
03A2
03A3
03A4
03A5
03A6
03A7
03A8
03B
03C
03D
03D1
03E
03E1
03G
03H
03J
03K
03K1
03K2
03K3
03K4
03L
03M
03N
03O
03P
04
06
07
08
09
09
09
10
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9275335 | 9275335 | VALVE,SOLENOID | |
| 01A-0 | 9258401 | VALVE,SOLENOID | |
| 01A | 9218234 | VALVE, SOLENOID | |
| 01A1 | SLEEVE | SLEEVE | |
| 01A1A | SLEEVE | SLEEVE | |
| 01A1B | 4185600 | O-RING | |
| 01A1C | 4484118 | O-RING | |
| 01A1D | 4484116 | O-RING | |
| 01A2 | SPOOL | SPOOL | |
| 01A3 | SOLENOID ASS'Y | SOLENOID ASS'Y | |
| 01A4 | SPRING , COMPRES. | SPRING , COMPRES. | |
| 01A5 | PLATE | PLATE | |
| 01A6 | 4489678 | WASHER | |
| 01A7 | M340513 | BOLT, SOCKET | |
| 01A8 | 4484H4 | O-RING | |
| 01B | 4602182 | BALL | |
| 01C | 939356 | O-RING | |
| 01D | 9089484 | PLUG | |
| 01D1 | 4506408 | O-RING | |
| 01E | 9230458 | PLUG | |
| 01E1 | 957366 | O-RING | |
| 01H | PLUG | PLUG | |
| 01I | 9761179 | PLUG | |
| 01J | 9228828 | PLUG | |
| 0IK | A810050 | O-RING | |
| 01L | HOUSING | HOUSING | |
| 01M | 4666096 | PLATE | |
| 01N | 4654403 | SEAT | |
| 01O | 4654404 | SEAT | |
| 02A-K | 9258402 | VALVE,SOLENOID | |
| 02A | 9218234 | VALVE, SOLENOID | |
| 02A1 | SLEEVE | SLEEVE | |
| 02A1A | SLEEVE | SLEEVE | |
| 02A1B | 4185600 | O-RING | |
| 02A1C | 4484118 | O-RING | |
| 02A1D | 4484116 | O-RING | |
| 02A2 | SPOOL | SPOOL | |
| 02A3 | SOLENOID ASS'Y | SOLENOID ASS'Y | |
| 02A4 | SPRING,COMPRES. | SPRING,COMPRES. | |
| 02A5 | PLATE | PLATE | |
| 02A6 | 4489678 | WASHER | |
| 02A7 | M340513 | BOLT, SOCKET | |
| 02A8 | 4484114 | O-RING | |
| 02B | 4602182 | BALL | |
| 02C | 939356 | O-RING | |
| 02D | 9689484 | PLUG | |
| 02D1 | 4506408 | O-RING | |
| 02F | 9761179 | PLUG | |
| 02G | HOUSING | HOUSING | |
| 02H | A810050 | O-RING | |
| 02I | 4666696 | PLATE | |
| 02J | 4654403 | SEAT | |
| 02K | 4654404 | SEAT | |
| 03A-P | 9258403 | VALVE,SOLENOID | |
| 03A | 9218234 | VALVE, SOLENOID | |
| 03A1 | SLEEVE | SLEEVE | |
| 03A1A | SLEEVE | SLEEVE | |
| 03A1B | 4185600 | O-RING | |
| 03A1C | 4484118 | O-RING | |
| 03A1D | 4484116 | O-RING | |
| 03A2 | SPOOL | SPOOL | |
| 03A3 | SOLENOID ASS'Y | SOLENOID ASS'Y | |
| 03A4 | SPRING,COMPRES. | SPRING,COMPRES. | |
| 03A5 | PLATE | PLATE | |
| 03A6 | 4489678 | WASHER | |
| 03A7 | M340513 | BOLT, SOCKET | |
| 03A8 | 4484114 | O-RING | |
| 03B | 4602182 | BALL | |
| 03C | 939356 | O-RING | |
| 03D | 9089484 | PLUG | |
| 03D1 | 4506408 | O-RING | |
| 03E | 9230458 | PLUG | |
| 03E1 | 957366 | O-RING | |
| 03G | 9761179 | PLUG | |
| 03H | 4484115 | PLATE | |
| 03I | M340513 | BOLT, SOCKET | |
| 03J | 4484114 | O-RING | |
| 03K | 9228787 | SLEEVE | |
| 03K1 | 3095747 | SLEEVE | |
| 03K2 | 4185600 | O-RING | |
| 03K3 | 4484118 | O-RING | |
| 03K4 | 4484116 | O-RING | |
| 03L | HOUSING | HOUSING | |
| 03M | A810050 | O-RING | |
| 03N | 4666096 | PLATE | |
| 03O | 4654403 | SEAT | |
| 03P | 4654404 | SEAT | |
| 04 | 4647425 | PLATE,END | |
| 06 | 4669080 | WASHER | |
| 07 | 3096811 | NAME-PLATE | |
| 08 | M491832 | SCREW, DRIVE | |
| 09 | J400613 | PIN | |
| 10 | J780808 | BOLT,SOCKET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
