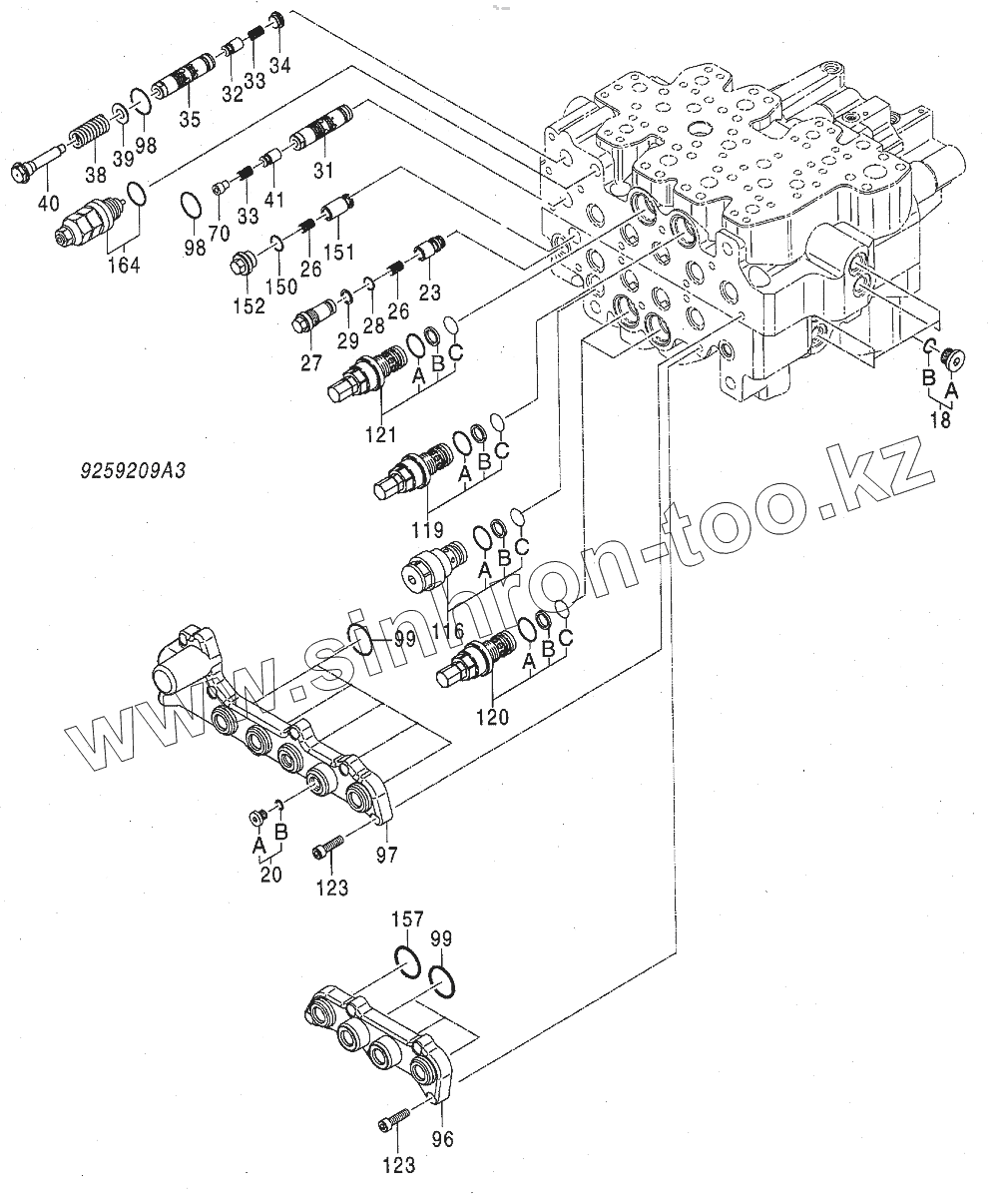

Каталог запасных частей к технике: Hitachi Zaxis 190-3. VALVE, CONTROL (3/8)
18
18A
18B
20
20A
20B
23
26
26
27
28
29
31
32
33
33
34
35
38
39
40
41
70
96
97
98
98
99
99
116
116A
116B
116C
119
119A
119B
119C
120
120A
120B
120C
121
121A
121B
121C
123
123
150
151
152
157
164
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9259209 | 9259209 | VALVE,CONTROL | |
| 18 | 9134111 | PLUG | |
| 18A | 4336167 | PLUG | |
| 18B | 4509180 | O-RING | |
| 20 | 9134110 | PLUG | |
| 20A | 4336166 | PLUG | |
| 20B | 957366 | O-RING | |
| 23 | 2046604 | VALVE, THROTTLE | |
| 26 | 2646415 | SPRING | |
| 27 | 2046449 | PLUG | |
| 28 | 4506412 | O-RING | |
| 29 | 2046494 | RING, BACK-UP | |
| 31 | 3095719 | SPOOL | |
| 32 | 2646667 | VALVE,CHECK | |
| 33 | 2046609 | SPRING | |
| 34 | 2046622 | PLUG | |
| 35 | 2046595 | SPOOL | |
| 38 | 2046611 | SPRING | |
| 39 | 2646615 | WASHER | |
| 40 | 2046619 | BOLT | |
| 41 | 3095720 | VALVE, CHECK | |
| 70 | 4477416 | BUSHING | |
| 96 | 1030778 | HOUSING | |
| 97 | 0004654 | HOUSING | |
| 98 | 2046488 | O-RING | |
| 99 | 2046491 | O-RING | |
| 116 | 9218915 | VALVE | |
| 116A | 4506428 | O-RING | |
| 116B | 2046498 | RING, BACK-UP | |
| 116C | 4506420 | O-RING | |
| 119 | 9200492 | VALVE, RELIEF | |
| 119A | 4506428 | O-RING | |
| 119B | 2046498 | RING, BACK-UP | |
| 119C | 4506420 | O-RING | |
| 120 | 9200495 | VALVE, RELIEF | |
| 120A | 4506428 | O-RING | |
| 120B | 2046498 | RING, BACK-UP | |
| 120C | 4506420 | O-RING | |
| 121 | 9200504 | VALVE,RELIEF | |
| 121A | 4506428 | O-RING | |
| 121B | 2046498 | RING, BACK-UP | |
| 121C | 4506420 | O-RING | |
| 123 | M340830 | BOLT, SOCKET | |
| 150 | 4506416 | O-RING | |
| 151 | 2046603 | VALVE, CHECK | |
| 152 | 2046623 | PLUG | |
| 157 | 2046489 | O-RING | |
| 164 | 4661357 | VALVE,RELIEF |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
