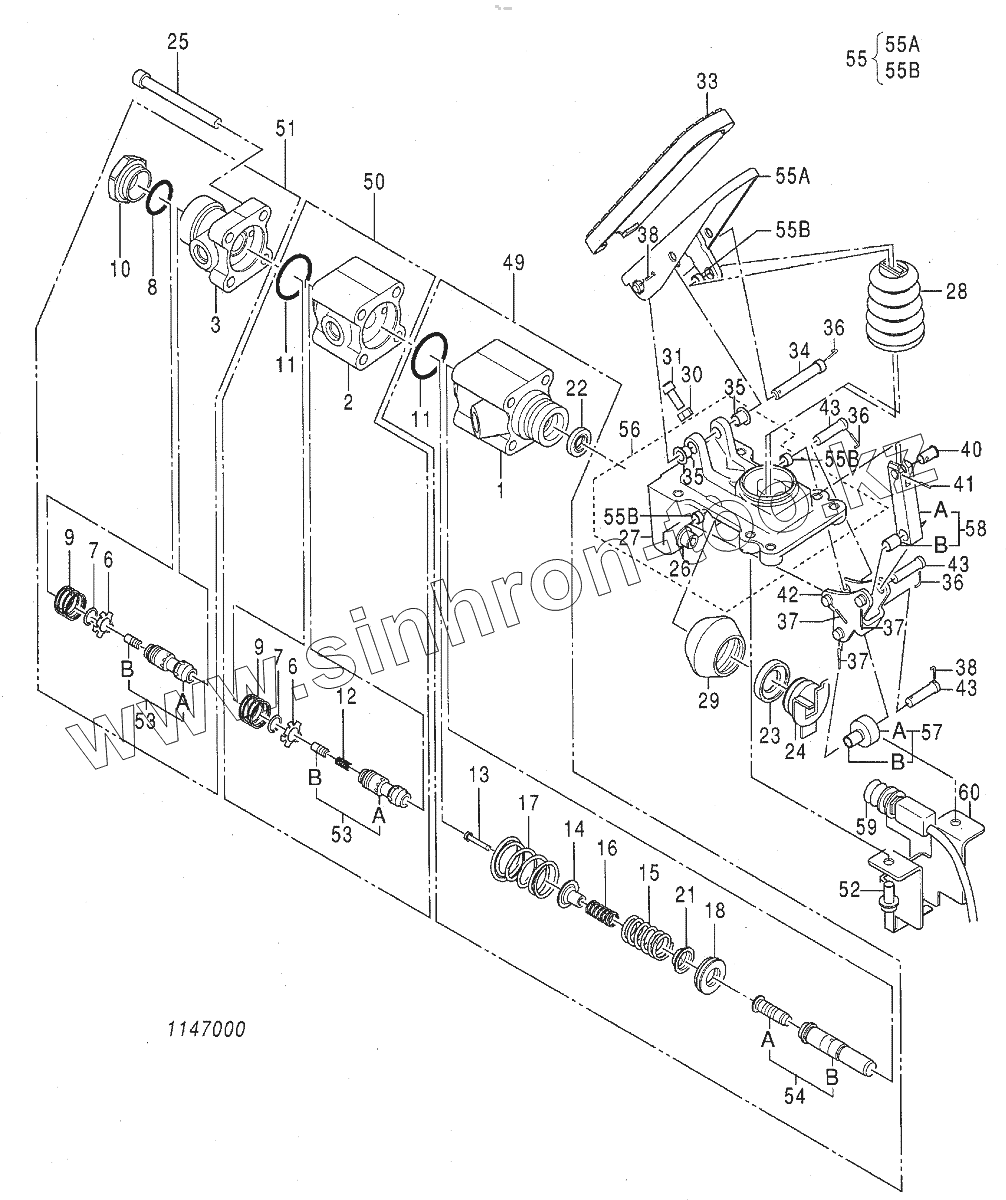

Каталог запасных частей к технике: Hitachi Zaxis 190-3. VALVE, BEAKE
1
2
3
6
6
7
7
8
9
9
10
11
11
12
13
14
15
16
17
18
21
22
23
24
25
26
27
28
29
30
31
33
34
35
35
36
36
36
37
37
37
38
38
40
41
42
43
43
43
49
50
51
52
53
53
53A
53A
53B
53B
54
54A
54B
55
55A
55A
55B
55B
55B
55B
56
57
57A
57B
58
58A
58B
59
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4651246 | 4651246 | VALVE,BEAKE | |
| 1 | FLANGE | FLANGE | |
| 2 | CYL. | CYL. | |
| 3 | CYL. | CYL. | |
| 6 | RETAINER | RETAINER | |
| 7 | 6898722 | RING,RETAINING | |
| 8 | 0898726 | O-RING | |
| 9 | 0898723 | SPRING | |
| 10 | NUT | NUT | |
| 11 | 0898719 | O-RING | |
| 12 | 6898724 | SPRING | |
| 13 | ROD | ROD | |
| 14 | HOLDER | HOLDER | |
| 15 | SPRING | SPRING | |
| 16 | SPRING | SPRING | |
| 17 | SPRING | SPRING | |
| 18 | RETAINER | RETAINER | |
| 21 | RETAINER | RETAINER | |
| 22 | 0898720 | SEAL, OIL | |
| 23 | 0898701 | STOPPER | |
| 24 | 1147001 | SEAT | |
| 25 | 0898703 | BOLT, SOCKET | |
| 26 | 0898704 | BOLT, SOCKET | |
| 27 | BRACKET | BRACKET | |
| 28 | 0898705 | BOOT | |
| 29 | 6898766 | BOOT | |
| 30 | 0898707 | NUT | |
| 31 | 0898708 | BOLT, SOCKET | |
| 33 | 0898709 | PAD | |
| 34 | 0898710 | PIN | |
| 35 | 6898737 | PUSHING | |
| 36 | 0898711 | PIN | |
| 37 | 0898712 | PIN, SPLIT | |
| 38 | 0898713 | PIN, SPLIT | |
| 40 | 0898714 | PIN | |
| 41 | 6898715 | PIN,SPRING | |
| 42 | 0898716 | LINK | |
| 43 | 0898717 | PIN | |
| 49 | 1147002 | FLANGE | |
| 50 | 1147003 | CYL. | |
| 51 | 1147004 | CYL. | |
| 52 | 1147005 | BOLT,SOCKET | |
| 53 | SPOOL | SPOOL | |
| 53A | SPOOL | SPOOL | |
| 53B | PLUNGER | PLUNGER | |
| 54 | PISTON ASS'Y | PISTON ASS'Y | |
| 54A | PISTON | PISTON | |
| 54B | ROD,PUSH | ROD,PUSH | |
| 55 | 0898728 | PEDAL ASS'Y | |
| 55A | PEDAL | PEDAL | |
| 55B | 0898729 | BUSHING | |
| 56 | 1147006 | BRACKET | |
| 57 | 0898732 | ROLLER ASS'Y | |
| 57A | ROLLER | ROLLER | |
| 57B | 0898733 | BUSHING | |
| 58 | 0898734 | YOKE ASS'Y | |
| 58A | YOKE | YOKE | |
| 58B | 0898733 | BUSHING | |
| 59 | 1147007 | SWITCH | |
| 60 | 1147008 | BRACKET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
