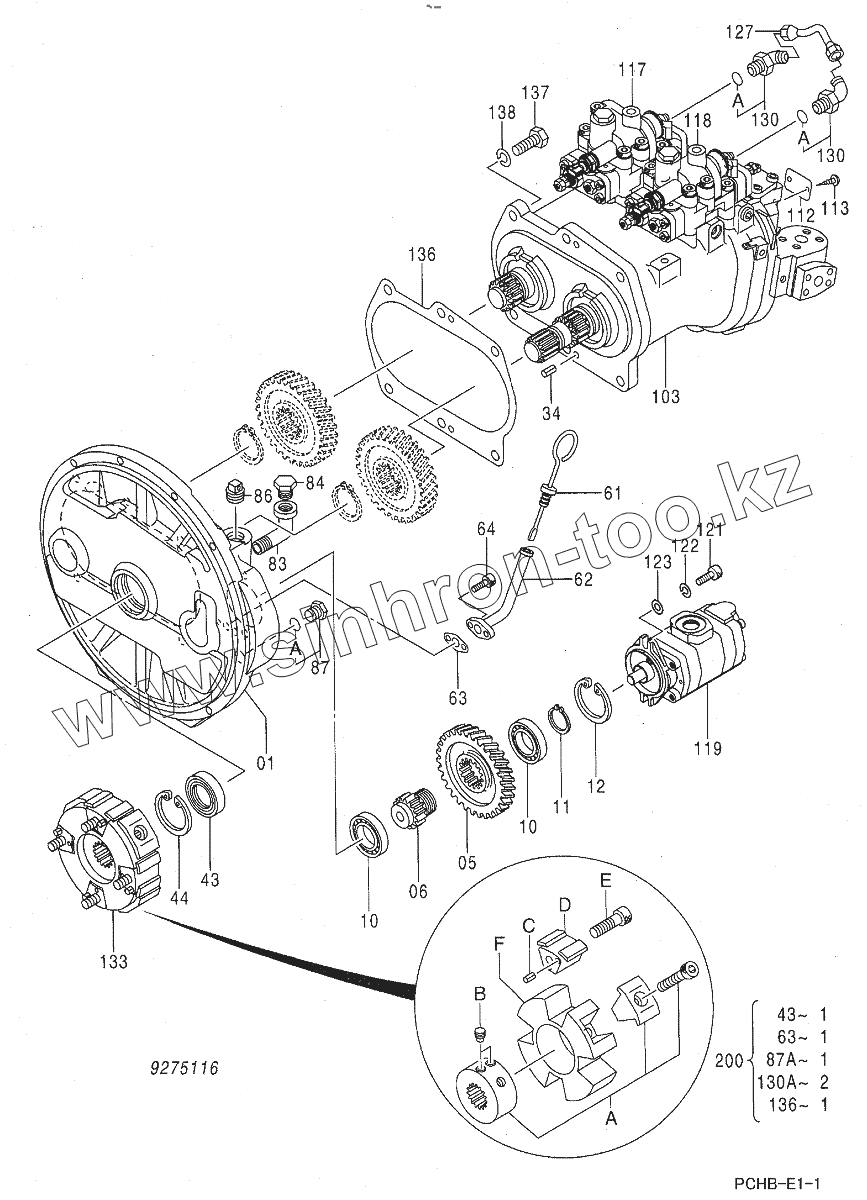

Каталог запасных частей к технике: Hitachi Zaxis 190-3. PUMP DEVICE
01
05
06
10
10
11
12
34
43
43
44
61
62
63
63
64
83
84
86
87
87A
87A
103
112
113
117
117
118
118
119
121
122
123
127
130
130
130A
130A
130A
133
133A
133B
133C
133D
133E
133F
136
136
137
138
200
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9275116 | 9275116 | PUMP DEVICE | |
| 9275115 | 9275115 | PUMP DEVICE | |
| 01 | 1033158 | CASING,GEAR | |
| 05 | 3663840 | GEAR,PILOT | |
| 06 | 3055594 | SHAFT | |
| 10 | 958740 | BRG. | |
| 11 | 962002 | RING, RETAINING | |
| 12 | 991725 | RING, RETAINING | |
| 34 | 4099290 | PIN | |
| 43 | 4310055 | SEAL | |
| 44 | 991725 | RING, RETAINING | |
| 61 | 4438059 | GAUGE | |
| 62 | 9743977 | PIPE | |
| 63 | 9742779 | PACKING | |
| 64 | M340816 | BOLT, SOCKET | |
| 83 | 94-0649 | ELBOW | |
| 84 | 4645330 | PLUG | |
| 86 | 4234782 | PLUG | |
| 87 | 4092534 | PLUG | |
| 87A | 4509180 | O-RING | |
| 103 | PUMP,UNIT | PUMP,UNIT | |
| 112 | NAME-PLATE | NAME-PLATE | |
| 113 | M492564 | SCREW, DRIVE | |
| 117 | PUMP,REGULATOR | PUMP,REGULATOR | |
| 117 | 9278445 | PUMP,REGULATOR | |
| 118 | PUMP,REGULATOR | PUMP,REGULATOR | |
| 118 | 9278446 | PUMP,REGULATOR | |
| 119 | 4649265 | PUMP,GEAR | |
| 121 | M341030 | BOLT, SOCKET | |
| 122 | 984054 | WASHER, SPRING | |
| 123 | 4114402 | WASHER | |
| 127 | 4631943 | PIPE | |
| 130 | 4293950 | ELBOW, S | |
| 130A | 957366 | O-RING | |
| 133 | 4641504 | COUPLING | |
| 133A | 4463992 | HUB | |
| 133B | 4334899 | SCREW, SET | |
| 133C | 4101345 | PIN, SPRING | |
| 133D | 4463993 | INSERT | |
| 133E | 4334894 | BOLT, SOCKET | |
| 133F | 4654760 | ELEMENT | |
| 136 | 8058352 | PACKING | |
| 137 | J901645 | BOLT | |
| 138 | A590916 | WASHER, SPRING | |
| 200 | 4451036 | KIT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
