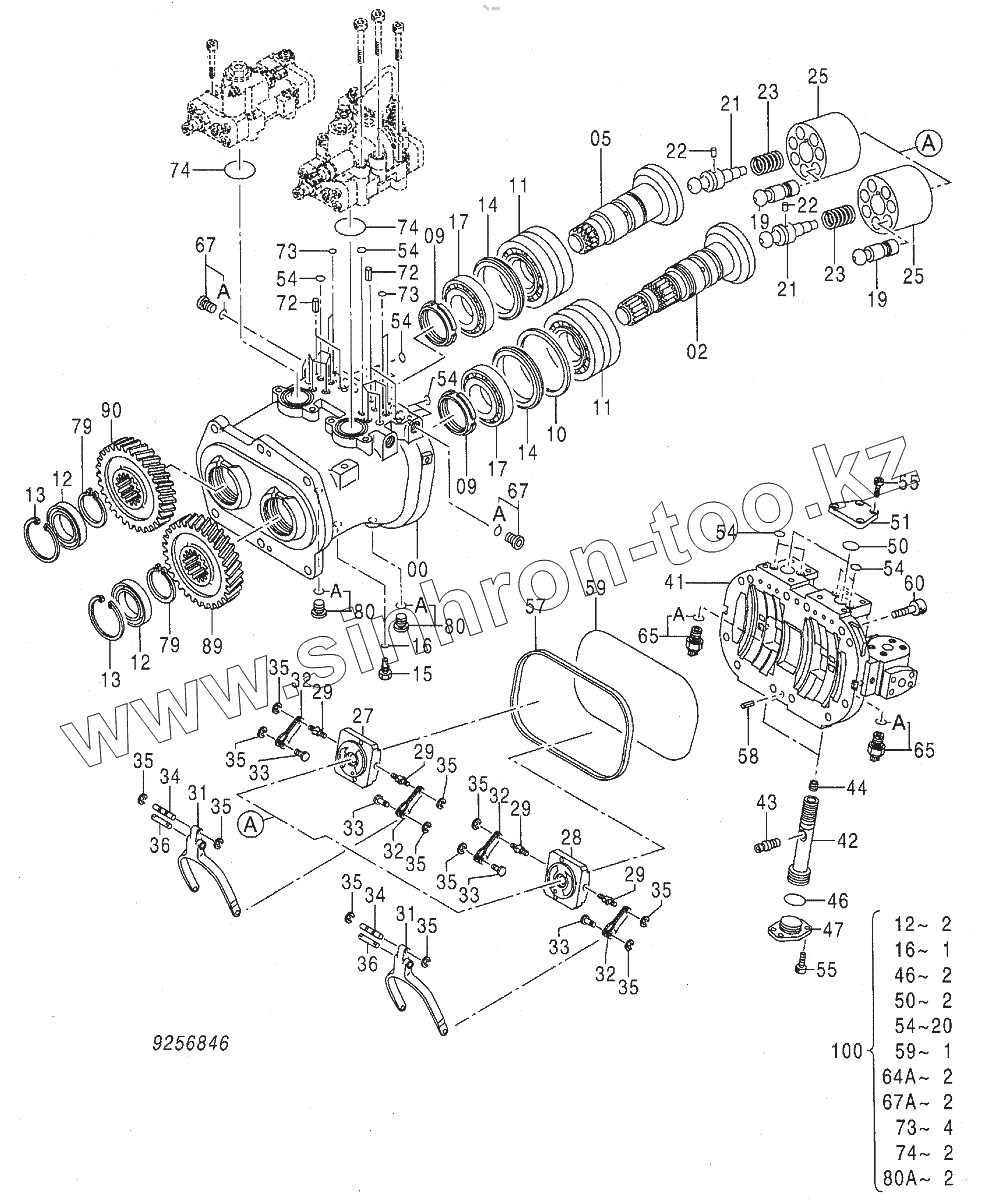

Каталог запасных частей к технике: Hitachi Zaxis 190-3. PUMP, UNIT
00
02
05
09
09
10
11
11
12
12
12
13
13
14
14
15
16
16
17
17
19
19
21
21
22
22
23
23
25
25
27
28
29
29
29
29
31
31
32
32
32
32
33
33
33
33
34
34
35
35
35
35
35
35
35
35
35
35
35
35
36
36
41
42
43
44
46
46
47
50
50
51
54
54
54
54
54
54
54
55
55
57
58
59
59
60
65
65
65A
65A
67
67
67A
67A
67A
72
72
73
73
73
74
74
74
79
79
80
80
80A
80A
80A
89
90
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| PUMP,UNIT | PUMP,UNIT | PUMP,UNIT | |
| 00 | 1032319 | CASING,PUMP | |
| 02 | 2052079 | DISC,DRIVING | |
| 05 | 2052080 | DISC,DRIVING | |
| 09 | 4178173 | NUT | |
| 10 | 4338907 | RING | |
| 11 | 4410050 | BRG.,ROL. | |
| 12 | 4333170 | SEAUOIL | |
| 13 | 4116290 | RING | |
| 14 | 4339171 | RING, SPACER | |
| 15 | 4233165 | PLUG | |
| 16 | 957366 | O-RING | |
| 17 | 4622945 | BRG.,ROL. | |
| 19 | 8050658 | PISTON | |
| 21 | 4337035 | SHAFT | |
| 22 | 4198956 | PIN | |
| 23 | 4179181 | SPRING | |
| 25 | 2052956 | ROTOR | |
| 27 | 2052073 | VALVE | |
| 28 | 2052067 | VALVE | |
| 29 | 4179179 | PIN | |
| 31 | 3104058 | LINK | |
| 32 | 9724756 | LEVER | |
| 33 | 4179177 | PIN | |
| 34 | 4179176 | PIN | |
| 35 | 4146370 | RING | |
| 36 | 4200227 | PIN | |
| 41 | 1032517 | HEAD | |
| 42 | 3069541 | PISTON | |
| 43 | 4338053 | PIN | |
| 44 | 4337812 | SCREW | |
| 46 | 4355085 | O-RING | |
| 47 | 4338060 | STOPPER | |
| 50 | 4355083 | O-RING | |
| 51 | 4338061 | STOPPER | |
| 54 | 4180349 | O-RING | |
| 55 | M340825 | BOLT, SOCKET | |
| 57 | 3070581 | RING | |
| 58 | 4099290 | PIN | |
| 59 | 4342840 | O-RING | |
| 60 | M341245 | BOLT, SOCKET | |
| 65 | 4436271 | SENSOR , PRES. | |
| 65A | 4365826 | O-RING | |
| 67 | 9134110 | PLUG | |
| 67A | 957366 | O-RING | |
| 72 | 4515041 | PIN, SPRING | |
| 73 | 4343074 | O-RING | |
| 74 | 4348665 | O-RING | |
| 79 | 4274552 | RING | |
| 80 | 9134111 | PLUG | |
| 80A | 4509180 | O-RING | |
| 89 | 3100993 | GEAR | |
| 90 | 3100994 | GEAR | |
| 100 | 4451039 | KIT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
