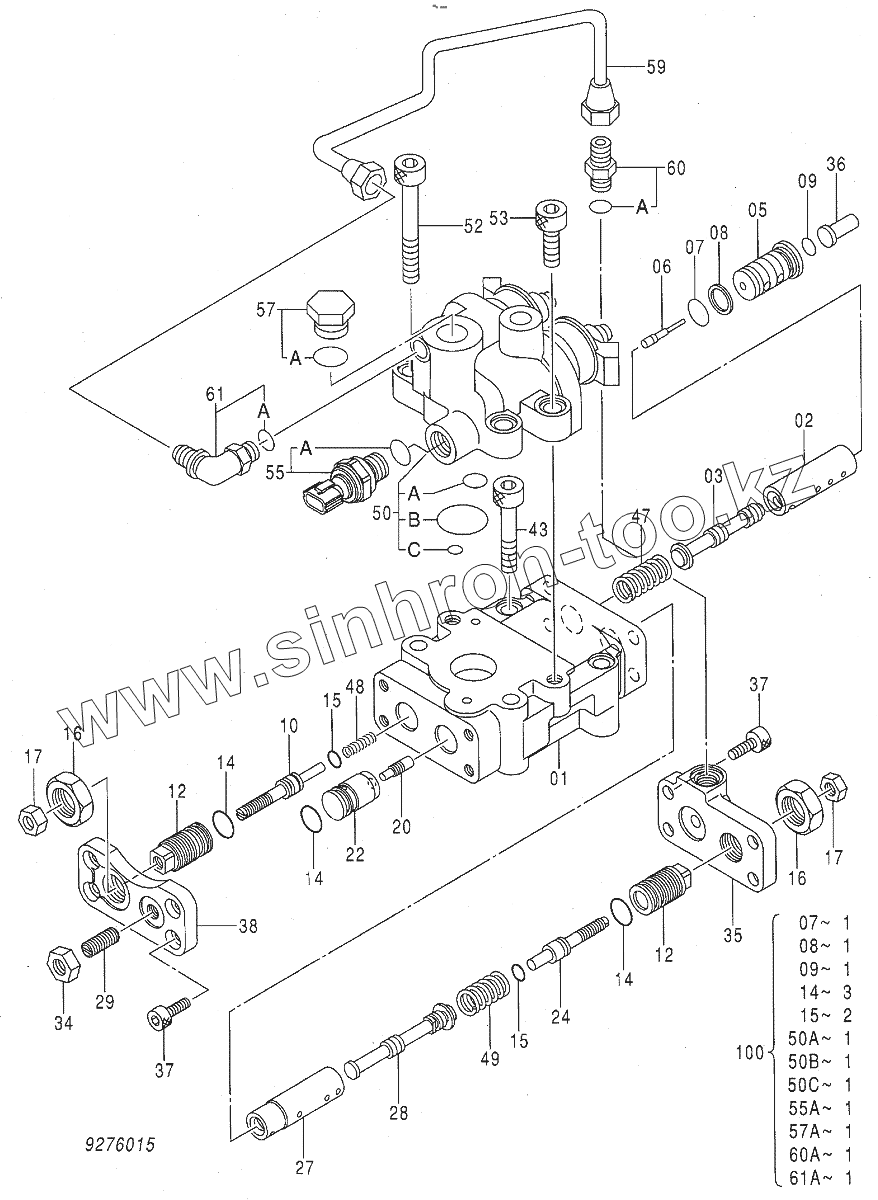

Каталог запасных частей к технике: Hitachi Zaxis 190-3. PUMP, REGULATOR (2)
01
02
03
05
06
07
07
08
08
09
09
10
12
12
14
14
14
14
15
15
15
16
16
17
17
20
22
24
27
28
29
34
35
36
37
37
38
43
47
48
49
50
50A
50A
50B
50B
50C
50C
52
53
55
55A
55A
57
57A
57A
59
60
60A
60A
61
61A
61A
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| PUMP,REGULATOR | PUMP,REGULATOR | PUMP,REGULATOR | |
| 01 | 1026282 | CASING | |
| 02 | 4179155 | SLEEVE | |
| 03 | 4179156 | SPOOL | |
| 05 | 4375722 | CYL.,LOAD | |
| 06 | 4360590 | PISTON | |
| 07 | 4150302 | O-RING | |
| 08 | 4085607 | RING, BACK-UP | |
| 09 | 4297380 | O-RING | |
| 10 | 4368619 | STOPPER | |
| 12 | 4179161 | STOPPER | |
| 14 | 4342843 | O-RING | |
| 15 | 4342841 | O-RING | |
| 16 | 4068898 | NUT | |
| 17 | M500807 | NUT | |
| 20 | 4179171 | PISTON | |
| 22 | 4451498 | CYL. | |
| 24 | 4347107 | STOPPER, INNER | |
| 27 | 4346522 | SLEEVE | |
| 28 | 4346521 | SPOOL | |
| 29 | 4265964 | SCREW, SET | |
| 34 | J950010 | NUT | |
| 35 | 3103629 | COVER, REAR | |
| 36 | 4611012 | PISTON | |
| 37 | M340820 | BOLT, SOCKET | |
| 38 | 4433327 | COVER | |
| 43 | M341056 | BOLT, SOCKET | |
| 47 | 4616531 | SPRING,COMPRES. | |
| 48 | 4616533 | SPRING,COMPRES. | |
| 49 | 4350928 | SPRING, COMPRES. | |
| 50 | 9274856 | VALVE,SOLENOID | |
| 50A | 4150302 | O-RING | |
| 50B | 4153534 | O-RING | |
| 50C | 4153087 | O-RING | |
| 52 | N341080 | BOLT,SOCKET | |
| 53 | M341030 | BOLT, SOCKET | |
| 55 | 4436536 | SENSOR, PRES. | |
| 55A | 4153095 | O-RING | |
| 57 | 4174541 | PLUG | |
| 57A | 4506418 | O-RING | |
| 59 | 4629372 | PIPE | |
| 60 | 4255304 | FITTING, PIPE | |
| 60A | 957366 | O-RING | |
| 61 | 4293950 | ELBOW, S | |
| 61A | 957366 | O-RING | |
| 100 | 4455733 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
