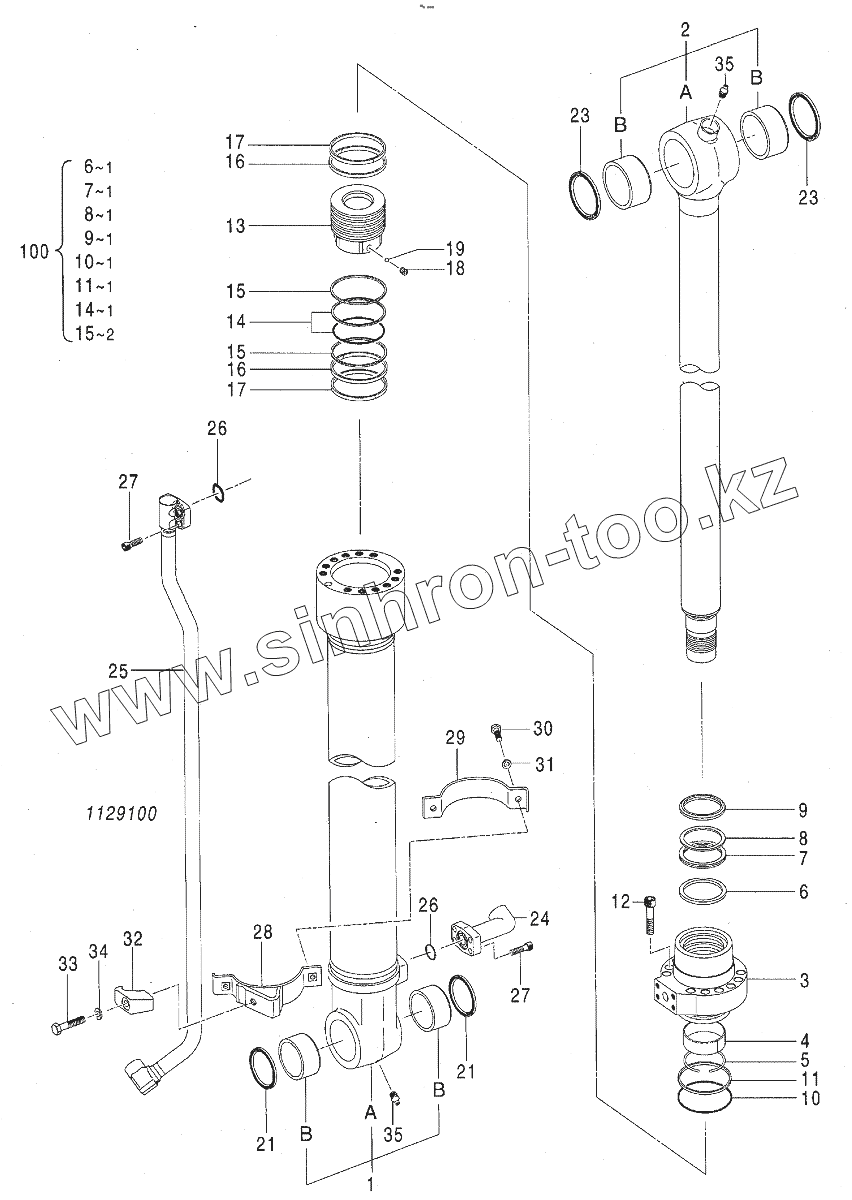

Каталог запасных частей к технике: Hitachi Zaxis 190-3. CYL., BUCKET
1
1A
1B
1B
2
2A
2B
2B
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
15
15
16
16
17
17
18
19
21
21
23
23
24
25
26
26
27
27
28
29
30
31
32
33
34
35
35
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4645304 | 4645304 | CYL.,BUCKET | |
| 1 | 1129101 | TUBE,CYL. ASS'Y | |
| 1A | TUBE,CYL. | TUBE,CYL. | |
| 1B | 4362025 | BUSHING | |
| 2 | 1129102 | ROD,PISTON ASS'Y | |
| 2A | ROD,PISTON | ROD,PISTON | |
| 2B | 4352398 | BUSHING | |
| 3 | 0789905 | HEAD, CYL | |
| 4 | 0310504 | BUSHING | |
| 5 | 0240904 | RING, RETAINING | |
| 6 | 6789968 | RING | |
| 7 | 0789909 | PACKING,U-RING | |
| 8 | 0240912 | RING, BACK-UP | |
| 9 | 0667504 | RING, WIPER | |
| 10 | A811100 | O-RING | |
| 11 | 0310506 | RING, BACK-UP | |
| 12 | M341465 | BOLT,SOCKET | |
| 13 | 1119403 | PISTON | |
| 14 | 0310508 | RING, SEAL | |
| 15 | 0408809 | RING, BACK-UP | |
| 16 | 6907867 | RING,SLIDE | |
| 17 | 0310510 | RING, SLIDE | |
| 18 | 0310612 | SCREW, SET | |
| 19 | 0111818 | BALL, STEEL | |
| 21 | 4065687 | SEAL, DUST | |
| 23 | 4067902 | SEAL, DUST | |
| 24 | 0309312 | JOINT | |
| 25 | 1129103 | PIPE | |
| 26 | 4506430 | O-RING | |
| 27 | M341030 | BOLT, SOCKET | |
| 28-34 | 1119408 | KIT,BAND | |
| 28 | 1119405 | BAND | |
| 29 | 0310707 | BAND | |
| 30 | J901035 | BOLT | |
| 31 | A590910 | WASHER, SPRING | |
| 32 | 6309627 | HOLDER | |
| 33 | 0667013 | BOLT | |
| 34 | 0208516 | WASHER, SPRING | |
| 35 | J75481 | FITTING, GREASE | |
| 100 | 4663493 | KIT,SEAL |
