Каталог запасных частей к технике: Hitachi Zaxis 190-3. CYL., BOOM (L) (MONO BOOM)
1
1A
1B
1B
2
2A
2B
2B
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
16
16
17
17
17
18
18
19
19
20
21
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
37
100

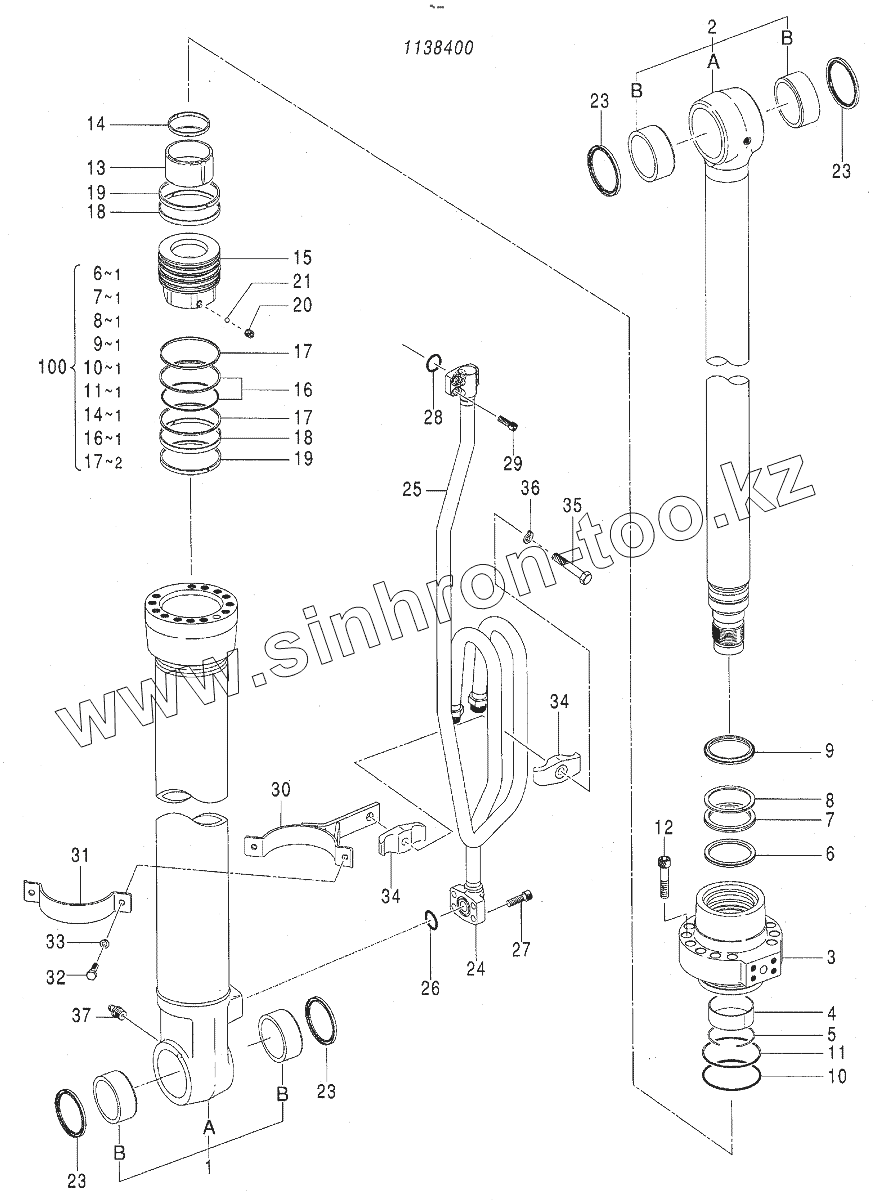

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4646630 | 4646630 | CYL.,BOOM | |
| 1 | 1138401 | TUBE,CYL ASS'Y | |
| 1A | TUBE,CYL | TUBE,CYL | |
| 1B | 4352398 | BUSHING | |
| 2 | 1138202 | ROD,PISTON ASS'Y | |
| 2A | ROD,PISTON | ROD,PISTON | |
| 2B | 4352398 | BUSHING | |
| 3 | 0788905 | HEAD | |
| 4 | 0309004 | BUSHING | |
| 5 | 0208304 | RING.'RETAINING | |
| 6 | 0788911 | RING | |
| 7 | 0788912 | PACKING,URING | |
| 8 | 0208306 | RING, BACK-UP | |
| 9 | 0667204 | RING, WIPER | |
| 10 | A811115 | O-RING | |
| 11 | 0261310 | RING, BACK-UP | |
| 12 | 0409705 | BOLT, SOCKET | |
| 13 | 0880803 | BRG., CUSHION | |
| 14 | 0667205 | SEAL, CUSHION | |
| 15 | 0998903 | PISTON | |
| 16 | 0258205 | RING, SEAL | |
| 17 | 0409709 | RING, BACKUP | |
| 18 | 0998904 | RING,SLIDE | |
| 19 | 0261308 | RING, SLIDE | |
| 20 | 0309011 | SCREW, SET | |
| 21 | 0117767 | BALL, STEEL | |
| 23 | 4067902 | SEAL, DUST | |
| 24 | 1138402 | PIPE | |
| 25 | 1138403 | PIPE | |
| 26 | 984614 | O-RING | |
| 27 | M341236 | BOLT, SOCKET | |
| 28 | 4506430 | O-RING | |
| 29 | M341030 | BOLT, SOCKET | |
| 30-36 | 1138206 | KIT,BAND | |
| 30 | 1138207 | BAND | |
| 31 | 0686469 | BAND | |
| 32 | J901035 | BOLT | |
| 33 | A590910 | WASHER, SPRING | |
| 34 | 0236915 | HOLDER | |
| 35 | 0254312 | BOLT | |
| 36 | A590914 | WASHER, SPRING | |
| 37 | J75481 | FITTING, GREASE | |
| 100 | 4661485 | KIT,SEAL |
