Каталог запасных частей к технике: Hitachi Zaxis 190-3. CYL., ARM (2P-BOOM)
1
1A
1B
1B
2
2A
2B
2B
3
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
14
15
16
16
17
17
17
18
18
19
19
20
21
22
23
23
24
25
27
27
27
27
28
29
30
31
32
33
34
35
36
37
38
38
39
40
41
100

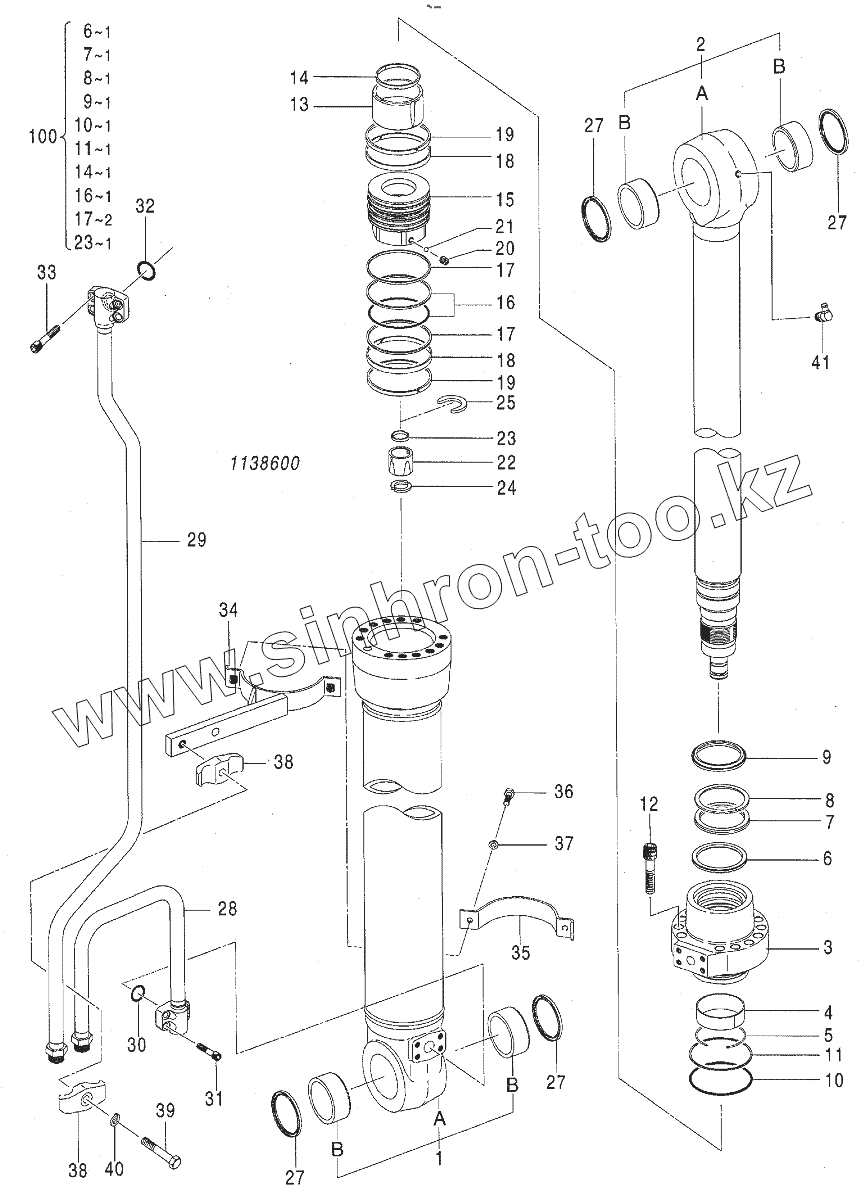

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4647567 | 4647567 | CYL.,ARM | |
| 1 | 1138601 | TUBE,CYL. ASS`Y | |
| 1A | TUBE,CYL. | TUBE,CYL. | |
| 1B | 4352398 | BUSHING | |
| 2 | 1128302 | ROD,PISTON ASS'Y | |
| 2A | ROD,PISTON | ROD,PISTON | |
| 2B | 4352398 | BUSHING | |
| 3 | 0871310 | HEAD,CYL | |
| 4 | 0325904 | BUSHING | |
| 5 | 0237407 | RING, RETAINING | |
| 6 | 1119303 | RING | |
| 7 | 1119304 | PACKING,U-RING | |
| 8 | 0237419 | RING, BACKUP | |
| 9 | 4428492 | RING, WIPER | |
| 10 | A811120 | O-RING | |
| 11 | 6223704 | RING,BACK-UP | |
| 12 | 0409705 | BOLT, SOCKET | |
| 13 | 0871304 | BRG.,CUSHION | |
| 14 | 1128303 | SEAL,CUSHION | |
| 15 | 1128304 | PISTON | |
| 16 | 0223706 | RING | |
| 17 | 0496706 | RING | |
| 18 | 0926604 | RING, SLIDE | |
| 19 | 0223713 | RING | |
| 20 | 0309011 | SCREW, SET | |
| 21 | 0111707 | BALL, STEEL | |
| 22 | 0409913 | BRG., CUSHION | |
| 23 | 0667411 | SEAL, CUSHION | |
| 24 | 0409915 | STOPPER | |
| 25 | 0409916 | RING | |
| 27 | 4667902 | SEAL,DUST | |
| 28 | 1138602 | PIPE | |
| 29 | 1138603 | PIPE | |
| 30 | 4506430 | O-RING | |
| 31 | M341030 | BOLT, SOCKET | |
| 32 | 984614 | O-RING | |
| 33 | M341236 | BOLT, SOCKET | |
| 34-40 | 1138605 | KIT,BAND | |
| 34 | 1138604 | BAND | |
| 35 | 4468607 | BAND | |
| 36 | J901035 | BOLT | |
| 37 | A590910 | WASHER, SPRING | |
| 38 | 0236915 | HOLDER | |
| 39 | 0254312 | BOLT | |
| 40 | A590914 | WASHER, SPRING | |
| 41 | 0225769 | FITTING,GREASE | |
| 100 | 4667663 | KIT,SEAL |
