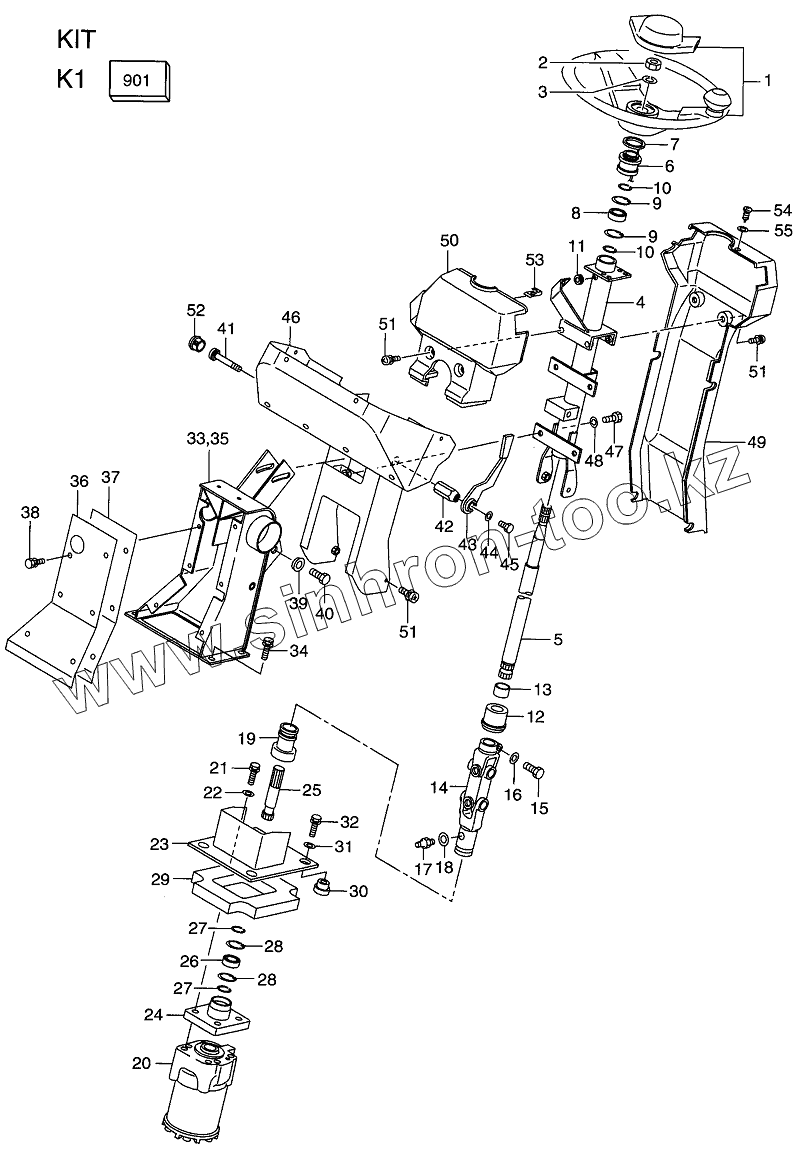

Каталог запасных частей к технике: Hitachi LX-160-7. STEERING WHEEL UNIT
1
2
3
4
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
51
51
52
53
54
55
901
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 26794-10211 | 26794-10211 | STEERING COLUMN ASSY | |
| 1 | 26554-12001 | STEERING WHEEL | |
| 2 | 01401-00014 | NUT | |
| 3 | 02010-00014 | WASHER | |
| 4 | 26564-12021 | COLUMN | |
| 4 | 26564-10221 | COLUMN ASSY | |
| 5 | 26564-12031 | SHAFT | |
| 6 | 26264-12081 | BUSHING | |
| 7 | 26094-10401 | WASHER | |
| 8 | 26314-12161 | BEARING | |
| 9 | 02110-00037 | RING, SNAP | |
| 10 | 02100-00020 | RING, SNAP | |
| 11 | 26194-12081 | GROMMET | |
| 12 | 26564-12061 | BUSHING | |
| 13 | 26564-12081 | BUSHING | |
| 14 | 26794-12001 | JOINT | |
| 15 | 01106-08020 | BOLT | |
| 16 | 02000-00008 | WASHER | |
| 17 | 04901-00100 | FITTING, GREASE | |
| 18 | 02000-00006 | WASHER | |
| 19 | 26564-12201 | BOOT | |
| 20 | 26564-12001 | ORBITROL | |
| 20 | 26564-12211 | ORBITROL ASSY | |
| 21 | 01183-10040 | BOLT&WASHER | |
| 22 | 02000-00010 | WASHER | |
| 23 | 26564-12181 | BRACKET | |
| 24 | 26564-12161 | FLANGE | |
| 25 | 26564-12171 | SHAFT | |
| 26 | 26314-12161 | BEARING | |
| 27 | 02100-00020 | RING, SNAP | |
| 28 | 02110-00037 | RING, SNAP | |
| 29 | 26564-12191 | MAT, SOUND PROOF | |
| 30 | 26407-32001 | RUBBER, MOUNT | |
| 31 | 26606-52721 | WASHER | |
| 32 | 01183-10040 | BOLT&WASHER | |
| 33 | 26564-12012 | SUPPORT, HANDLE | |
| 34 | 01183-10025 | BOLT&WASHER | |
| 35 | 26564-12151 | MAT | |
| 36 | 26564-12131 | PLATE | |
| 37 | 26564-12141 | MAT | |
| 38 | 01183-08016 | BOLT&WASHER | |
| 39 | 216G4-12101 | BUSHING | |
| 40 | 216G4-12111 | BOLT | |
| 41 | 215Е4-12211 | BOLT | |
| 42 | 26754-12041 | NUT | |
| 43 | 26754-12051 | LEVER | |
| 44 | 214А4-12161 | WASHER | |
| 45 | 215Е4-12231 | BOLT | |
| 46 | 26564-10211 | COVER | |
| 47 | 01183-10020 | BOLT&WASHER | |
| 48 | 02000-00010 | WASHER | |
| 49 | 26554-12011 | COVER | |
| 50 | 26554-12021 | COVER | |
| 51 | 01033-06016 | SCREW | |
| 52 | 26754-12241 | PLUG, HOLE | |
| 53 | 26506-92281 | NUT, SPEED | |
| 54 | 01044-05012 | SCREW | |
| 55 | 02000-20005 | WASHER | |
| 901 | 26754-10421 | HANDLE LOCK KIT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
