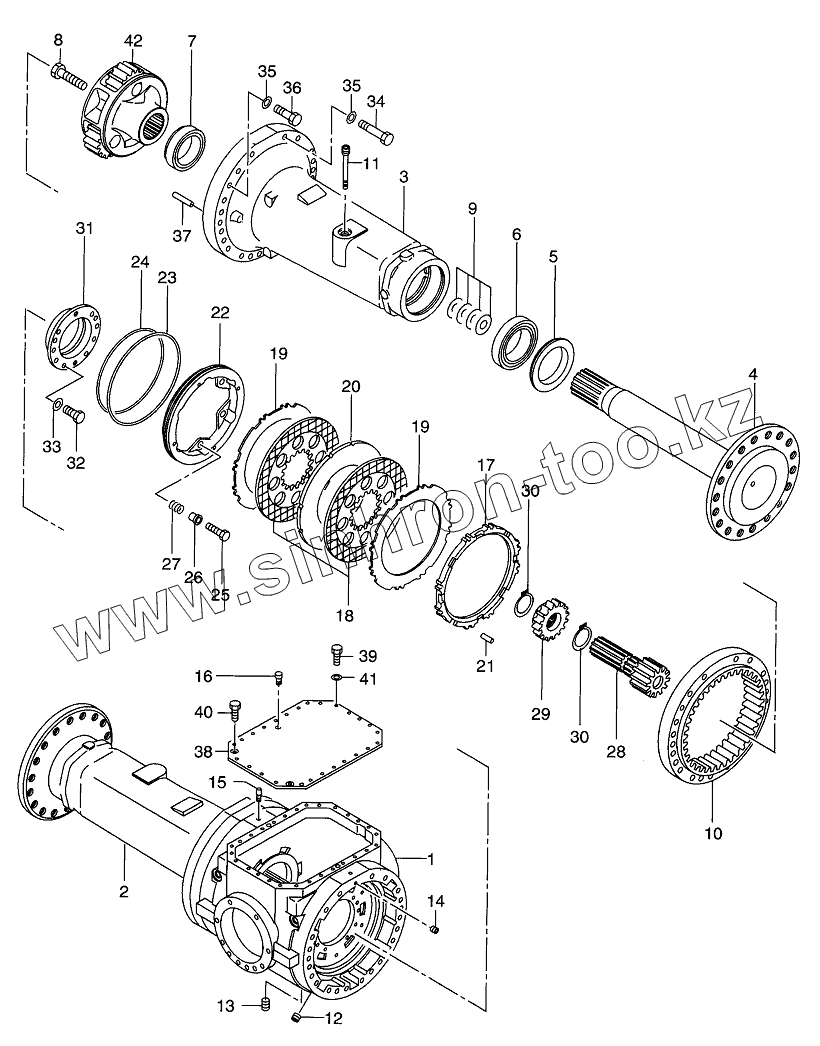

Каталог запасных частей к технике: Hitachi LX-160-7. DRIVE AXLE (REAR) (1/2)
16673-00021
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
35
36
37
38
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 16673-00021 | 16673-00021 | AXLE ASSY | |
| 1 | 16763-02583 | BODY, DIFF | |
| 2 | 16673-02051 | TUBE, RH | |
| 3 | 16673-02061 | TUBE, LH | |
| 4 | 16763-02061 | SHAFT | |
| 5 | 16603-03611 | SEAL, OIL | |
| 6 | 16763-02071 | BEARING | |
| 7 | 202N6-14171 | BEARING | |
| 8 | 16503-02061 | BOLT | |
| 9 | 16443-02101 | SHIM | |
| 9 | 16443-02111 | SHIM | |
| 9 | 16443-02121 | SHIM | |
| 9 | 16443-02131 | SHIM | |
| 10 | 16673-02101 | GEAR, RING | |
| 11 | 16763-02201 | GAUGE, LEVEL | |
| 12 | 14813-82451 | PLUG | |
| 13 | 14813-82491 | PLUG | |
| 14 | 14813-82411 | PLUG | |
| 15 | 26315-43371 | BLEEDER | |
| 16 | 15573-42151 | BREATHER, AIR | |
| 17 | 16673-02111 | PLATE, END | |
| 18 | 16763-02101 | DISCBRAKE | |
| 19 | 16763-02121 | RING, BRAKE | |
| 20 | 16763-02521 | RING, BRAKE | |
| 21 | 16763-02561 | PIN | |
| 22 | 16763-02402 | PISTON | |
| 23 | 16763-02411 | DRING | |
| 24 | 16763-02421 | DRING | |
| 25 | 16763-02371 | BOLT | |
| 26 | 16763-02381 | ADAPTER | |
| 27 | 16763-02391 | SPRING | |
| 28 | 16673-02081 | GEAR&SHAFT | |
| 29 | 16783-02491 | HUB, DISC | |
| 30 | 02100-00060 | RING, SNAP | |
| 31 | 16763-02191 | RETAINER, BEARING | |
| 32 | 01106-12035 | BOLT | |
| 33 | 26063-02111 | WASHER | |
| 34 | 01106-16130 | BOLT | |
| 35 | 190АЗ-02051 | WASHER | |
| 36 | 01116-16080 | BOLT | |
| 37 | 02215-16095 | PIN | |
| 38 | 16763-02602 | COVER | |
| 39 | 01106-12030 | BOLT | |
| 40 | 01170-12020 | WASHER | |
| 41 | 26063-02111 | WASHER | |
| 42 | 16673-00201 | PLANET CARRIER |
