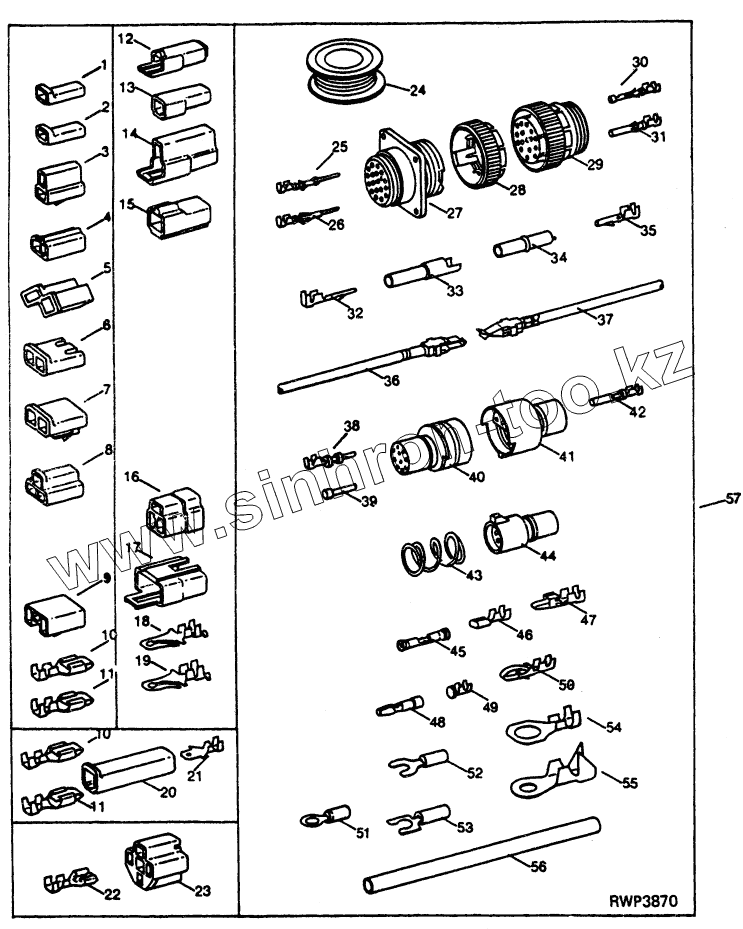

Каталог запасных частей к технике: Hitachi LX-150-2. WIRING HARNESS AND SWITCHES - WIRE LEAD KIT

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
24
24
24
24
25
26
27
28
28
28
28
29
30
31
32
33
34
35
36
37
38
39
40
40
40
40
40
41
41
41
41
41
42
43
44
45
45
45
45
46
47
48
49
50
51
51
51
51
52
52
53
54
54
55
56
56
57
Позиция на иллюстрации Заводской номер детали Название детали
1 Т28583 RECEPTACLE
2 М43835 FLAT CONNECTOR
3 R77476 CONNECTOR
4 R77477 CONNECTOR
5 R77479 CONNECTOR
6 R77480 CONNECTOR
7 R77481 CONNECTOR
8 R77482 CONNECTOR
9 Н104855 CONNECTOR
10 U46662 TERMINAL
11 N115096 TERMINAL
12 Т28585 TERMINAL
13 R77475 CONNECTOR
14 Т28586 CONNECTOR
15 R77478 CONNECTOR
16 R77483 CONNECTOR
17 R48887 RECEPTACLE
18 Т34067 TERMINAL
19 R77484 TERMINAL
20 U46370 CONNECTOR
21 R77485 TAB
22 R77486 TERMINAL
23 R77487 CONNECTOR
24 R66320 WIRING LEAD
24 R77501 WIRE
24 R77500 WIRE
24 R77499 WIRE
24 R77498 WIRE
24 R66321 WIRING LEAD
25 R77462 PIN CONTACT
26 R77464 PIN CONTACT
27 R77456 RECEPTACLE
28 R77458 CONNECTOR
28 R77461 CONNECTOR
28 R77460 CONNECTOR
28 R77459 CONNECTOR
29 R77457 ELECTRICAL PLUG
30 R77463 SOCKET CONTACT
31 R77465 SOCKET CONTACT
32 R77468 TERMINAL
33 R77466 CONNECTOR
34 R77467 CONNECTOR
35 R77469 TERMINAL
36 RE11156 TERMINAL
37 RE11157 TERMINAL
38 R70222 PIN CONTACT
39 R70221 ELECTRICAL PLUG
40 R70219 PLUG
40 R70217 PLUG
40 R70215 PLUG
40 R70213 PLUG
40 R70211 CONNECTOR
41 R70216 RECEPTACLE
41 R70210 RECEPTACLE
41 R70212 RECEPTACLE
41 R70214 RECEPTACLE
41 R70218 RECEPTACLE
42 AR91793 SOCKET CONTACT
43 R30378 SPRING
44 R77474 CONNECTOR
45 R77473 TERMINAL
45 R77472 TERMINAL
45 R77470 TERMINAL
45 R77471 TERMINAL
46 R65607 TERMINAL
47 U46664 TERMINAL
48 R32026 TERMINAL
49 R65602 CONTACT
50 R70220 TERMINAL
51 R77490 TERMINAL
51 R77488 TERMINAL
51 R77493 TERMINAL
51 R77489 TERMINAL
52 R77496 TERMINAL
52 R77495 TERMINAL
53 R77497 TERMINAL
54 R77491 TERMINAL
54 R77492 TERMINAL
55 R77494 TERMINAL
56 R77502 TUBE
56 R77503 TUBE
57 RE11154 KIT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
