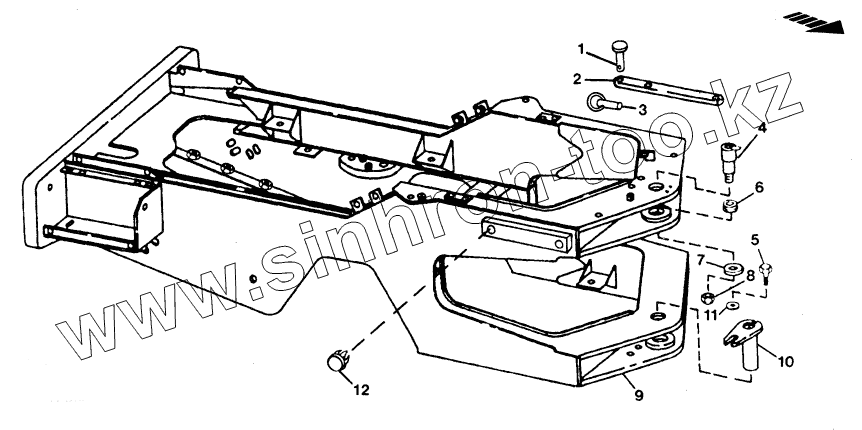

Каталог запасных частей к технике: Hitachi LX-150-2. FRAME INSTALLATION - ENGINE FRAME

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано WHEEL ASSEMBLY WHEEL ASSEMBLY WHEEL ASSEMBLY WHEEL ASSEMBLY WHEEL ASSEMBLY DIFFERENTIAL OR BEVEL DRIVE - INPUT YOKE (FRONT AND REAR) (RE35714) (OC-1) DIFFERENTIAL OR BEVEL DRIVE - YOKE DISCONNECT - CONTINUED (RE37967) (OC-A) DIFFERENTIAL OR BEVEL DRIVE - SPIRAL BEVEL INPUT PINION AND RING GEAR SET (RE35711)(OC-3) DIFFERENTIAL OR BEVEL DRIVE - SPIRAL BEVEL INPUT PINION AND RING GEAR SET (RE35712) (OC-3) DIFFERENTIAL OR BEVEL DRIVE - SPIRAL BEVEL INPUT PINION AND RING GEAR SET (RE50967) (OC-3) DIFFERENTIAL OR BEVEL DRIVE - INPUT QUILL ASSEMBLY -(RE39002) (OC-1) (REAR) DIFFERENTIAL OR BEVEL DRIVE - INPUT QUILL ASSEMBLY - CONTINUED (RE39003) (OC-1) (FRONT) DIFFERENTIAL OR BEVEL DRIVE - INPUT QUILL - CONTINUED (RE39813) (OC-A) (FRONT) DIFFERENTIAL OR BEVEL DRIVE - OSCILLATING DUAL PIVOT - CONTINUED (RE44160) (OC-A) (REAR) DIFFERENTIAL OR BEVEL DRIVE - DIFFERENTIAL CASE - CONTINUED (RE38999) (OC-1) DIFFERENTIAL OR BEVEL DRIVE - DIFFERENTIAL CASE OIL LINES (RE44413) (OC-4) (FRONT AND REAR) DIFFERENTIAL OR BEVEL DRIVE - DIFFERENTIAL BEARING QUILLS (STANDARD DIFFERENTIAL) (RE44166) (OC-1) DIFFERENTIAL OR BEVEL DRIVE - DIFFERENTIAL BEARING QUILLS (NO-SPIN DIFFERENTIAL) (RE44167) (OC-2) DIFFERENTIAL OR BEVEL DRIVE - DIFFERENTIAL BEARING QUILLS (DIFFERENTIAL LOCK) (RE44413) (OC-3) DIFFERENTIAL OR BEVEL DRIVE - STANDARD DIFFERENTIAL (RE44166) (OC-1) DIFFERENTIAL OR BEVEL DRIVE - STANDARD DIFFERENTIAL (NO-SPIN) (RE44167) (OC-2) DIFFERENTIAL OR BEVEL DRIVE - STANDARD DIFFERENTIAL - CONTINUED (DIFFERENTIAL LOCK) (RE44413) (OC-4) DIFFERENTIAL OR BEVEL DRIVE - DIFFERENTIAL SUPPORTS AND LUBRICATION LINES INPUT DRIVE SHAFTS AND U-JOINTS - TRANSMISSION TO FRONT DIFFERENTIAL UNIVERSAL JOINTS (WITHOUT DISCONNECT) INPUT DRIVE SHAFTS AND U-JOINTS - TRANSMISSION TO FRONT DIFFERENTIAL UNIVERSAL JOINTS (WITH DISCONNECT) INPUT DRIVE SHAFTS AND U-JOINTS - TRANSMISSION TO REAR AXLE UNIVERSAL POWERED WHEEL AXLE - AXLE STOP AXLES - DRIVE AXLE HOUSING AND SUPPORT AXLE, SHAFT, BEARINGS AND REDUCTION GEARS - PLANETARY FINAL DRIVE - CONTINUED (RE44172) (OC-3) AXLE, SHAFT, BEARINGS AND REDUCTION GEARS - AXLE HOUSING AND SHAFT - CONTINUED (RE48700) (REAR) AXLE, SHAFT, BEARINGS AND REDUCTION GEARS - AXLE HOUSING AND SHAFT - CONTINUED (RE48701) (FRONT) HYDRAULIC SYSTEM - DIFFERENTIAL LOCK LINES HYDRAULIC SYSTEM - DIFFERENTIAL LOCK PEDAL AND SWITCH CONTROLS - FRONT AXLE DISCONNECT CONTROLS FRONT AXLE DISCONNECT CONTROLS INPUT DRIVE SHAFTS AND U-JOINTS - ENGINE TO TRANSMISSION UNIVERSAL JOINT INPUT DRIVE SHAFTS AND U-JOINTS - DRIVE DAMPENER AND COVER MOUNTING PARTS - TRANSMISSION MOUNTING BRACKETS GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - TRANSMISSION GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - CONVERTER HOUSING AND DRIVE GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - CONVERTER GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - INPUT SHAFT, HOUSING AND CHARGE PUMP GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - GEARBOX HOUSING GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - OIL SUCTION PIPES GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - FILLER TUBE AND DIPSTICK GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - CONVERTER PRESSURE REGULATOR GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - GEARSHIFT SYSTEM (CONTROL VALVE PLATE AND GASKET) GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - GEARSHIFT SYSTEM (CONTROL VALVE) GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - FOURTH GEAR IDLER AND SHAFT GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - CLUTCH ASSEMBLY (FORWARD AND FIRST GEAR CLUTCHES) GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - CLUTCH ASSEMBLY (REVERSE AND SECOND GEAR CLUTCHES) GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - CLUTCH ASSEMBLY (THIRD AND FOURTH GEAR) GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - OUTPUT SHAFT GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - TRANSMISSION FILTER GEAR, SHAFTS, BEARINGS AND POWER SHIFT CLUTCH - MAGNETIC PICKUP HYDRAULIC SYSTEM - TRANSMISSION OIL COOLER HYDRAULIC SYSTEM - TRANSMISSION COOLER HYDRAULICS HYDRAULIC SYSTEM - THERMAL BY-PASS VALVE WIRING HARNESS AND SWITCHES - CLUTCH DISCONNECT CONTROL CRANKSHAFT AND MAIN BEARINGS - CRANKSHAFT CRANKSHAFT AND MAIN BEARINGS - MAIN AND MAIN THRUST BEARINGS CAMSHAFT AND VALVE ACTUATING MEANS - CAMSHAFT AND GEAR CAMSHAFT AND VALVE ACTUATING MEANS - TIMING GEAR COVER AND FRONT OIL SEAL CAMSHAFT AND VALVE ACTUATING MEANS - ROCKER ARMS, SHAFT AND PUSH RODS CAMSHAFT AND VALVE ACTUATING MEANS - ROCKER ARM COVER AND ENGINE VENTILATOR OUTLET HOSE CONNECTING RODS AND PISTONS - PISTON, RINGS, LINERS AND CONNECTING RODS CYLINDER BLOCK - CRANKSHAFT OIL SEAL AND HOUSING CYLINDER BLOCK CYLINDER BLOCK - ENGINE SHORT BLOCK CYLINDER BLOCK - ENGINE OVERHAUL KIT CYLINDER BLOCK - CYLINDER BLOCK FITTINGS OILING SYSTEM - ENGINE OIL DIPSTICK AND TUBE OILING SYSTEM - OIL PUMP OILING SYSTEM - ENGINE OIL PUMP INTAKE OILING SYSTEM - OIL PAN OILING SYSTEM - ENGINE OIL FILTER AND HOUSING OILING SYSTEM - OIL PAN OILING SYSTEM - OIL PAN (ENGINE SERIAL NO. 151949-) OILING SYSTEM - ENGINE OIL FILLER CYLINDER HEAD AND VALVES - LIFT STRAPS CYLINDER HEAD AND VALVES - CYLINDER HEAD AND VALVES EXHAUST MANIFOLD FUEL INJECTION PUMP AND LUBE PIPES FUEL INJECTION NOZZLE FUEL INJECTION NOZZLES AND LINES (6076HH031)(ENGINE SERIAL NO. 500000-) FUEL INJECTION SYSTEM - FUEL INJECTION PUMP HOUSING CONNECTORS (NIPPONDENSO) FUEL INJECTION SYSTEM - FUEL INJECTION PUMP GOVERNOR LEVERS (NIPPONDENSO) FUEL INJECTION SYSTEM - SPEED CONTROL BRACKET FUEL INJECTION SYSTEM - FUEL SHUT-OFF BRACKET AND ELECTRIC SHUT-OFF SOLENOID FUEL INJECTION SYSTEM - ELECTRIC SHUT-OFF SOLENOID KIT FUEL INJECTION SYSTEM - FUEL TRANSFER PUMP (NIPPONDENSO) FUEL INJECTION SYSTEM - FUEL INJECTION PUMP HOUSING CONNECTORS FUEL INJECTION SYSTEM - FUEL INJECTION PUMP GOVERNOR LEVERS AND CONTROLS FUEL INJECTION SYSTEM - FUEL INJECTION PUMP AND LUBE LINES (ENGINE SERIAL NO.-101062) FUEL INJECTION SYSTEM - FUEL INJECTION PUMP, LUBE LINE, AND LEAK-OFF LINE FUEL INJECTION SYSTEM - SPEED CONTROL BRACKET INTAKE MANIFOLD INTAKE MANIFOLD - AFTERCOOLER AND INTAKE MANIFOLD TURBOCHARGER - TURBOCHARGER AND OIL LINES TURBOCHARGER - TURBOCHARGER CENTER HOUSING WITH ROTATING PARTS (AIRESEARCH) TURBOCHARGER - TURBOCHARGER CENTER HOUSING WITH ROTATING PARTS (SCHWITZER) WATER PUMP WATER PUMP REPAIR KIT WATER PUMP REPAIR KIT WATER PUMP INLET HOUSING THERMOSTATS, HOUSING AND WATER PIPING - WATER MANIFOLD AND THERMOSTAT ENGINE OIL COOLER - ENGINE OIL COOLER, FILTER HOUSING AND FILTER FUEL FILTER - FUEL FILTER AND PIPES FUEL FILTER - PRE FILTER, PRE FILTER BRACKET & LINES FUEL FILTER - FUEL FILTER AND LINES FUEL TRANSFER PUMP FUEL TRANSFER PUMP (6076TDW02 ENGINE SERIAL NO.-151948) STARTING MOTOR STARTING MOTOR (12 VOLT 37 MT) - (DELCO-REMY NO. 1993894) STARTING MOTOR AND FASTENINGS - STARTER COMMUTATOR END FRAME (12 VOLT) (JOHN DEERE) STARTING MOTOR AND FASTENINGS - STARTER MAIN FRAME AND COIL (12 VOLT) (JOHN DEERE) STARTING MOTOR AND FASTENINGS - STARTER DRIVE HOUSING AND ARMATURE (12 VOLT) (JOHN DEERE) STARTING MOTOR AND FASTENINGS - STARTER SOLENOID SWITCH (12 VOLT) (JOHN DEERE) STARTING MOTOR AND FASTENINGS - STARTER SOLENOID COVER KIT (JOHN DEERE) STARTING MOTOR AND FASTENINGS - STARTING MOTOR (12 VOLT 37 MT) ALTERNATOR MOUNTING BRACKETS AND ADJUSTING STRAP FAN DRIVE - CRANKSHAFT PULLEY AND DAMPER FAN DRIVE PULLEY FAN DRIVE PULLEY AND CLUTCH FAN DRIVE PULLEY FLYWHEEL, HOUSING AND FASTENINGS - FLYWHEEL GASKET REPLACEMENT KITS - ENGINE GASKET KITS - (ENGINE SERIAL NO. 500000-) COLD WEATHER STARTING AID COLD WEAHTER STARTING AIDS - ETHER INJECTION SOLENOID COLD WEAHTER STARTING AIDS - ENGINE COOLANT HEATER COOLING SYSTEMS - FAN BLADE, SPACER AND BELTS COOLING SYSTEMS - RADIATOR, FAN SHROUD AND GUARD ENGINE SPEED CONTROLS - SPEED CONTROL CABLE AND PEDAL INTAKE SYSTEM - AIR CLEANER INTAKE SYSTEM - AIR CLEANER BRACKET AND HOSE INTAKE SYSTEM - AIR STACK CAP EXTERNAL EXHAUST SYSTEMS - MUFFLER MOUNTING FRAME - ENGINE MOUNTING BRACKETS EXTERNAL FUEL SUPPLY SYSTEMS - FUEL TANK AND FUEL TANK HOSES ELECTRONICS - MAGNETIC PICK-UP SECONDARY STEERING SECONDARY STEERING PUMP HYDRAULIC SYSTEM - PRIORITY VALVE HYDRAULIC SYSTEM - STEERING VALVE HYDRAULIC SYSTEM - STEERING CYLINDER PINS HYDRAULIC SYSTEM - STEERING CYLINDER HYDRAULIC SYSTEM - PRIORITY VALVE HYDRAULICS HYDRAULIC SYSTEM - STEERING CYLINDER HYDRAULICS HYDRAULIC SYSTEM - STEERING WHEEL, COLUMN AND LINKAGE ACTIVE ELEMENTS - BRAKES (RE44162) (OC-3) ACTIVE ELEMENTS - DIFFERENTIAL BRAKE LINE (RE44162) (OC-3) CONTROLS LINKAGE - BRAKE PEDALS HYDRAULIC SYSTEM - BRAKE VALVE HYDRAULIC SYSTEM - BRAKE VALVE HYDRAULICS CONTROL LINKAGE - HYDRAULIC RELEASED PARKING BRAKE, HOSE AND BRACKETS CONTROL LINKAGE - PARK BRAKE CALIPER ASSEMBLY CONTROL LINKAGE - PARK BRAKE REPAIR KIT LICENSE BRACKETS - LICENSE PLATE BRACKET VEHICLE FINISH AND TRIM - DECALS AND LABELS VEHICLE FINISH AND TRIM - SLOW MOVING VEHICLE EMBLEM SHIPPING AND PACKAGING - AIR CONDITIONER O-RING REPAIR KIT SHIPPING AND PACKAGING - LOCTITE SERVICE KIT SHIPPING AND PACKAGING - SILICONE RUBBER ADHESIVE GREASES, OIL, FUELS AND COOLANTS - O-RING KIT GREASES, OIL, FUELS AND COOLANTS - O-RING KIT GREASES, OIL, FUELS AND COOLANTS - FLAT FACE O-RING SEAL KIT GREASES, OIL, FUELS AND COOLANTS - DUST CAP WITH COVER KIT LUBRICATION SYSTEMS - STEERING CYLINDER HEAD END LUBRICATION SYSTEM MACHINE FILTERS BATTERIES, SUPPORT AND CABLES - BATTERY INSTALLATION (SINGLE BATTERY) BATTERIES, SUPPORT AND CABLES - BATTERY INSTALLATION (DUAL BATTERY) ALTERNATOR, REGULATOR AND CHARGING SYSTEM WIRING - ALTERNATOR, PULLEY, SHIELD AND SCREEN (95 AMPS) ALTERNATOR, REGULATOR AND CHARGING SYSTEM WIRING - ALTERNATOR, PULLEY AND SCREEN (135 AMP) LIGHTING SYSTEM - FRONT TRACTOR LAMP LIGHTING SYSTEM - FRONT WARNING AND TURN SIGNAL LIGHT (RIGHT SIDE ILLUSTRATED) LIGHTING SYSTEM - FRONT LIGHT GUARDS LIGHTING SYSTEM - STOP AND TAIL LAMP LIGHTING SYSTEM - REAR TURN SIGNAL AND WARNING LAMP LIGHTING SYSTEM - TAIL LIGHT AND STOP LIGHT BRACKET LIGHTING SYSTEM - DOME LIGHT LIGHTING SYSTEM - FRONT AND REAR WORK LAMP WIRING HARNESS AND SWITCHES - WORK LIGHT SWITCH WIRING HARNESS AND SWITCHES - DRIVE LIGHT SWITCH WIRING HARNESS AND SWITCHES - TURN SIGNAL SWITCH WIRING HARNESS AND SWITCHES - FLASHER SWITCH (4-WAY FLASHER SWITCH) WIRING HARNESS AND SWITCHES - HYDRAULIC FILTER LEAD WIRING HARNESS AND SWITCHES - AIR CONDITIONING SHUTOFF SWITCH WIRING HARNESS AND SWITCHES - LOAD CENTER COMPARTMENT WIRING HARNESS AND SWITCHES - KEY SWITCH WIRING HARNESS AND SWITCHES - ENGINE OIL PRESSURE SWITCH WIRING HARNESS AND SWITCHES - TRANSMISSION OIL PRESSURE SWITCH WIRING HARNESS AND SWITCHES - HORN SWITCH WIRING HARNESS AND SWITCHES - ENGINE COOLANT TEMPERATURE SENDER WIRING HARNESS AND SWITCHES - TRANSMISSION OIL TEMPERATURE SENDER WIRING HARNESS AND SWITCHES - CAB GROUND STRAP WIRING HARNESS AND SWITCHES - START FLUID START AID WIRE LEAD WIRING HARNESS AND SWITCHES - SHIFT SELECTOR, HORN AND TURN SIGNAL SWITCHES WIRING HARNESS AND SWITCHES - PARK BRAKE SWITCH, KEY SWITCH AND CLAMPING WIRING HARNESS AND SWITCHES - STEERING COLUMN HARNESS WIRING HARNESS AND SWITCHES - RIDE CONTROL HARNESS WIRING HARNESS AND SWITCHES - LOADER FRAME HARNESS WIRING HARNESS AND SWITCHES - SECONDARY STEERING HARNESS WIRING HARNESS AND SWITCHES - CAB WORK LIGHT HARNESS WIRING HARNESS AND SWITCHES - CANOPY WORK LIGHT HARNESS WIRING HARNESS AND SWITCHES - TEMPERATURE CONTROL HARNESS WIRING HARNESS AND SWITCHES - TRANSMISSION HARNESS WIRING HARNESS AND SWITCHES - AIR CONDITIONER COMPRESSOR HARNESS WIRING HARNESS AND SWITCHES - REAR FRAME HARNESS WIRING HARNESS AND SWITCHES - ENGINE AND INJECTION PUMP HARNESS WIRING HARNESS AND SWITCHES - ENGINE FRAME HARNESS WIRING HARNESS AND SWITCHES - START AID LEAD WIRING HARNESS AND SWITCHES - FUSES, RELAYS, CIRCUIT BREAKERS AND FLASHER WIRING HARNESS AND SWITCHES - WIRE LEAD KIT WIRING HARNESS AND SWITCHES - WEATHERPACK TERMINALS AND CONNECTORS WIRING HARNESS AND SWITCHES - SUPPLEMENTARY TERMINALS, CONNECTORS AND REPAIR CONDUIT WIRING HARNESS AND SWITCHES - DEUTSCH TERMINALS WIRING HARNESS AND SWITCHES - STACKABLE AUTO FUSE HOLDER AND TERMINALS (PACK-CON III) WIRING HARNESS AND SWITCHES - CAB GROUND STRAP WIRING HARNESS AND SWITCHES - HYDRAULIC FILTER LEAD WIRING HARNESS AND SWITCHES - CAB WORK LIGHT HARNESS WIRING HARNESS AND SWITCHES - CANOPY WORK LIGHT HARNESS WIRING HARNESS AND SWITCHES - WIRE LEAD KIT WIRING HARNESS AND SWITCHES - WEATHERPACK TERMINALS AND CONNECTORS WIRING HARNESS AND SWITCHES - SUPPLEMENTARY TERMINALS, CONNECTORS AND REPAIR CONDUIT WIRING HARNESS AND SWITCHES - DEUTSCH TERMINALS WIRING HARNESS AND SWITCHES - STACKABLE AUTO FUSE HOLDER AND TERMINALS (PACK-CON III) INSTRUMENTS AND INDICATORS - MONITOR (SIXTEEN FUNCTION) INSTRUMENTS AND INDICATORS - MONITOR ALARM INSTRUMENTS AND INDICATORS - OIL LEVEL SENSOR INSTRUMENTS AND INDICATORS - ENGINE TEMPERATURE SWITCH SENSOR INSTRUMENTS AND INDICATORS - MAGNETIC PICK-UP FRAME INSTALLATION - ENGINE FRAME FRAME INSTALLATION - STEERING CUSHION FRAME BOTTOM GUARDS - REAR BOTTOM GUARD FRAME BOTTOM GUARDS - AUXILIARY BOTTOM GUARD CHASSIS WEIGHTS - INSIDE COUNTERWEIGHT CHASSIS WEIGHTS - COUNTERWEIGHT AND ATTACHING HARDWARE CHASSIS WEIGHTS - SECOND COUNTERWEIGHT AND ATTACHING HARDWARE CHASSIS WEIGHTS - COUNTERWEIGHT WITH DRAWBAR OPERATOR ENCLOSURE - CAB SHIELDS OPERATOR ENCLOSURE - ACCESS DOOR (LIMITER AND HOLD-OPEN DEVICE) OPERATOR ENCLOSURE - STORAGE COMPARTMENT DOOR OPERATOR ENCLOSURE - FRONT AND REAR WINDOW WASHER OPERATOR ENCLOSURE - CAB OPERATOR ENCLOSURE - CAB ISOLATORS OPERATOR ENCLOSURE - CANOPY OPERATOR ENCLOSURE - CAB WINDOWS OPERATOR ENCLOSURE - CAB WINDOW FRAME AND GLASS (RIGHT SIDE) OPERATOR ENCLOSURE - CAB FRESH AIR FILTER AND LOCK OPERATOR ENCLOSURE - CAB DOOR AND GLASS OPERATOR ENCLOSURE - MAGAZINE HOLDER OPERATOR ENCLOSURE - CAB DOOR, HOLD-OPEN RELEASE OPERATOR ENCLOSURE - CAB DOOR HANDLE AND LINKAGE OPERATOR ENCLOSURE - RIGHT-HAND WINDOW HOLD OPEN CATCH OPERATOR ENCLOSURE - RIGHT CONSOLE OPERATOR ENCLOSURE - LEFT CONSOLE COVER OPERATOR ENCLOSURE - CANOPY FLOOR MAT OPERATOR ENCLOSURE - CAB FLOOR MAT OPERATOR ENCLOSURE - ASH TRAY OPERATOR ENCLOSURE - FRONT WINDSHIELD WIPER AND SWITCH OPERATOR ENCLOSURE - REAR WINDSHIELD WIPER AND SWITCH OPERATOR ENCLOSURE - DASH PANEL AND LOWER COVER OPERATOR ENCLOSURE - RIGHT CONSOLE COVER OPERATOR ENCLOSURE - VANDAL COVER (WITH CANOPY) OPERATOR ENCLOSURE - SLIDING REAR SIDE WINDOWS SEAT AND SEAT BELTS - RETRACTABLE SEAT BELT 51 MM (2 IN.) WIDE SEAT AND SEAT BELTS - RETRACTABLE SEAT BELT 76MM (3 IN.) WIDE SEAT AND SEAT BELTS - SEAT SEAT AND SEAT BELTS - SEAT AND BACKREST CUSHION SEAT AND SEAT BELTS - BACKREST EXTENSION SEAT AND SEAT BELTS - TETHER STRAP SEAT AND SEAT BELTS - ARMRESTS AND BACKREST BRACKETS SEAT AND SEAT BELTS - SEAT SLIDE TRACK (FORE AND AFT ADJUSTMENT) SEAT AND SEAT BELTS - SEAT LOWER BACK ADJUSTER (SUSPENSION SEAT) SEAT AND SEAT BELTS - SCISSORS SUSPENSION ARMS WITH SHAFTS (SUSPENSION SEAT) SEAT AND SEAT BELTS - SEAT WEIGHT ADJUSTER ASSEMBLY SEAT AND SEAT BELTS - SEAT SHELF STEPS AND HANDHOLDS - STEP (ENGINE COMPARTMENT) STEPS AND HANDHOLDS - ENGINE COMPARTMENT STEP STEPS AND HANDHOLDS - ACCESS PLATFORM AND STEPS STEPS AND HANDHOLDS - ACCESS STEPS WITHOUT PLATFORM HEATING AND AIR CONDITIONING - FRESH AIR HOUSING, FILTER AND BLOWER RESISTOR HEATING AND AIR CONDITIONING - PRESSURIZER HOUSING, FREEZE CONTROL SWITCH, LOUVERS AND DUCTS HEATING AND AIR CONDITIONING - CLIMATE CONTROLS (RIGHT CONSOLE) HEATING AND AIR CONDITIONING - HEATER HOSES AND CONTROL VALVE HEATING AND AIR CONDITIONING - LEFT PANEL TEMPERATURE CONTROL WIRING HARNESS HEATING AND AIR CONDITIONING - DEFROSTER HEATING AND AIR CONDITIONING - CONDENSER DOOR AND REFRIGERENT LINES HEATING AND AIR CONDITIONING - CONDENSER HOUSING WITH FANS HEATING AND AIR CONDITIONING - PRESSURIZER HOUSING, BLOWER FAN, EVAPORATOR AND EXPANSION VALVE HEATING AND AIR CONDITIONING - CONDENSER DOOR (LIMITER AND HOLD-OPEN DEVICE) HEATING AND AIR CONDITIONING - REFRIGERANT LINES HEATING AND AIR CONDITIONING - COMPRESSOR CLUTCH AND SERVICE VALVES HEATING AND AIR CONDITIONING - COMPRESSOR HARDWARE KIT HEATING AND AIR CONDITIONING - COMPRESSOR SHAFT SEAL KIT HEATING AND AIR CONDITIONING - AIR CONDITIONER COMPRESSOR MOUNTING BRACKETS HEATING AND AIR CONDITIONING - CAB REAR PANEL AND RECIRCULATION FILTER HOOD OR ENGINE ENCLOSURE - HOOD HOOD OR ENGINE ENCLOSURE - ENGINE SIDE SHIELDS TRANSMISSION SHIELDS GRILLE AND GRILLE HOUSING - GRILLE AND GRILLE HOUSING FRONT FENDERS LEFT REAR FENDER RIGHT REAR FENDER INSIDE REAR VIEW MIRROR OUTSIDE MIRROR FOR CAB OR CANOPY HORN AND WARNING DEVICES - BACK-UP ALARM HORN AND WARNING DEVICES - HORN TOOTH HYDRAULIC SYSTEM - AUXILIARY CUTTING EDGE AND WEAR PLATES HYDRAULIC SYSTEM - LOADER BUCKETS FRAMES - LOADER FRAME FRAMES - LOADER BOOM AND PINS FRAMES - LOADER LINKAGE HYDRAULIC SYSTEM - LOADER CONTROL VALVE (TWO OR THREE-SPOOL) HYDRAULIC SYSTEM - INLET SECTION VALVE WITH RELIEF VALVE HYDRAULIC SYSTEM - BOOM SECTION VALVE HYDRAULIC SYSTEM - ANTI-CAVITY VALVE BOOM SECTION HYDRAULIC SYSTEM - BUCKET SECTION VALVE HYDRAULIC SYSTEM - UNIVERSAL RELIEF VALVE BUCKET SECTION HYDRAULIC SYSTEM - AUXILIARY SECTION VALVE HYDRAULIC SYSTEM - SINGLE AUXILIARY CONTROLLER HYDRAULIC SYSTEM - TWO-LEVER REMOTE CONTROLLER HYDRAULIC SYSTEM - THREE-LEVER REMOTE CONTROLLER HYDRAULIC SYSTEM - BUCKET, BOOM AND AUXILIARY SECTION (TWO OR THREE-LEVER REMOTE CONTROLLER) HYDRAULIC SYSTEM - HYDRAULIC REMOTE CONTROLLER HYDRAULIC SYSTEM - SINGLE LEVER, TWO-LEVER AND THREE-LEVER REMOTE HYDRAULICS HYDRAULIC SYSTEM - THIRD FUNCTION REMOTE HYDRAULICS HYDRAULIC SYSTEM - BUCKET CYLINDER HYDRAULIC SYSTEM - BOOM CYLINDER HYDRAULIC SYSTEM - LOADER CONTROL VALVE TO BUCKET CYLINDER HYDRAULICS HYDRAULIC SYSTEM - LOADER CONTROL VALVE TO BOOM CYLINDER HYDRAULICS HYDRAULIC SYSTEM - THIRD FUNCTION AUXILIARY HYDRAULICS HYDRAULIC SYSTEM - HYDRAULIC PUMP HYDRAULIC SYSTEM - HYDRAULIC PUMP KIT (OPEN CENTER) HYDRAULIC SYSTEM - BRAKE PUMP (CLOSED CENTER) HYDRAULIC SYSTEM - HYDRAULIC PUMP HOSES AND FITTINGS HYDRAULIC SYSTEM - HYDRAULIC RESERVOIR HYDRAULIC SYSTEM - HYDRAULIC RESERVOIR FITTINGS HYDRAULIC SYSTEM - HYDRAULIC RESERVOIR AND RETURN FILTER HOSES TO OIL COOLER HYDRAULIC SYSTEM - HYDRAULIC FILTER AND HOSES HYDRAULIC SYSTEM - HYDRAULIC OIL FILTER HYDRAULIC SYSTEM - PRESSURE REDUCING VALVE MANIFOLD HOSES AND FITTINGS HYDRAULIC SYSTEM - PRESSURE REDUCING VALVE MANIFOLD HYDRAULIC SYSTEM - PRESSURE REDUCING VALVE HYDRAULIC SYSTEM - SOLENOID VALVE HYDRAULIC SYSTEM - LOADER CONTROL VALVE AND STEERING VALVE HOSES HYDRAULIC SYSTEM - RETURN-TO-DIG BRACKET, SUPPORT AND SWITCH HYDRAULIC SYSTEM - BOOM KICKOUT BRACKETS AND SWITCH HYDRAULIC SYSTEM - THIRD FUNCTION AUXILIARY HYDRAULICS HYDRAULIC SYSTEM - HYDRAULIC PUMP HOSES AND FITTINGS HYDRAULIC SYSTEM - HYDRAULIC RESERVOIR HYDRAULIC SYSTEM - RETURN-TO-DIG BRACKET, SUPPORT AND SWITCH HYDRAULIC SYSTEM - BOOM KICKOUT BRACKETS AND SWITCH TOOLS

1

2

3

4

5

6

7

8

9

10

11

12

Позиция на иллюстрации	Заводской номер детали		Название детали
1	R53296		PIN
2	Т102088		STRAP
3	АА21292		QUICK LOCK PIN
4	АТ150633		PIN
5	19М8029		CAP SCREW
6	Т101391		LOCKING COLLAR
7	Т139919		RETAINER
8	Т27294		LOCK NUT
9	АТ149952		FRAME
10	АТ149417		PIN
11	Т146246		WASHER
12	Н113924		PLUG

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
