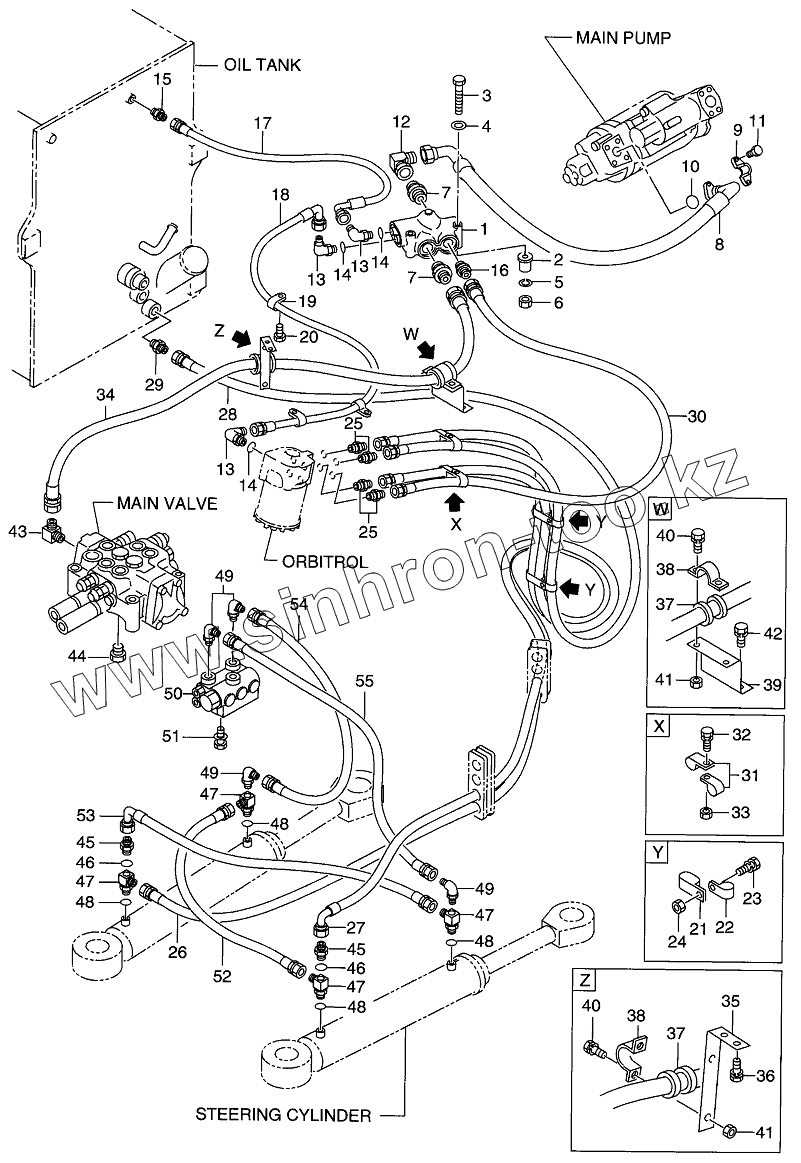

Каталог запасных частей к технике: Hitachi LX-130-7. HYDRAULIC SYSTEM( STEERING) (-1105)
1
2
3
4
5
6
7
7
8
9
10
11
12
13
13
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
38
39
40
40
41
41
42
43
44
45
45
46
46
47
47
47
47
48
48
48
48
49
49
49
50
51
52
53
54
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 26567-62001 | PRIORITY VALVE | |
| 2 | 26327-82071 | MOUNT, RUBBER | |
| 3 | 01100-08100 | BOLT | |
| 4 | 21471-22311 | WASHER | |
| 5 | 02010-00008 | WASHER | |
| 6 | 01400-00008 | NUT | |
| 7 | 26567-62021 | NIPPLE | |
| 8 | 26567-62341 | HOSE | |
| 9 | 26607-62581 | FLANGE, SPLIT | |
| 10 | 26607-62641 | O-RING | |
| 11 | 01116-12030 | BOLT | |
| 12 | 21777-93011 | ELBOW | |
| 13 | 26387-62801 | ELBOW | |
| 14 | 26097-62701 | O-RING | |
| 15 | 04137-00202 | NIPPLE | |
| 16 | 26567-62361 | NIPPLE | |
| 17 | 26567-62071 | HOSE | |
| 18 | 26567-62081 | HOSE | |
| 19 | 26602-42071 | CLIP | |
| 20 | 01183-10016 | BOLT&WASHER | |
| 21 | 26602-42231 | CLIP | |
| 22 | 26602-42111 | CLIP | |
| 23 | 01183-10025 | BOLT&WASHER | |
| 24 | 01401-00010 | NUT | |
| 25 | 56430-56361 | NIPPLE | |
| 26 | 26567-62101 | HOSE | |
| 27 | 26567-62112 | HOSE | |
| 28 | 26567-62121 | HOSE | |
| 29 | 04137-00606 | NIPPLE | |
| 30 | 26567-62131 | HOSE | |
| 31 | 26602-42111 | CLIP | |
| 32 | 01183-10025 | BOLT&WASHER | |
| 33 | 01401-00010 | NUT | |
| 34 | 26567-62091 | HOSE | |
| 35 | 26567-62041 | BRACKET | |
| 36 | 01183-10020 | BOLT&WASHER | |
| 37 | 26757-62231 | RUBBER | |
| 38 | 26667-62361 | CLAMP | |
| 39 | 26567-62351 | BRACKET | |
| 40 | 01183-12035 | BOLT&WASHER | |
| 41 | 01401-00012 | NUT | |
| 42 | 01183-12025 | BOLT&WASHER | |
| 43 | 04150-20606 | ELBOW | |
| 44 | 16603-02511 | PLUG | |
| 45 | 21847-03201 | NIPPLE | |
| 46 | 03320-00140 | O-RING | |
| 47 | 26805-42671 | TEE | |
| 48 | 03320-00180 | O-RING | |
| 49 | 04150-20303 | ELBOW | |
| 50 | 26567-62011 | CUSHION VALVE | |
| 51 | 01183-08016 | BOLT&WASHER | |
| 52 | 26567-62142 | HOSE | |
| 53 | 26567-62151 | HOSE | |
| 54 | 26567-62161 | HOSE | |
| 55 | 26567-62171 | HOSE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
