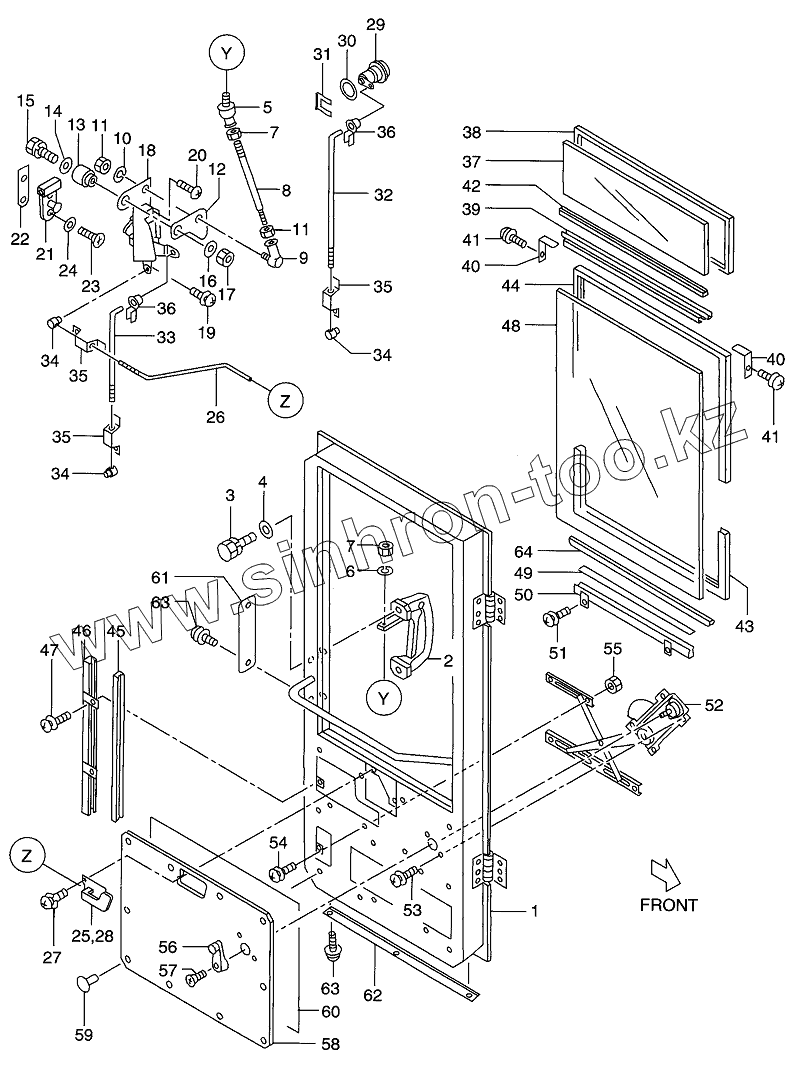

Каталог запасных частей к технике: Hitachi LX-130-7. CAB (DOOR) (LH)
А
1
2
3
4
5
6
7
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
34
35
35
35
36
36
37
38
39
40
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
63
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| А | 26556-70012 | DOOR, LH | |
| 1 | 26556-70201 | DOOR | |
| 2 | 26756-73291 | HANDLE | |
| 3 | 01183-10025 | BOLT&WASHER | |
| 4 | 26606-52721 | WASHER | |
| 5 | 26756-73301 | JOINT, BALL | |
| 6 | 02010-00008 | WASHER | |
| 7 | 01400-00008 | NUT | |
| 8 | 26556-72001 | ROD | |
| 9 | 26093-62171 | JOINT, BALL | |
| 10 | 02010-00006 | WASHER | |
| 11 | 01400-00006 | NUT | |
| 12 | 26756-73321 | PLATE | |
| 13 | 26756-73331 | COLLAR | |
| 14 | 26606-52721 | WASHER | |
| 15 | 01183-08035 | BOLT&WASHER | |
| 16 | 02000-00008 | WASHER | |
| 17 | 01400-00008 | NUT | |
| 18 | 56511-62841 | LOCK | |
| 19 | 01033-06012 | SCREW&WASHER | |
| 20 | 01300-06012 | BOLT | |
| 21 | 56600-62331 | STRIKER | |
| 22 | 26426-72871 | PLATE | |
| 23 | 01300-08020 | BOLT | |
| 24 | 21946-73261 | WASHER | |
| 25 | 26766-73541 | HANDLE | |
| 26 | 26766-73521 | ROD | |
| 27 | 01033-05012 | SCREW&WASHER | |
| 28 | 01042-04012 | SCREW | |
| 29 | 26556-72131 | CYLINDER, KEY | |
| 30 | 26756-77021 | GASKET | |
| 31 | 26756-77031 | CLIP | |
| 32 | 26756-73401 | ROD | |
| 33 | 26756-73411 | ROD | |
| 34 | 56600-62431 | PIN | |
| 35 | 56600-62441 | SPRING | |
| 36 | 26756-73721 | SNAP | |
| 37 | 26556-72081 | GLASS | |
| 38 | 26756-73211 | RUBBER | |
| 39 | 26756-70342 | CHANNEL | |
| 40 | 26756-73671 | PLATE | |
| 41 | 01033-05020 | SCREW&WASHER | |
| 42 | 26756-73241 | CHANNEL | |
| 43 | 26756-73251 | CHANNEL | |
| 44 | 26756-73261 | CHANNEL | |
| 45 | 26756-73231 | CHANNEL | |
| 46 | 26756-70351 | FORMING | |
| 47 | 01033-06012 | SCREW&WASHER | |
| 48 | 26556-72071 | GLASS | |
| 49 | 56600-58681 | SEAT | |
| 50 | 21886-72061 | CHANNEL | |
| 51 | 01033-06012 | SCREW&WASHER | |
| 52 | 56600-58671 | REGULATOR | |
| 53 | 01033-06016 | SCREW | |
| 54 | 01033-06012 | SCREW&WASHER | |
| 55 | 01400-00006 | NUT | |
| 56 | 21946-72301 | HANDLE | |
| 57 | 56600-54231 | SCREW | |
| 58 | 26766-73271 | UPHOLSTERY | |
| 59 | 26556-72411 | CLIP | |
| 60 | 56600-57011 | VINYL | |
| 61 | 26756-73472 | PLATE | |
| 62 | 26766-73412 | COVER | |
| 63 | 01033-06012 | SCREW&WASHER | |
| 64 | 26766-73381 | SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
