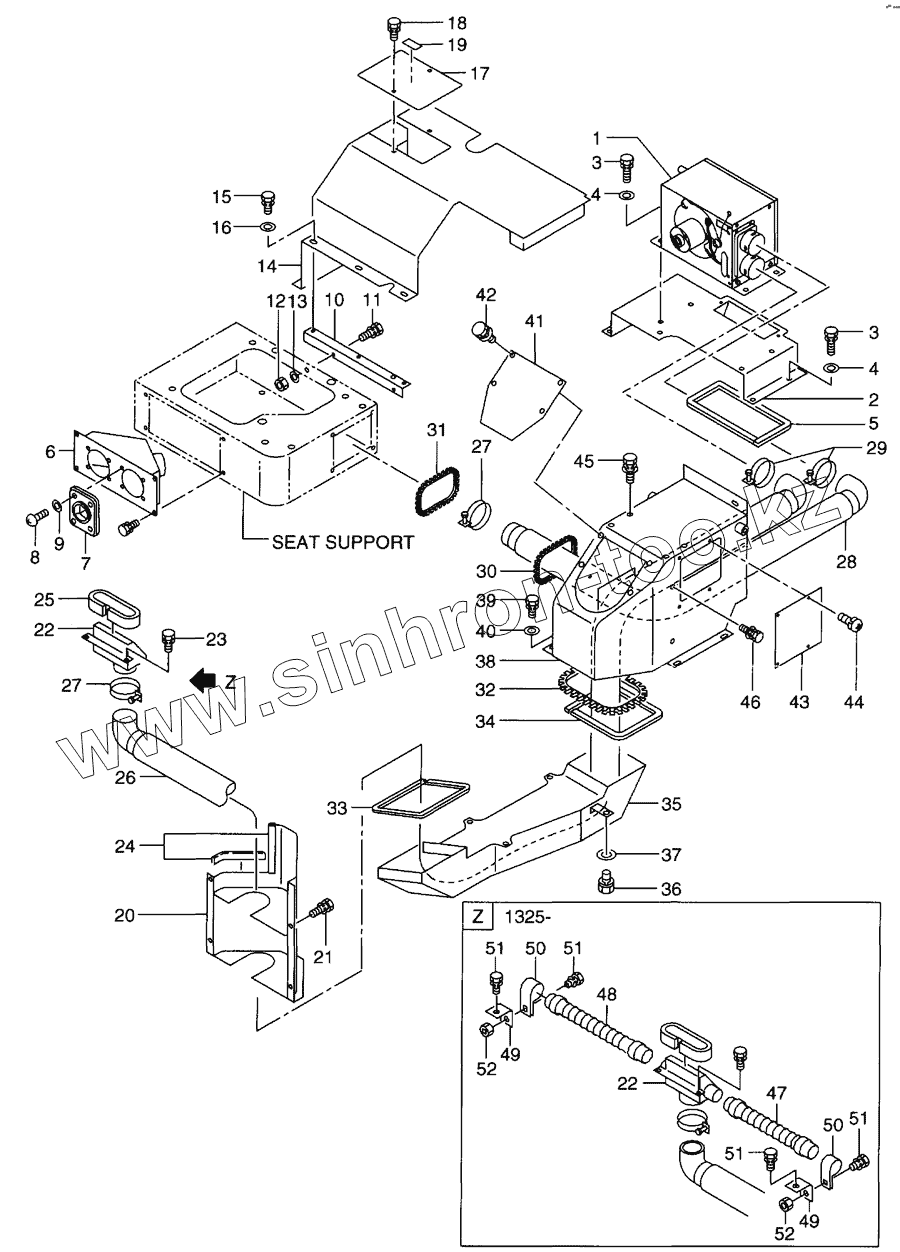

Каталог запасных частей к технике: Hitachi LX-110-7. Heater(HR400A-648)(OP)
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
50
50
51
51
51
51
52
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 56501-63371 | HEATER UNIT | |
| 2 | 56401-61301 | PLATE, BASE | |
| 3 | 01183-10025 | BOLT&WASHER | |
| 4 | 02000-00010 | WASHER | |
| 5 | 26426-73651 | SPONGE | |
| 6 | 56400-52931 | BOX | |
| 7 | 58490-53381 | GRILLE | |
| 8 | 26092-42301 | SCREW | |
| 9 | 26606-92591 | WASHER | |
| 10 | 56400-53011 | BRACKET | |
| 11 | 01183-10020 | BOLT&WASHER | |
| 12 | 01401-00010 | NUT | |
| 13 | 02000-00010 | WASHER | |
| 14 | 56401-61271 | COVER | |
| 15 | 01183-08016 | BOLT&WASHER | |
| 16 | 02000-00008 | WASHER | |
| 17 | 56401-64611 | COVER | |
| 18 | 01033-06016 | SCREW | |
| 19 | 56401-64651 | DECAL | |
| 20 | 56400-52991 | DUCT | |
| 21 | 01183-08016 | BOLT&WASHER | |
| 22 | 56400-52961 | DEFROSTER | |
| 22 | 56190-50991 | DEFROSTER | |
| 23 | 01183-08016 | BOLT&WASHER | |
| 24 | 56065-33121 | MOLE | |
| 25 | 26426-73671 | SPONGE | |
| 26 | 56400-52911 | HOSE,DEFROSTER | |
| 27 | 04913-00000 | CLIP | |
| 28 | 56400-52901 | HOSE,DEFROSTER | |
| 29 | 04913-00000 | CLIP | |
| 30 | 54067-22051 | GROMMET, FREE | |
| 31 | 54067-22061 | GROMMET | |
| 32 | 54067-22091 | GROMMET | |
| 33 | 26426-73641 | SPONGE | |
| 34 | 26426-73651 | SPONGE | |
| 35 | 26426-73792 | DUCT | |
| 36 | 01183-10020 | BOLT&WASHER | |
| 37 | 02000-00010 | WASHER | |
| 38 | 56401-61131 | COVER,DUCT | |
| 39 | 01183-10020 | BOLT&WASHER | |
| 40 | 02000-00010 | WASHER | |
| 41 | 56401-63381 | COVER | |
| 42 | 01185-08016 | BOLT&WASHER | |
| 43 | 56401-63091 | PLATE | |
| 44 | 01033-06016 | SCREW | |
| 45 | 01185-10020 | BOLT&WASHER | |
| 46 | 01183-08020 | BOLT | |
| 47 | 21789-07051 | HOSE | |
| 48 | 21789-07061 | HOSE | |
| 49 | 26191-12021 | BRACKET | |
| 50 | 26602-42561 | CLIP | |
| 51 | 01183-08016 | BOLT&WASHER | |
| 52 | 01400-00008 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
