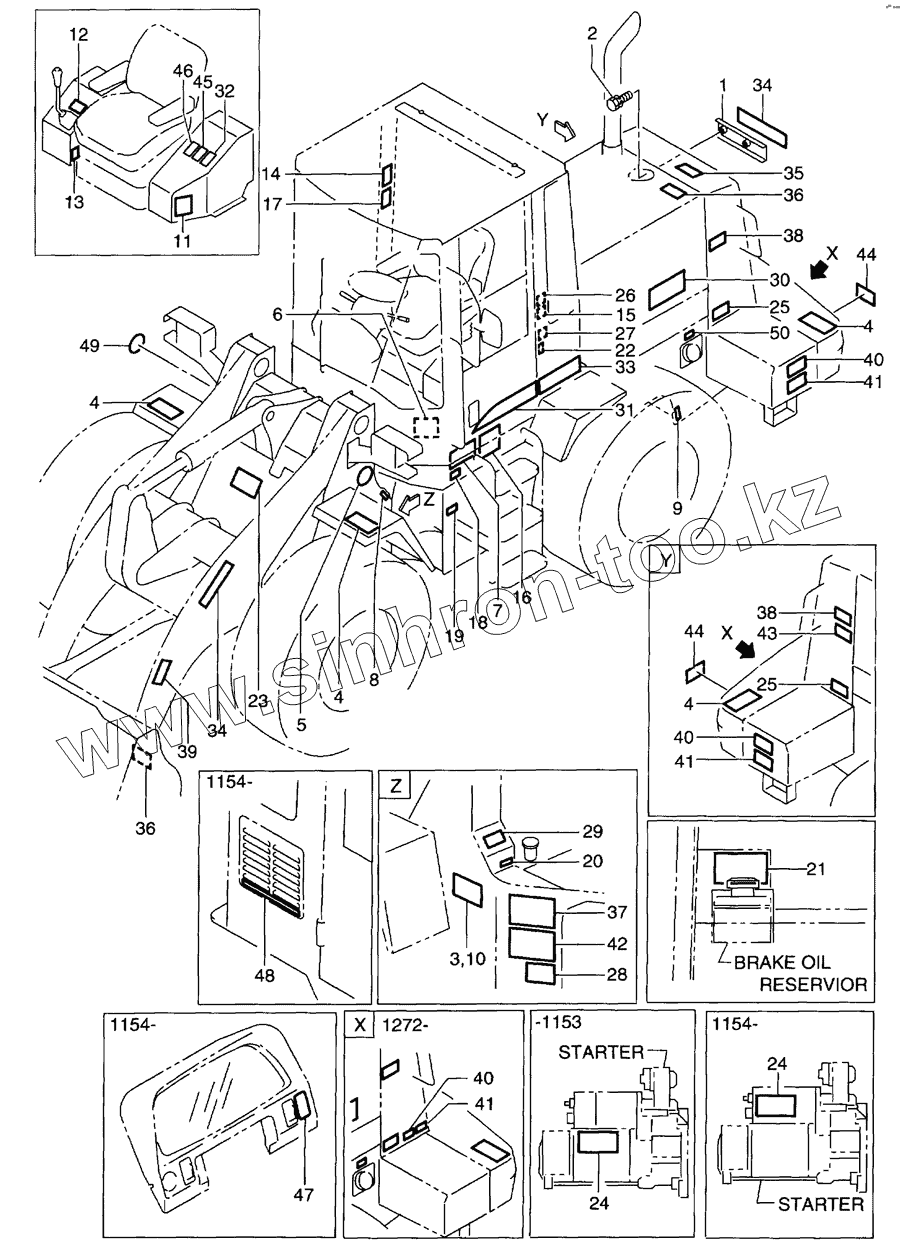

Каталог запасных частей к технике: Hitachi LX-110-7. Decal(JPN:-1324)
1
2
3
4
4
4
4
5
5
6
7
8
9
10
11
12
13
14
14
15
16
16
17
18
19
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
34
35
36
36
37
38
38
39
40
40
40
40
41
41
41
41
42
43
44
44
45
46
47
48
49
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 56480-50641 | 56480-50641 | DECAL,CAB,RH | |
| 56480-50651 | 56480-50651 | DECAL,CAB | |
| 56480-50661 | 56480-50661 | DECAL,CAB,RH | |
| 1 | 56480-50611 | PLATE | |
| 2 | 01183-08016 | BOLT&WASHER | |
| 3 | 26099-12111 | SCREW | |
| 4 | 24096-52361 | NON SLIP | |
| 5 | 26409-12241 | DECAL | |
| 5 | 26199-12211 | DECAL | |
| 6 | 26559-12061 | DECAL | |
| 7 | 26519-12311 | DECAL,CAUTION | |
| 8 | 26489-12021 | DECAL,GREASE TUBE | |
| 9 | 26759-12221 | DECAL,GREASE TUBE | |
| 10 | 56550-51411 | NAME PLATE | |
| 11 | 26489-12101 | DECAL | |
| 12 | 26409-12101 | DECAL,VALVE CONTROL | |
| 13 | 26409-12111 | DECAL,LEVER LOCK | |
| 14 | 26559-12011 | DECAL,PARKING | |
| 14 | 26559-12331 | DECAL,PARKING | |
| 15 | 26559-12021 | DECAL,INCHING | |
| 16 | 26489-12111 | DECAL,SERVICE | |
| 16 | 26489-12112 | DECAL,SERVICE | |
| 17 | 26519-12241 | DECAL,BRAKE | |
| 18 | 26519-12281 | DECAL,STEER HOSE | |
| 19 | 26609-12391 | DECAL,T/C OIL | |
| 20 | 26609-12381 | DECAL,HYDRAULIC OIL | |
| 21 | 26519-12231 | DECAL,BRAKE OIL | |
| 22 | 26559-12271 | DECAL,SEAT BELT | |
| 23 | 26559-12191 | DECAL,LIFTARM | |
| 24 | 26559-12201 | DECAL | |
| 25 | 26559-12211 | DECAL,BATTERY | |
| 26 | 26559-12221 | DECAL,CAUTION | |
| 27 | 26559-12231 | DECAL | |
| 28 | 26559-12241 | DECAL,SAFETY LINK | |
| 29 | 26559-12251 | DECAL,OIL TANK | |
| 30 | 56480-50601 | DECAL,MODEL | |
| 31 | 56480-50631 | DECAL,CAB,LH | |
| 32 | 26559-12301 | DECAL | |
| 33 | 56480-50651 | DECAL,CAB | |
| 34 | 56480-50621 | DECAL | |
| 35 | 26069-13111 | DECAL,RADIATOR CAP | |
| 36 | 26069-13121 | DECAL | |
| 37 | 26069-13131 | DECAL,ARTICULATE | |
| 38 | 26069-13141 | DECAL,FAN | |
| 39 | 26069-13151 | DECAL | |
| 40 | 26559-12111 | DECAL | |
| 40 | 26559-12361 | DECAL | |
| 41 | 26559-12121 | DECAL | |
| 41 | 26559-12371 | DECAL | |
| 42 | 26559-12131 | DECAL | |
| 43 | 26559-12141 | DECAL | |
| 44 | 26559-12151 | DECAL | |
| 45 | 26559-12281 | DECAL | |
| 46 | 26559-12291 | DECAL | |
| 47 | 26559-12321 | DECAL, PARKING SWITCH | |
| 48 | 56480-50881 | DECAL | |
| 49 | 26179-12121 | DECAL | |
| 50 | 26099-12171 | DECAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
