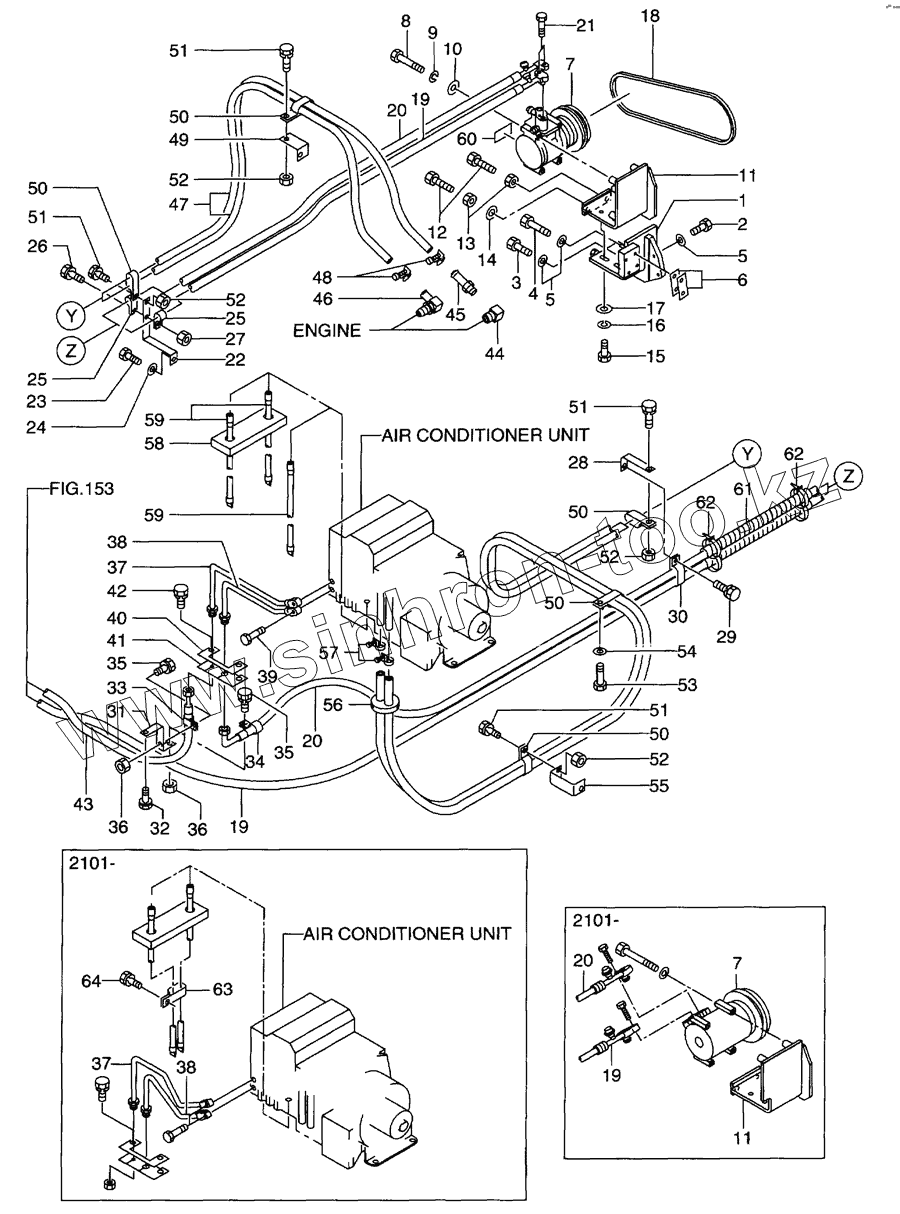

Каталог запасных частей к технике: Hitachi LX-110-7. Air conditioner piping(1/2)
1
2
3
4
5
5
6
7
7
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
19
19
19
20
20
20
20
21
22
23
24
25
25
26
27
28
29
30
31
31
32
33
34
35
35
36
36
37
37
37
38
38
38
39
40
41
42
43
43
44
45
46
47
48
49
50
50
50
50
50
51
51
51
51
52
52
52
52
53
54
55
56
57
58
59
59
59
60
60
61
62
62
63
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 26426-73871 | BRACKET | |
| 2 | 01106-10030 | BOLT | |
| 3 | 01106-10050 | BOLT | |
| 4 | 01106-10070 | BOLT | |
| 5 | 02011-00010 | WASHER | |
| 6 | 56380-61381 | SPACER | |
| 7 | 26416-72101 | COMPRESSOR | |
| 7 | 26196-73001 | COMPRESSOR | |
| 8 | 01106-08090 | BOLT | |
| 9 | 02011-00008 | WASHER | |
| 10 | 02000-00008 | WASHER | |
| 11 | 26196-73132 | BRACKET | |
| 11 | 26426-73012 | BRACKET | |
| 12 | 01111-12060 | BOLT | |
| 13 | 01401-00012 | NUT | |
| 14 | 02000-00012 | WASHER | |
| 15 | 01116-12035 | BOLT | |
| 16 | 02011-00012 | WASHER | |
| 17 | 26063-02111 | WASHER | |
| 18 | 26426-73091 | V BELT | |
| 19 | 26416-72191 | HOSE | |
| 19 | 26486-72271 | HOSE | |
| 20 | 26426-73231 | HOSE | |
| 20 | 26486-72281 | HOSE | |
| 21 | 01100-06030 | BOLT | |
| 22 | 26426-73371 | BRACKET | |
| 23 | 01100-10020 | BOLT | |
| 24 | 02010-00010 | WASHER | |
| 25 | 26602-42101 | CLIP | |
| 26 | 01183-10020 | BOLT&WASHER | |
| 27 | 01401-00010 | NUT | |
| 28 | 26426-73361 | BRACKET | |
| 29 | 01183-10020 | BOLT&WASHER | |
| 30 | 26602-42221 | CLIP | |
| 31 | 26426-73751 | BRACKET | |
| 31 | 26196-73141 | BRACKET | |
| 32 | 01183-10025 | BOLT&WASHER | |
| 33 | 26602-42091 | CLIP | |
| 34 | 26602-42111 | CLIP | |
| 35 | 01183-10020 | BOLT&WASHER | |
| 36 | 01401-00010 | NUT | |
| 37 | 26426-73211 | TUBE | |
| 37 | 26196-73021 | TUBE | |
| 38 | 26426-73221 | TUBE | |
| 38 | 26196-73011 | TUBE | |
| 39 | 01100-06030 | BOLT | |
| 40 | 26426-73771 | PLATE | |
| 41 | 26426-73761 | RUBBER | |
| 42 | 01183-08025 | BOLT&WASHER | |
| 43 | 26416-72211 | HOSE | |
| 43 | 26196-73031 | HOSE | |
| 44 | 26446-72281 | ELBOW | |
| 45 | 26426-73471 | NIPPLE | |
| 46 | 26426-73461 | ELBOW | |
| 47 | 26426-73241 | HOSE | |
| 48 | 04911-00024 | CLIP | |
| 49 | 26446-72961 | BRACKET | |
| 50 | 26602-42231 | CLIP | |
| 51 | 01183-10020 | BOLT&WASHER | |
| 52 | 01401*00010 | NUT | |
| 53 | 01110-10020 | BOLT | |
| 54 | 02010-00010 | WASHER | |
| 55 | 26426-73561 | BRACKET | |
| 56 | 26816-72661 | GROMMET | |
| 57 | 24067-62261 | CLIP | |
| 58 | 26426-73511 | SPONGE | |
| 59 | 26426-73291 | HOSE,DRAIN | |
| 59 | 26426-73291 | HOSE,DRAIN | |
| 60 | 26816-73091 | DECAL,CAUTION | |
| 60 | 26816-73101 | DECAL,CAUTION | |
| 61 | 04760-24040 | HOSE,PROTECTOR | |
| 62 | 04913-11200 | BAND | |
| 63 | 26602-42191 | CLIP | |
| 64 | 01183-10016 | BOLT&WASHER |
