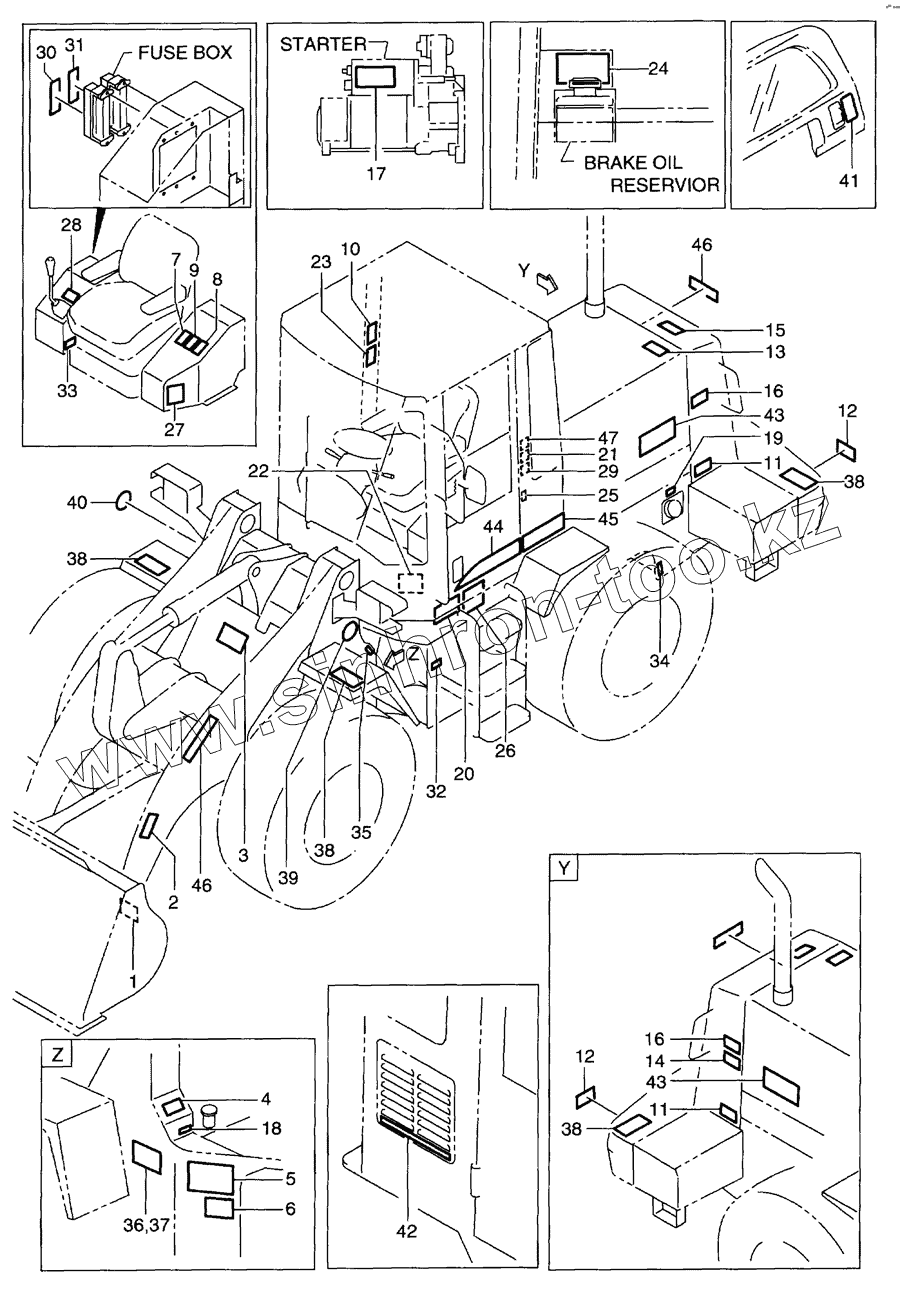

Каталог запасных частей к технике: Hitachi LX-110-7. 156A decal(JPN:1325-)

Тип техники

Марка

Модель

Схема

1

2

3

4

5

6

7

8

9

10

11

11

12

12

13

14

15

16

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

38

38

38

39

40

41

42

43

43

44

44

45

45

46

46

47

Позиция на иллюстрации	Заводской номер детали		Название детали
S1	26199-12241		DECAL KIT, SHEET(1)
1	DECAL		DECAL
2	DECAL		DECAL
3	NO PART NO.		DECAL,LIFT ARM
4	NO PART NO.		DECAL,LIFT ARM
S2	26199-12251		DECAL KIT, SHEET (2)
5	NO PART NO.		DECAL,LIFT ARM
6	DECAL		DECAL
7	DECAL		DECAL
8	DECAL		DECAL
9	DECAL		DECAL
10	NO PART NO.		DECAL,LIFT ARM
11	DECAL		DECAL
S3	26199-12261		DECAL KIT, SHEET (3)
12	DECAL		DECAL
13	DECAL		DECAL
14	DECAL		DECAL
15	NO PART NO.		DECAL,LIFT ARM
16	NO PART NO.		DECAL,LIFT ARM
17	NO PART NO.		DECAL,LIFT ARM
18	NO PART NO.		DECAL,LIFT ARM
19	NO PART NO.		DECAL,LIFT ARM
S4	26199-12271		DECAL KIT, SHEET (4)
20	DECAL		DECAL
21	DECAL		DECAL
22	DECAL		DECAL
23	DECAL,BRAKE		DECAL, BRAKE
24	DECAL,BRAKE		DECAL, BRAKE
25	DECAL		DECAL
S5	26489-12131		DECAL SET
26	DECAL		DECAL
27	DECAL		DECAL
28	NO PART NO.		DECAL,LIFT ARM
29	DECAL		DECAL
30	DECAL,FUSE		DECAL,FUSE
31	DECAL,FUSE		DECAL,FUSE
32	NO PART NO.		DECAL,LIFT ARM
33	NO PART NO.		DECAL,LIFT ARM
34	DECAL,GREASE		DECAL, GREASE
35	DECAL,GREASE		DECAL, GREASE
36	56550-51411		NAME PLATE
37	26099-12111		SCREW
38	24096-52361		NON SLIP
39	26199-12211		DECAL
40	26179-12121		DECAL
41	26559-12321		DECAL, PARKING SWITCH
K	56480-50821		DECAL KIT
42	56480-50881		DECAL
43	56480-50601		DECAL,MODEL
44	56480-50631		DECAL,CAB,LH
44	56480-50641		DECAL,CAB,RH
45	56480-50651		DECAL,CAB
45	56480-50661		DECAL,CAB,RH
46	56480-50621		DECAL
47	26559-12401		DECAL

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
