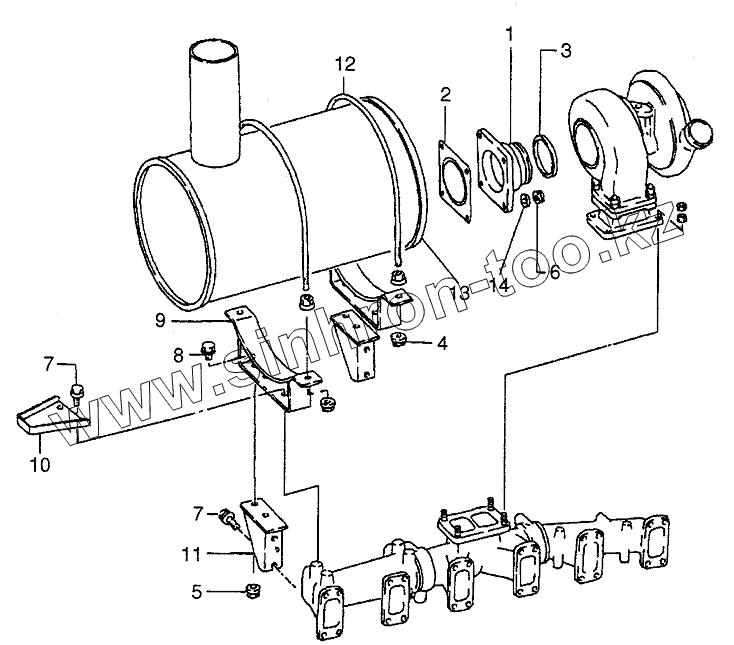

1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
Позиция на иллюстрации
Заводской номер детали
Название детали
1
НМЕ158463
COUPLING
2
Н3123218800
GASKET
3
НМЕ053533
RING, SEAL
4
HMF434105
NUT
5
НМН004054
NUT
6
НМН004073
NUT
7
НМН000713
BOLT
8
HMF140260
BOLT
9
НМЕ157029
BRACKET
10
НМЕ157109
COVER
11
НМЕ058595
SUPPORT, MUFFLER
12
НМЕ068306
U-BOLT
13
НМЕ440093
MUFFLER
14
HMF450007
WASHER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
