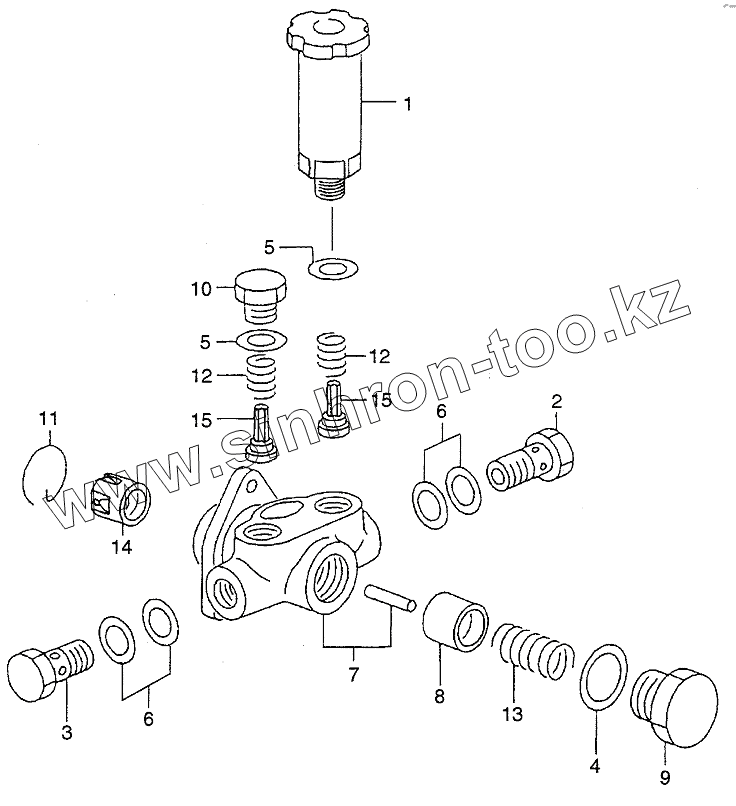

НМЕ717138
1
2
3
4
5
5
6
6
7
8
9
10
11
12
12
13
14
15
15
Позиция на иллюстрации
Заводской номер детали
Название детали
НМЕ717138
НМЕ717138
FEED PUMP ASSY
1
НМЕ717630
PUMP
2
НМЕ717651
BOLT, EYE
3
НМЕ705216
BOLT, EYE
4
НМЕ705275
GASKET
5
НМЕ705276
GASKET
6
Н0375117000
GASKET
7
НМЕ705084
HOUSING
8
НМЕ705020
PISTON
9
НМЕ722841
PLUG
10
НМЕ717648
PLUG
11
НМЕ705030
RING, SNAP
12
НМЕ705028
SPRING
13
НМЕ705021
SPRING
14
НМЕ705051
TAPPET
15
НМЕ705027
VALVE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
