Каталог запасных частей к технике: Hitachi LX190-7/LX230-7. ELECTRICAL PARTS (WIRE HARNESS)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано ENGINE MOUNT ENGINE CONTROL COOLING SYSTEM RADIATOR (LX190-7:-4103, LX230-7:-2110) RADIATOR (LX190-7:4104-, LX230-7:2111-) INTER COOLER FUEL SYSTEM AIR INTAKE & EXHAUST SYSTEM (LX190-7) AIR INTAKE & EXHAUST SYSTEM (LX230-7) AIR CLEANER (LX190-7) AIR CLEANER (LX230-7) CYLINDER BLOCK PISTON & CRANKSHAFT TIMING GEAR OIL PAN FLYWHEEL & HOUSING TACHOMETER DRIVE COVER (CYLINDER BLOCK) ATTACHING PARTS (CYLINDER BLOCK) SERVICE CYLINDER HEAD CYLINDER HEAD VALVE MECHANISM ROCKER COVER & BREATHER INLET MANIFOLD (-305085) INLET MANIFOLD (305086-) EXHAUST MANIFOLD TURBOCHARGER (FITTING PARTS) TURBOCHARGER (INNER PARTS) MUFFLER OIL COOLER OIL PUMP OIL FILTER OIL PIPE (-305085) OIL PIPE (305086-) WATER PUMP FAN FAN DRIVE WATER PIPE & THERMOSTAT INTER COOLER (-305085) FUEL PIPING & NOZZLE (-305085) FUEL PIPING & NOZZLE (305086-) FUEL RETURN HOSE FUEL FILTER (-305085) FUEL FILTER (305086-) FUEL INJECTION PUMP (FITTING PARTS) (-305085) FUEL INJECTION PUMP (305086-) INJECTION PUMP OIL LINE (305086-) INJECTION PUMP DRIVE INJECTION PUMP (INNER PARTS) (-305085) GOVERNOR (1/2) (-305085) GOVERNOR (2/2) (-305085) AUTOMATIC TIMER (-305085) FEED PUMP (-305085) COUPLING (-305085) ENGINE STOP SOLENOID STARTER (FITTING PARTS) STARTER (INNER PARTS) ALTERNATOR (FITTING PARTS) ALTERNATOR (INNER PARTS) OTHER PARTS ENGINE HARNESS (305086-) ELECTRICAL PARTS (WIRE HARNESS) FRONT FRAME WIRING COCKPIT WIRING (1/2) COCKPIT WIRING (2/2) REAR FRAME WIRING ENGINE WIRING BATTERY CABLE BATTERY INSTRUMENT PANEL CLUSTER METER ELECTRICAL PARTS(LAMP) ELECTRICAL PARTS (RELAY) ELECTRICAL PARTS (RELAY & SWITCH) ELECTRICAL PARTS (SWITCH) ELECTRICAL PARTS (HORN & BUZZER) CAR STEREO (CRS)(OP) ROAD REGULATION KIT (RRE)(OP) DRIVE UNIT (1/5) DRIVE UNIT (2/5) DRIVE UNIT (3/5) DRIVE UNIT (4/5) DRIVE UNIT (5/5) TRANSMISSION CONTROL VALVE (1/2) TRANSMISSION CONTROL VALVE (2/2) CLUTCH (FORWARD & REVERSE) CLUTCH (1ST & 2ND) CLUTCH (3RD & 4TH) TORQUE CONVERTER (1/2) TORQUE CONVERTER (2/2) TORQUE CONVERTER WHEEL CHARGING PUMP DRIVE AXLE (FRONT) (1/2) (LX190-7) DRIVE AXLE (FRONT) (2/2) (LX190-7) DRIVE AXLE (FRONT) (1/2) (LX230-7) DRIVE AXLE (FRONT) (2/2) (LX230-7) DRIVE AXLE (REAR) (1/2) (LX190-7) DRIVE AXLE (REAR) (2/2) (LX190-7) DRIVE AXLE (REAR) (1/2) (LX230-7) DRIVE AXLE (REAR) (2/2) (LX230-7) PLANET CARRIER (LX190-7) PLANET CARRIER (LX230-7) WHEEL & TIRE PROPELLER SHAFT BRAKE LINE (1/2) BRAKE LINE (2/2) BRAKE VALVE STEERING WHEEL UNIT STEERING WHEEL STEERING GEAR STEERING CONTROL STEERING VALVE STEERING CYLINDER FRONT FRAME REAR FRAME BALANCE WEIGHT BALANCE WEIGHT (CWA) (LX190-7) (OP) BALANCE WEIGHT (CWB) (LX190-7) (OP) BALANCE WEIGHT (CW045) (LX190-7) (OP) BALANCE WEIGHT (CWA) (LX230-7) (OP) BALANCE WEIGHT (CWB) (LX230-7) (OP) COCKPIT & SEAT SEAT CAB CAB (COVER) CAB (MIRROR) CAB (DOOR) (LH) CAB (DOOR) (RH) CAB (COVER & BOX) CAB (WIPER) CAB (LAMP) CAB (ELECTRICAL PARTS) CAB (MOUNT & WASHER TANK) HOOD & GRILLE SIDE PANEL LAMP BRACKET & FRONT FENDER STEP DECK PLATE & HANDRAIL BATTERY BOX BELLY GUARD KIT (BGK)(OP) CAB LESS KIT (ROCLS2) (1/2) (OP) CAB LESS KIT (ROCLS2) (2/2) (OP) SEAT (ROCLS2) (OP) VALVE CONTROL BOX VALVE CONTROL (1/4) VALVE CONTROL (2/4) VALVE CONTROL (3/4) VALVE CONTROL (4/4) MAIN VALVE MPPC VALVE BODY (MPPC VALVE) CHARGING VALVE PIPING KIT WITH 3 SPOOL VALVE (AP3) (OP) MAIN VALE (AP3) (0P) OIL TANK HYDRAULIC SYSTEM (SUCTION) HYDRAULIC SYSTEM (BOOM & BUCKET) HYDRAULIC SYSTEM (STEERING) HYDRAULIC SYSTEM (TRANSMISSION) ANTI-PITCHING SYSTEM (APS) (OP) ANTI-PITCHING SYSTEM (ELECTRICAL) (APS) (OP) VALVE (APS) (OP) SOLENOID VALVE (APS) (OP) PUMP MOUNT MAIN PUMP (LX190-7) MAIN PUMP (LX230-7) STEER PUMP GEAR PUMP BOOM (LX190-7) BOOM (LX230-7) HIGH LIFT ARM (HLA) (LX190-7) (OP) HIGH LIFT ARM (HLA) (LX230-7) (OP) BUCKET (LX190-7) BUCKET (LX230-7) BOOM CYLINDER (LX190-7) BOOM CYLINDER (LX230-7) BUCKET CYLINDER (LX190-7) BUCKET CYLINDER (LX230-7) BUCKET LEVELER AIR CONDITIONER (1/2) (LX190-7) AIR CONDITIONER (1/2) (LX230-7) AIR CONDITIONER (2/2) AIR CONDITIONER PIPING (1/2) AIR CONDITIONER PIPING (2/2) COMPRESSOR MOUNT AIR CONDITIONER UNIT COOL BOX (CRB) (LX190-7) (OP) GREASE PIPING DECAL (JPN) SERVICE TOOLS FIRE EXTINGUISHER (FE) (OP) ENGINE OVERHAUL GASKET KIT SERVICE CYLINDER BLOCK SERVICE CRANKSHAFT LINER & PISTON KIT

1

2

3

4

5

6

7

8

9

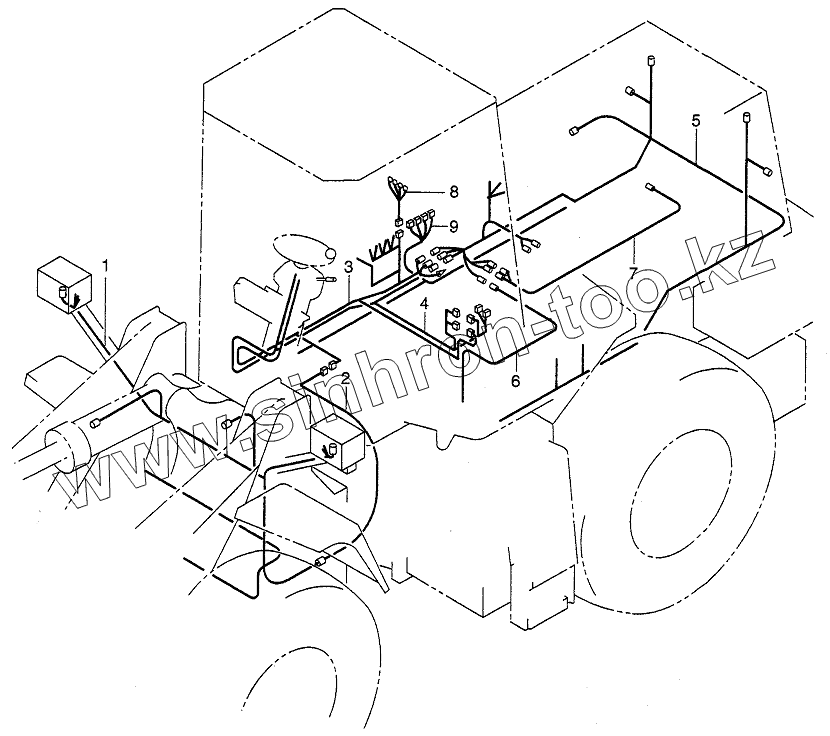

Позиция на иллюстрации	Заводской номер детали		Название детали
1	26792-42501		WIRE HARNESS, FRONT
2	26562-42061		WIRE HARNESS, CENTER
3	26562-42001		WIRE HARNESS, COCKPIT
4	26562-42011		WIRE HARNESS, T/M CONTROL
5	26792-42511		WIRE HARNESS, REAR FRAME
6	26672-42121		WIRE HARNESS, TRANSMISSION
7	26792-42521		WIRE HARNESS, ENGINE
8	26792-42531		WIRE HARNESS, FUSE
9	26792-42541		WIRE HARNESS, ECU

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
