Каталог запасных частей к технике: Hitachi LX190-7/LX230-7. DECAL (JPN)

Тип техники

Марка

Модель

Схема

1

1

2

2

3

3

4

5

6

7

8

9

9

9

9

10

11

12

13

14

15

16

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

36

37

38

39

40

41

42

43

44

45

46

47

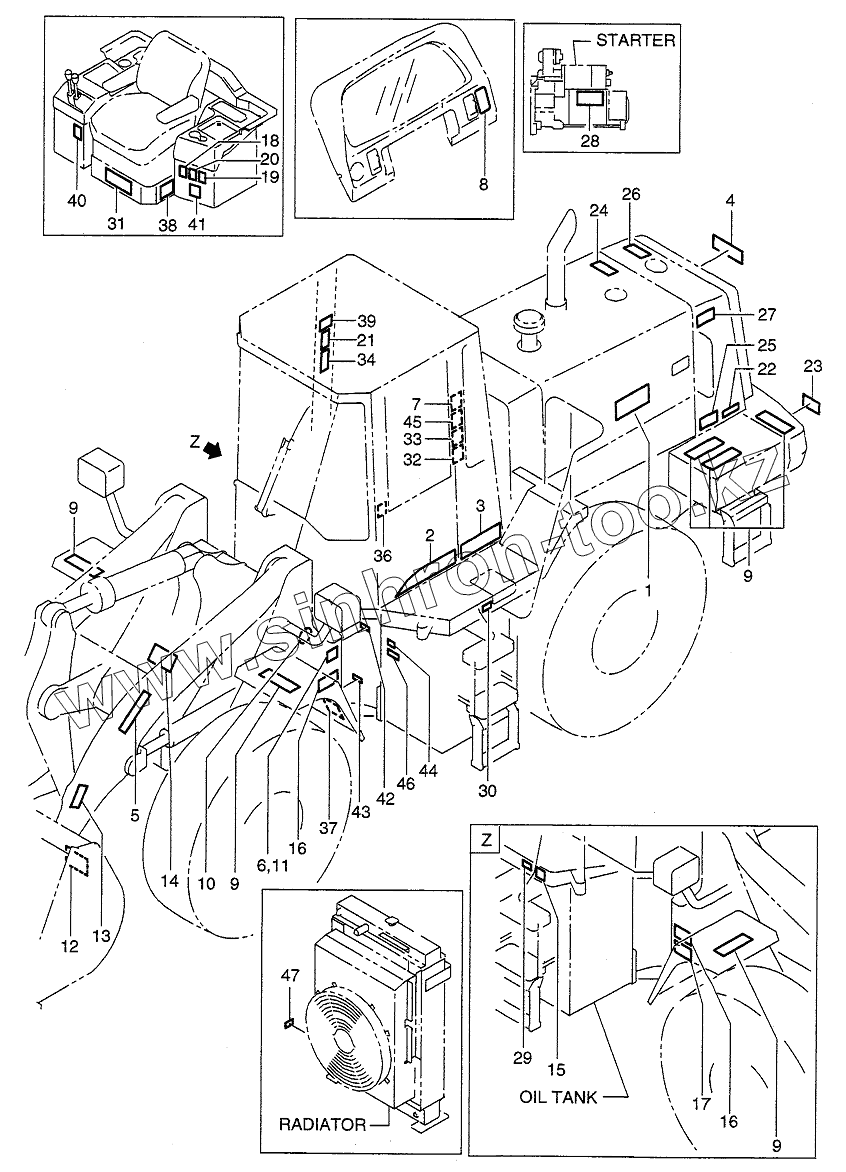

Позиция на иллюстрации	Заводской номер детали		Название детали
56790-53671	56790-53671		DECAL KIT, 3
26799-12061	26799-12061		DECAL KIT, SHEET
26719-12041	26719-12041		DECAL KIT, SHEET
26199-12271	26199-12271		DECAL KIT, SHEET (4)
26199-12261	26199-12261		DECAL KIT, SHEET (3)
26199-12251	26199-12251		DECAL KIT, SHEET (2)
26199-12241	26199-12241		DECAL KIT, SHEET(1)
56710-50921	56710-50921		DECAL KIT, 3
1	56790-50811		DECAL
1	56710-50051		DECAL
2	56550-51611		DECAL, RH
2	56550-51601		DECAL, LH
3	56550-51621		DECAL, LH
3	56550-51631		DECAL, RH
4	56550-51651		DECAL
5	56790-50821		DECAL
6	56550-51411		NAME PLATE
7	26559-12401		DECAL
8	26559-12321		DECAL, PARKING SWITCH
9	24096-52361		NON SLIP
10	26199-12211		DECAL
11	26099-12111		SCREW
12	DECAL		DECAL
13	DECAL		DECAL
14	DECAL		DECAL
15	DECAL		DECAL
16	DECAL		DECAL
17	DECAL		DECAL
18	DECAL		DECAL
19	DECAL		DECAL
20	DECAL		DECAL
21	DECAL		DECAL
22	DECAL		DECAL
23	DECAL		DECAL
24	DECAL		DECAL
25	DECAL		DECAL
26	RADIATORCAP		DECAL, RADIATOR CAP
27	FANCAUTION		DECAL, FAN CAUTION
28	JUMPSTART		DECAL, JUMP START
29	DECAL		DECAL
30	DECAL		DECAL
31	DECAL		DECAL
32	DECAL		DECAL
33	DECAL		DECAL
34	BRAKE		DECAL, BRAKE
35	BRAKEOIL		DECAL, BRAKE OIL
36	SEATBELT		DECAL, SEAT BELT
37	DECAL		DECAL
38	DECAL		DECAL
39	VALVECONTROL		DECAL, VALVE CONTROL
40	LEVERLOCK		DECAL, LEVER LOCK
41	DECAL		DECAL
42	DECAL		DECAL
43	DECAL		DECAL
44	DECAL		DECAL
45	DECAL		DECAL
46	TOR-CONOIL		DECAL, TOR-CON OIL
47	DECAL		DECAL

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
