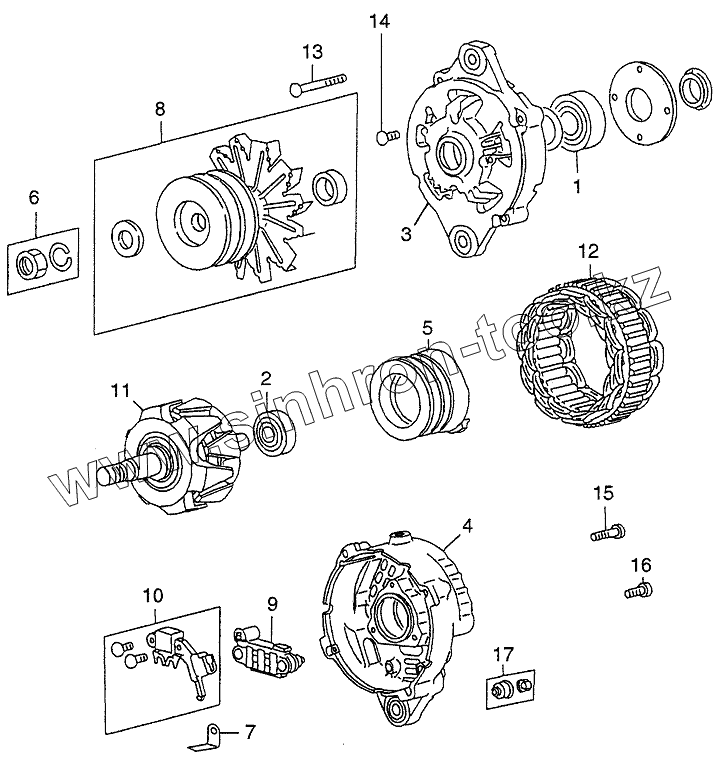

НМЕ049289
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
Позиция на иллюстрации
Заводской номер детали
Название детали
НМЕ049289
НМЕ049289
ALTERNATOR
1
НМЕ701329
BEARING
2
НМЕ701331
BEARING
3
НМЕ701373
BRACKET, FRONT
4
НМЕ701377
BRACKET, REAR
5
НМЕ701392
COIL
6
НМЕ700588
KIT, NUT
7
НМЕ701854
PLATE
8
НМЕ701482
PULLEY & FAN
8
НМЕ701252
PULLEY & FAN
9
НМЕ701378
RECTIFIER
10
НМЕ701838
REGULATOR
11
НМЕ701330
ROTOR
12
НМЕ701481
STATOR
13
НМЕ700773
SCREW
14
НМЕ700775
SCREW
15
НМЕ701031
SCREW
16
НМЕ701303
SCREW
17
НМЕ701362
NUT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
