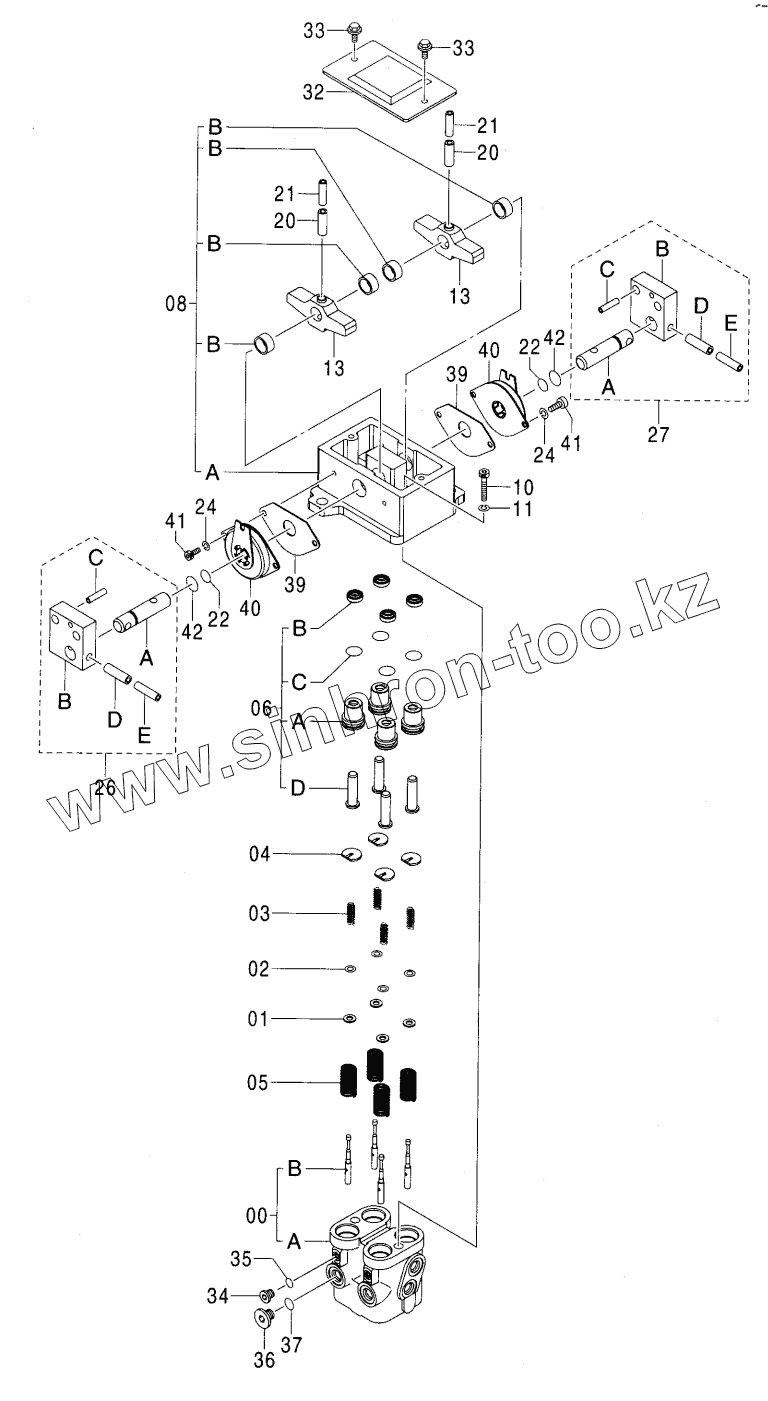

Каталог запасных частей к технике: Hitachi Компоненты ZX-450. VALVE,PILOT (TRAVEL)
9235551
4205317
4205318
4051262
3087987
4425305
J900616
J900616
4205317
4205318
4051262
3087987
4425305
A590106
A590106
9226365
4437433
4437433
4437433
4437433
2044332
4602154
8092248
CASING
SPOOL
3099628
4447050
4201993
1
2
3
4
5
6
8
10
11
13
13
20
20
21
21
22
22
24
24
26
27
32
33
33
34
35
36
37
39
39
40
40
41
41
42
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9235551 | 9235551 | VALVE, PILOT | |
| 4205317 | 4205317 | PIN, SPRING | |
| 4205318 | 4205318 | PIN, SPRING | |
| 4051262 | 4051262 | PIN, SPR1NG | |
| 3087987 | 3087987 | BRACKET | |
| 4425305 | 4425305 | PIN | |
| J900616 | J900616 | BOLT | |
| 4205317 | 4205317 | PIN, SPRING | |
| 4205318 | 4205318 | PIN, SPRING | |
| 4051262 | 4051262 | PIN, SPR1NG | |
| 3087987 | 3087987 | BRACKET | |
| 4425305 | 4425305 | PIN | |
| A590106 | A590106 | WASHER | |
| 9226365 | 9226365 | VALVE, PILOT | |
| 4437433 | 4437433 | BUSHING | |
| 2044332 | 2044332 | HOLDER | |
| 4602154 | 4602154 | PUSHER | |
| 8092248 | 8092248 | CASING ASS'Y | |
| CASING | CASING | CASING | |
| SPOOL | SPOOL | SPOOL | |
| 3099628 | 3099628 | BUSHING | |
| 4447050 | 4447050 | SEAL, OIL | |
| 4201993 | 4201993 | O-RING | |
| 1 | 4319299 | SPACER | |
| 2 | 4203411 | SHIM | |
| 3 | 4368629 | SPRING, COMPRES. | |
| 4 | 4364970 | GUIDE, SPRING | |
| 5 | 4368630 | SPRING, COMPRES. | |
| 6 | 9226367 | PUSHER, ASSY | |
| 8 | 9184275 | HOLDER | |
| 10 | J781030 | BOLT, SOCKET | |
| 11 | A590910 | WASHER, SPRING | |
| 13 | 3098245 | CAM | |
| 20 | 4027427 | PIN,SPRING | |
| 21 | 4213419 | PIN, SPRING | |
| 22 | 4185600 | O-RING | |
| 24 | A590906 | WASHER, SPRING | |
| 26 | 9207567 | PIN ASS'Y | |
| 27 | 9207568 | PIN ASS'Y | |
| 32 | 8077903 | COVER | |
| 33 | J260614 | BOLT, SEMS | |
| 34 | 4217651 | PLUG | |
| 35 | 4113154 | O-RING | |
| 36 | 4208977 | PLUG | |
| 37 | 964255 | O-RING | |
| 39 | 4437432 | SEAT, RUBBER | |
| 40 | 4428902 | DAMPER | |
| 41 | J780612 | BOLT, SOCKET | |
| 42 | 4447067 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
