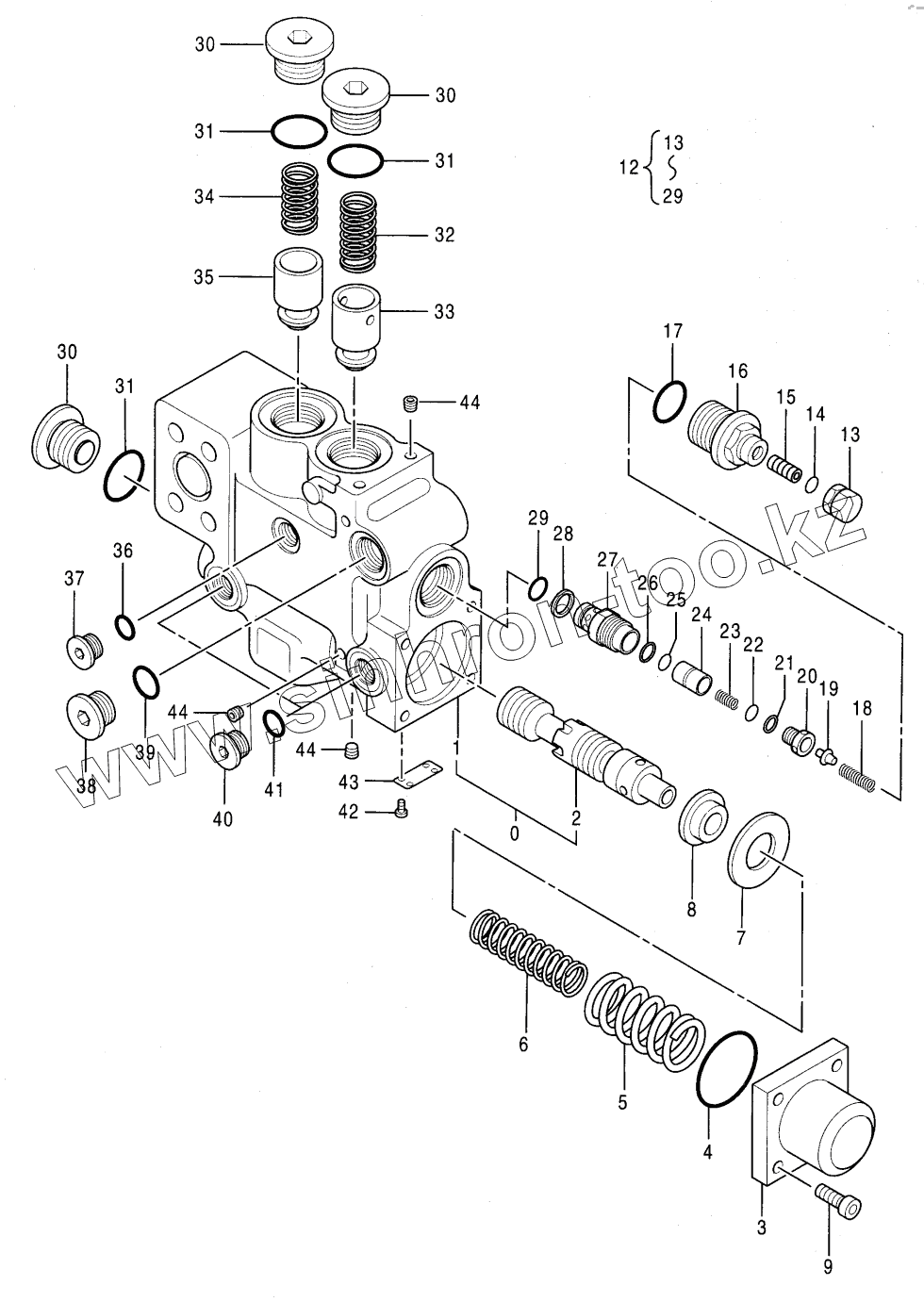

Каталог запасных частей к технике: Hitachi Компоненты ZX-450. VALVE,HOLDING (BOOM)
0663601
4473857
1
2
3
4
5
6
7
8
9
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
30
31
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0663601 | 0663601 | BODY, SUB ASSY | |
| 4473857 | 4473857 | VALVE, HOLDING | |
| 1 | BODY | BODY | |
| 2 | SPOOL | SPOOL | |
| 3 | 0658002 | COVER | |
| 4 | A811055 | O-RING | |
| 5 | 0658003 | SPRING, COMPRES. | |
| 6 | 0658004 | SPRING, COMPRES. | |
| 7 | 0343507 | SPACER | |
| 8 | 0658005 | HOLDER, SPRING | |
| 9 | M340825 | BOLT, SOCKET | |
| 12 | 4483073 | VALVE, RELIEF | |
| 13 | NUT | NUT | |
| 14 | O-RING | O-RING | |
| 15 | SCREW | SCREW | |
| 16 | CARTRIDGE | CARTRIDGE | |
| 17 | 4509182 | O-RING | |
| 18 | SPRING | SPRING | |
| 19 | VALVE | BODY, VALVE | |
| 20 | SEAT | SEAT | |
| 21 | RING | RING | |
| 22 | O-RING | O-RING | |
| 23 | SPRING | SPRING | |
| 24 | POPPET | POPPET | |
| 25 | O-RING | O-RING | |
| 26 | RING | RING | |
| 27 | SLEEVE | SLEEVE | |
| 28 | 4038533 | RING, BACK-UP | |
| 29 | 4509180 | O-RING | |
| 30 | 0658008 | PLUG | |
| 31 | 4506429 | O-RING | |
| 32 | 0343510 | SPRING | |
| 33 | 0343505 | PLUNGER | |
| 34 | 0223202 | SPRING, COMPRES. | |
| 35 | 0343504 | PLUNGER | |
| 36 | 957366 | O-RING | |
| 37 | 0314205 | PLUG | |
| 38 | 0343611 | PLUG | |
| 39 | 4506418 | O-RING | |
| 40 | 0309805 | PLUG | |
| 41 | 4509180 | O-RING | |
| 42 | M491832 | SCREW, DRIVE | |
| 43 | NAME-PLATE | NAME-PLATE | |
| 44 | 0343514 | PLUG |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
