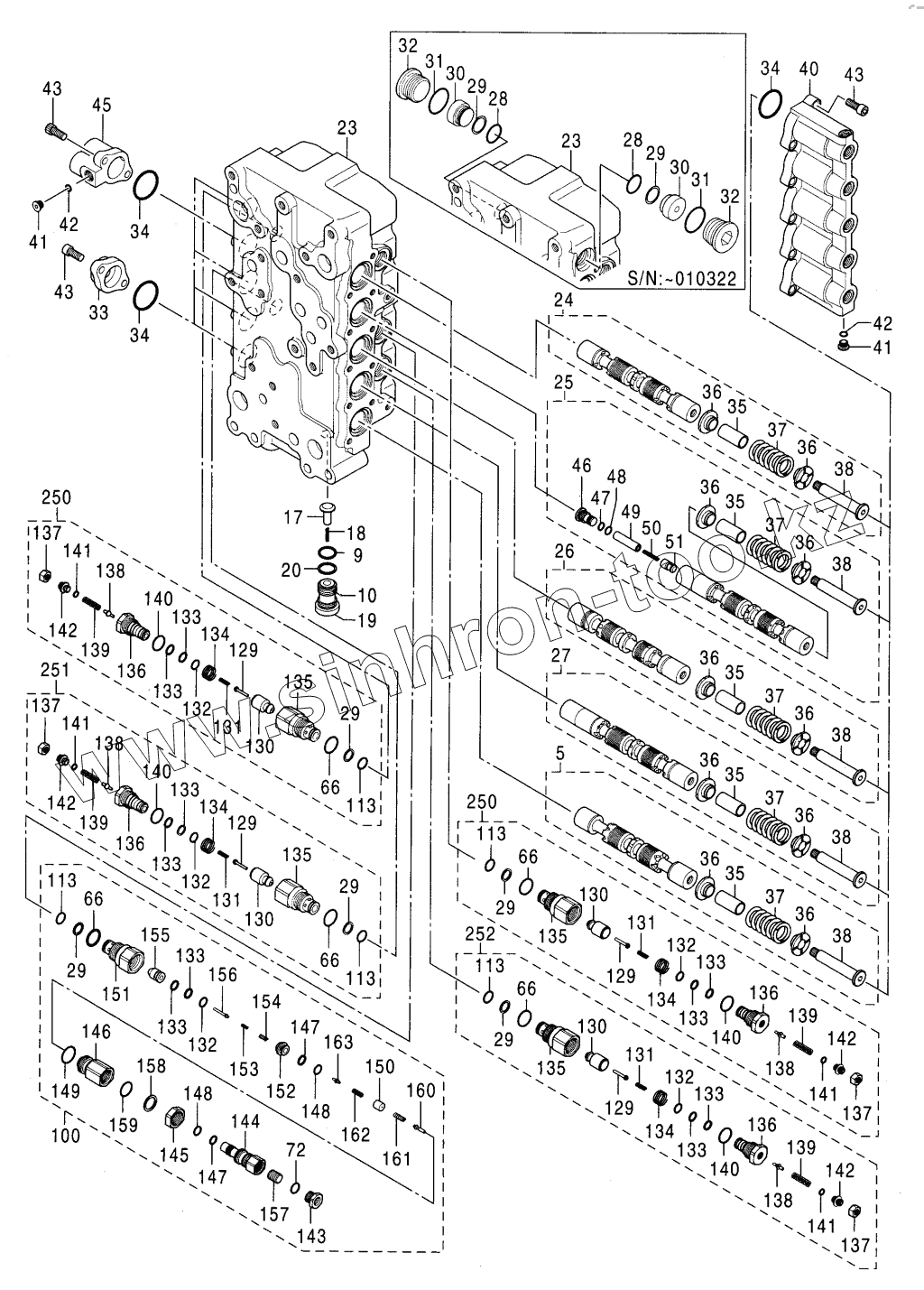

Каталог запасных частей к технике: Hitachi Компоненты ZX-450. VALVE,CONTROL (4/5)
4434686
5
9
10
17
18
19
20
23
23
24
25
26
27
28
28
29
29
29
29
29
29
29
29
30
30
31
31
32
32
33
34
34
34
35
35
35
35
35
36
36
36
36
36
36
36
36
36
36
37
37
37
37
37
38
38
38
38
38
40
41
41
42
42
43
43
43
45
46
47
48
49
50
51
66
66
66
66
66
72
100
113
113
113
113
113
129
129
129
129
130
130
130
130
131
131
131
131
132
132
132
132
132
133
133
133
133
133
133
133
133
133
133
134
134
134
134
135
135
135
135
136
136
136
136
137
137
137
137
138
138
138
138
139
139
139
139
140
140
140
140
141
141
141
141
142
142
142
142
143
144
145
146
147
147
148
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
250
250
251
252
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4434686 | 4434686 | VALVE, CONTROL | |
| 5 | 0818004 | PLUNGER | |
| 9 | 4088425 | O-RING | |
| 10 | 0189803 | CHIP | |
| 17 | 0622829 | CHECK | |
| 18 | 0622827 | SPRING | |
| 19 | 0622825 | CAP | |
| 20 | 0223104 | RING, BACK-UP | |
| 23 | HOUSING | HOUSING | |
| 24 | 0818301 | PLUNGER | |
| 25 | 0818302 | PLUNGER | |
| 26 | 0818303 | PLUNGER | |
| 27 | 0818304 | PLUNGER | |
| 28 | 4506420 | O-RING | |
| 29 | 4027959 | RING | |
| 29 | 4027959 | RING | |
| 30 | 0646203 | PLUG | |
| 31 | 0624703 | O-RING | |
| 32 | 0624702 | CAP | |
| 33 | 0622803 | COVER | |
| 34 | 0101616 | O-RING | |
| 35 | 0622805 | SLEEVE | |
| 36 | 0622806 | GUIDE | |
| 37 | 0622807 | SPIRNG | |
| 38 | 0622808 | CAP | |
| 40 | 0810704 | COVER | |
| 41 | 0622810 | CAP | |
| 42 | 957366 | O-RING | |
| 43 | M341230 | BOLT, SOCKET | |
| 45 | 0818005 | COVER | |
| 46 | 0622877 | CAP | |
| 47 | 0166805 | RING, BACK-UP | |
| 48 | 4506412 | O-RING | |
| 49 | 0622813 | SPACER | |
| 50 | 0159214 | SPRING | |
| 51 | 0622811 | CHECK | |
| 66 | 4153108 | O-RING | |
| 72 | 4153098 | O-RING | |
| 100 | 4469303 | VALVE, RELIEF | |
| 113 | 4153099 | O-RING | |
| 129 | 0809729 | PISTON | |
| 130 | 0809728 | POPPET | |
| 131 | 0809727 | SPRING | |
| 132 | 0809726 | O-RING | |
| 133 | 0809725 | RING, BACK-UP | |
| 134 | 0809724 | SPRING | |
| 135 | 0809723 | SLEEVE | |
| 136 | 0809722 | SEAT | |
| 137 | 0809721 | NUT | |
| 138 | 0809733 | POPPET | |
| 139 | 0809732 | SPRING | |
| 140 | 0809731 | O-RING | |
| 141 | 4153089 | O-RING | |
| 142 | 0809730 | SCREW | |
| 143 | 0810709 | CAP | |
| 144 | 0810710 | SLEEVE | |
| 145 | 0810711 | NUT | |
| 146 | 0810712 | SLEEVE | |
| 147 | 0810713 | RING, BACK-UP | |
| 148 | 0810714 | O-RING | |
| 149 | 0810715 | O-RING | |
| 150 | 0810716 | RETAINER | |
| 151 | 0810717 | SLEEVE | |
| 152 | 0810718 | SEAT | |
| 153 | 0810719 | SPRING | |
| 154 | 0810720 | SPRING | |
| 155 | 0810721 | POPPET | |
| 156 | 0810722 | PISTON | |
| 157 | 0810723 | PISTON | |
| 158 | 0810724 | RING, BACK-UP | |
| 159 | 0810725 | O-RING | |
| 160 | 0810726 | POPPET | |
| 161 | 0810727 | SPRING | |
| 162 | 0810728 | SPRING | |
| 163 | 0810729 | POPPET | |
| 250 | 4469298 | VALVE, RELIEF | |
| 251 | 4469301 | VALVE, RELIEF | |
| 252 | 4469302 | VALVE, RELIEF |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
