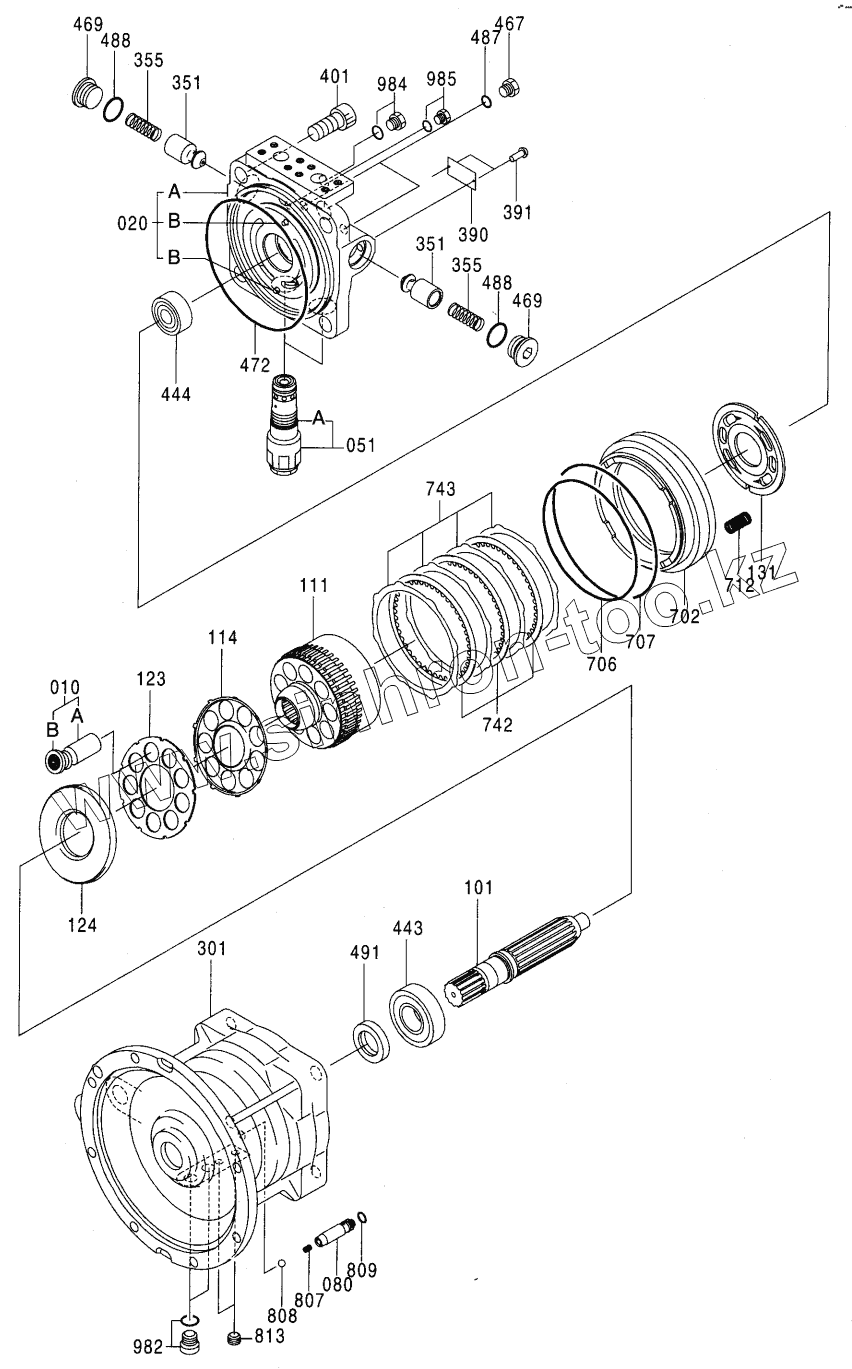

Каталог запасных частей к технике: Hitachi Компоненты ZX-450. MOTOR,OIL (SWING)
4423009
PISTON
SHOE
A811030
CASING
PIN
PIN
10
20
51
80
101
111
114
123
124
131
301
351
351
355
355
390
391
401
443
444
467
469
469
472
487
488
488
491
702
706
707
712
742
743
807
808
809
813
982
984
985
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4423009 | 4423009 | MOTOR, OIL | |
| PISTON | PISTON | PISTON | |
| SHOE | SHOE | SHOE | |
| A811030 | A811030 | O-RING | |
| CASING | CASING | CASING | |
| PIN | PIN | PIN | |
| 10 | 0788801 | PISTON ASS'Y | |
| 20 | 0788802 | CASING ASS'Y | |
| 51 | 4469527 | VALVE, RELIEF | |
| 80 | 0788803 | PLUNGER | |
| 101 | 0788804 | SHAFT | |
| 111 | 0788805 | CYLINDER | |
| 114 | 0788806 | SPRING, PLATE | |
| 123 | 0788807 | RETAINER | |
| 124 | 0788808 | PLATE | |
| 131 | 0788809 | PLATE, VALVE | |
| 301 | 0788810 | CASING | |
| 351 | 0409215 | PLUNGER | |
| 355 | 0409216 | SPRING | |
| 390 | 0625508 | NAME-PLATE | |
| 391 | 0625509 | PIN | |
| 401 | 0365318 | BOLT, SOCKET | |
| 443 | 0788811 | BRG. , ROL | |
| 444 | 0788812 | BRG. , ROL | |
| 467 | 0629404 | PLUG | |
| 469 | 0692708 | PLUG | |
| 472 | 0425115 | O-RING | |
| 487 | 957366 | O-RING | |
| 488 | 4506428 | O-RING | |
| 491 | 0788813 | SEAL, OIL | |
| 702 | 0788814 | PISTON | |
| 706 | 0353321 | O-RING | |
| 707 | 0425117 | O-RING | |
| 712 | 0788815 | SPRING, BRAKE | |
| 742 | 0788816 | PLATE, FRICTION | |
| 743 | 0788817 | PLATE | |
| 807 | 0788818 | SPRING | |
| 808 | 0221509 | BALL, STEEL | |
| 809 | 4506407 | O-RING | |
| 813 | 0263019 | PLUG | |
| 982 | 0628705 | PLUG | |
| 984 | 0694825 | PLUG | |
| 985 | 0788819 | PLUG |
