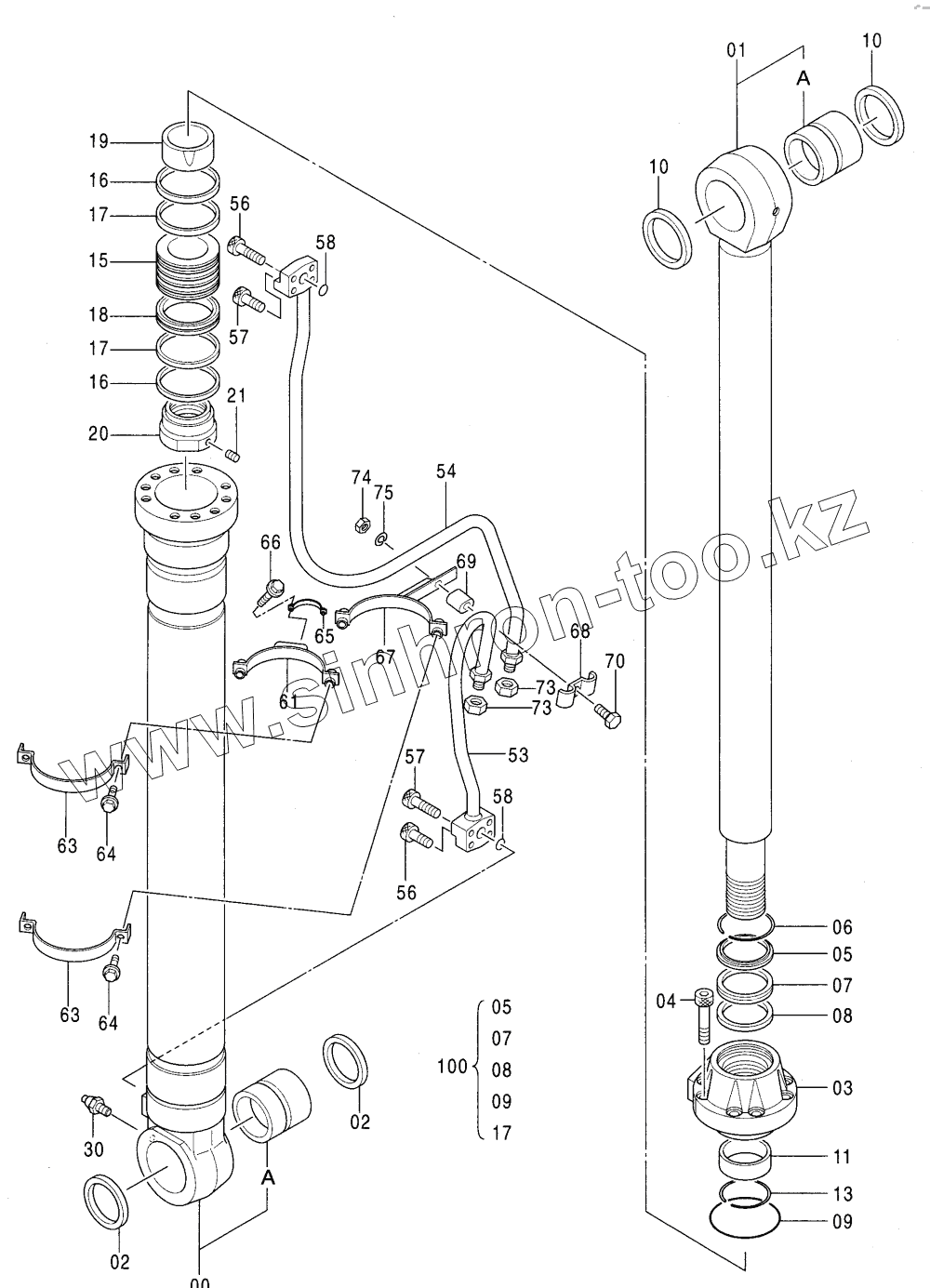

Каталог запасных частей к технике: Hitachi Компоненты ZX-450. CYL.,BOOM (L) (BACKHOE)
9187754
9174340
3083925
3083938
7035471
7038394
1
2
2
3
4
5
5
6
7
7
8
8
9
9
10
10
11
13
15
16
16
17
17
17
18
19
20
21
30
53
54
56
56
57
57
58
58
61
61
63
63
63
64
64
65
66
67
67
68
69
70
73
73
74
75
100
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9187754 | 9187754 | CYL., BOOM | |
| 9174340 | 9174340 | CYL., BOOM | |
| 3083925 | 3083925 | BUSHING | |
| 3083938 | 3083938 | BUSHING | |
| 7035471 | 7035471 | TUBE, CYL. | |
| 7038394 | 7038394 | TUBE, CYL | |
| 1 | 7035476 | ROD, PISTON | |
| 2 | 4411612 | SEAL, DUST | |
| 3 | 1025101 | HEAD, CYL. | |
| 4 | M342700 | BOLT, SOCKET | |
| 5 | 4370927 | SEAL, DUST | |
| 6 | 4370058 | RING, RETAINING | |
| 7 | 4411659 | SEAL | |
| 8 | 4411656 | RING | |
| 9 | 4393350 | O-RING | |
| 10 | 4411613 | SEAL, DUST | |
| 11 | 4370337 | BUSHING | |
| 13 | 4372816 | RING, RETAINING | |
| 15 | 3080654 | PISTON | |
| 16 | 4370063 | RING, TEFLON | |
| 17 | 4370064 | RING, WEAR | |
| 18 | 4370062 | RING, SEAL | |
| 19 | 2044681 | RING, CUSHION | |
| 20 | 3062096 | NUT | |
| 21 | 4201806 | SCREW, SET | |
| 30 | J75482 | FITTING, GREASE | |
| 53 | 8074373 | PIPE | |
| 54 | 8074374 | PIPE | |
| 56 | M341245 | BOLT, SOCKET | |
| 57 | M341260 | BOLT, SOCKET | |
| 58 | A811035 | O-RING | |
| 61 | 8068103 | CLAMP | |
| 61 | 8079073 | CLAMP | |
| 63 | 3080222 | CLAMP | |
| 63 | 3088474 | CLAMP | |
| 64 | J011035 | BOLT, SEMS | |
| 65 | 4174241 | CLAMP, PIPE | |
| 66 | J011025 | BOLT, SEMS | |
| 67 | 8074370 | CLAMP | |
| 67 | 8080074 | CLAMP | |
| 68 | 4229234 | CLAMP, PIPE | |
| 69 | 4410980 | SPACER | |
| 70 | J901265 | BOLT | |
| 73 | 4260204 | CAP | |
| 74 | J950012 | NUT | |
| 75 | A590912 | WASHER, SPRING | |
| 100 | 9180582 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
