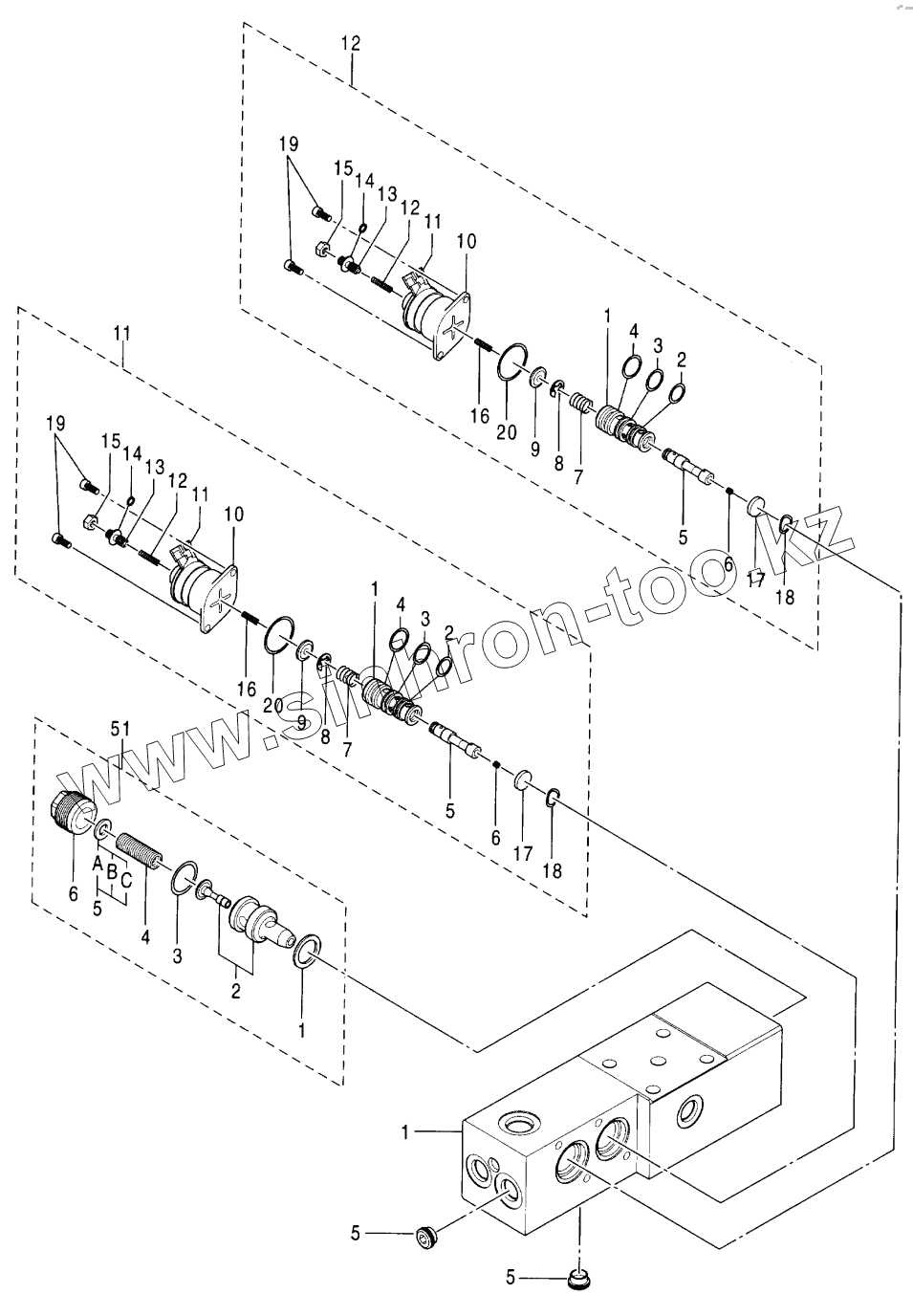

Каталог запасных частей к технике: Hitachi Компоненты ZX-330. VALVE, SOLENOID
4445490
4309836
4309837
4309838
1
2
3
4
5
5
21
22
23
24
25
26
27
28
29
31
32
33
34
35
36
37
38
39
41
42
43
44
45
46
210
211
212
213
214
215
216
217
218
219
220
310
311
312
313
314
315
316
317
318
319
320
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4445490 | 4445490 | VАLVЕ, SОLЕNОID | |
| 4309836 | 4309836 | SHIM 0.25 | |
| 4309837 | 4309837 | SHIM 0.5 | |
| 4309838 | 4309838 | SHIM 1.0 | |
| 1 | HOUSING | HOUSING | |
| 2 | 4457822 | VALVE | |
| 3 | 4462950 | VALVE | |
| 4 | 0709701 | VAVVE, RELIEF | |
| 5 | 4455986 | PLUG | |
| 21 | SLEEVE | SLEEVE | |
| 22 | 0408409 | O-RING | |
| 23 | 0408410 | O-RING | |
| 24 | 0408411 | O-RING | |
| 25 | SPOOL | SPOOL | |
| 26 | ORIFICE | ORIFICE | |
| 27 | SPRING | SPRING | |
| 28 | RING | RING | |
| 29 | DIAPHRAGM | DIAPHRAGM | |
| 31 | SLEEVE | SLEEVE | |
| 32 | 0408409 | O-RING | |
| 33 | 0408410 | O-RING | |
| 34 | 0408411 | O-RING | |
| 35 | SPOOL | SPOOL | |
| 36 | ORIFICE | ORIFICE | |
| 37 | SPRING | SPRING | |
| 38 | RING | RING | |
| 39 | DIAPHRAGM | DIAPHRAGM | |
| 41 | 0308704 | GASKET | |
| 42 | 0308703 | VALVE ASS'Y | |
| 43 | 0308705 | O-RING | |
| 44 | SPRING | SPRING | |
| 45 | 4293211 | SHIM, SET | |
| 46 | 0308709 | PLUG | |
| 210 | SOLENOID | SOLENOID | |
| 211 | SOCKET | SOCKET | |
| 212 | SPRING | SPRING | |
| 213 | SCREW | SCREW | |
| 214 | O-RING | O-RING | |
| 215 | NUT | NUT | |
| 216 | SPRING | SPRING | |
| 217 | PLATE | PLATE | |
| 218 | 4455990 | WASHER | |
| 219 | 0387804 | BOLT, SOCKET | |
| 220 | 4455989 | O-RING | |
| 310 | SOLENOID | SOLENOID | |
| 311 | SOCKET | SOCKET | |
| 312 | SPRING | SPRING | |
| 313 | SCREW | SCREW | |
| 314 | O-RING | O-RING | |
| 315 | NUT | NUT | |
| 316 | SPRING | SPRING | |
| 317 | PLATE | PLATE | |
| 318 | 4455990 | WASHER | |
| 319 | 0387804 | BOLT, SOCKET | |
| 320 | 4455989 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
